Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mmm
Suspension Fork
FOX 34 Float Rhythm 29, E-Bike, Grip Remote, 110x15 mm, 51 mm rake, 130 mm travel
Rear Shock
FOX Float DPS Performance, 3-position lever, 190/45 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
FSA CK-320, aluminium
Bottom Bracket
-
Chain
Shimano SLX CN-M7100
Wheels
Rims
DT Swiss H1900, 622-30, 148x12 mm / 110x15 mm
Tires
Maxxis Rekon 2.6 3C EXO TR
Brakes
Brakes
Shimano BR-MT520, 4 piston
Brake Levers
Shimano BR-MT520
Cockpit
Stem
BBB Jumper BHS-137, 31.8mm
Handlebar
BBB Ascension BHB-110, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree
Grips
FOCUS Ergo Comfort
Headset
VP Components, ZS56/28,6-ZS56/40
Seat
Saddle
Proxim W450
Seatpost
Kind Shock E30i, 31,6mm
Motor & Battery
Motor
Bosch Performance CX Gen4, 75 Nm, 250 W
Battery
625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.45 mm | 1.42 mm | 1.391 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 722 mm | 742 mm | 769 mm | 795 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 609.7 mm | 623.5 mm | 639.1 mm | 653.8 mm |
| Reach | 415 mm | 430 mm | 450 mm | 470 mm |
| Top Tube Length | 584 mm | 603 mm | 627 mm | 651 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 115 mm | 130 mm | 147 mm | 163 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1175 mm | 1196 mm | 1223 mm | 1249 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

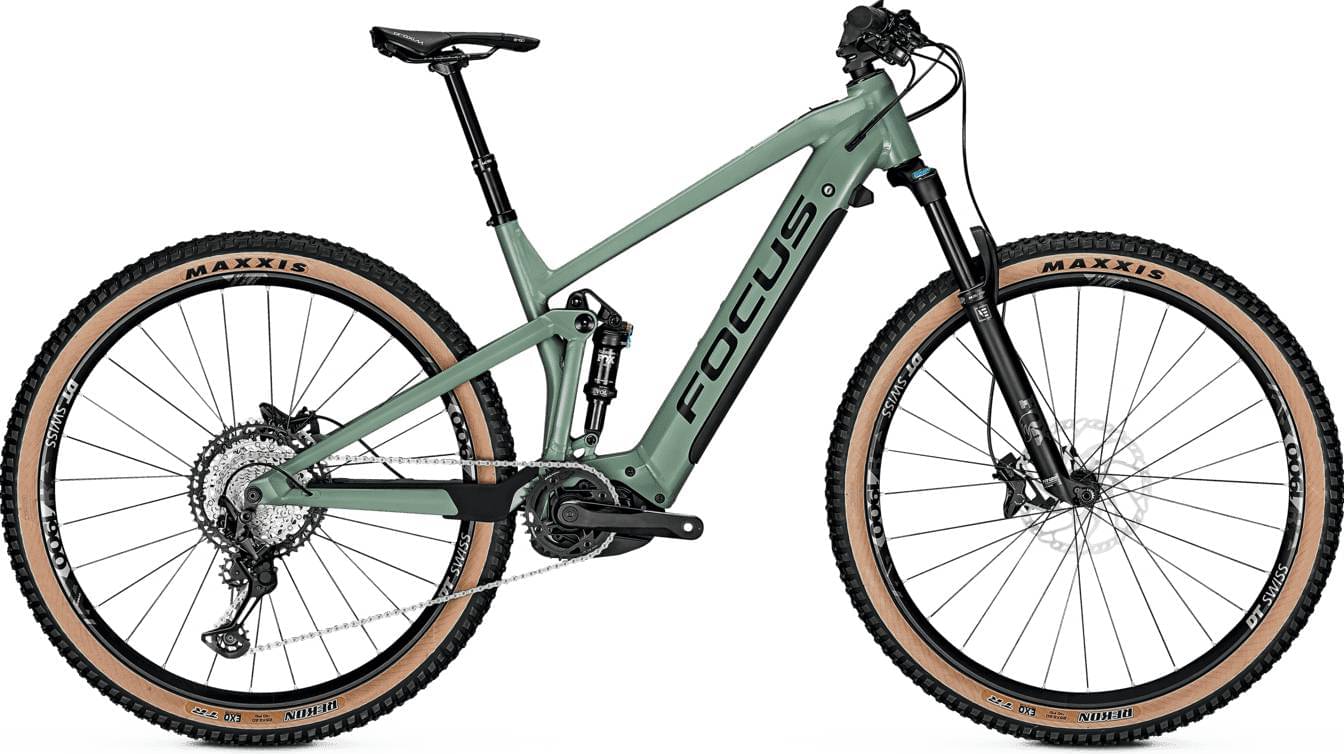

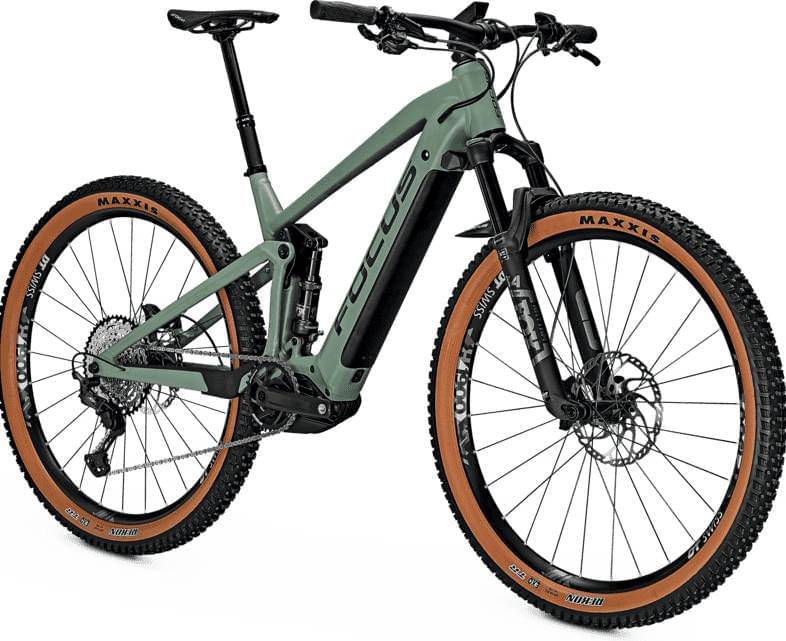

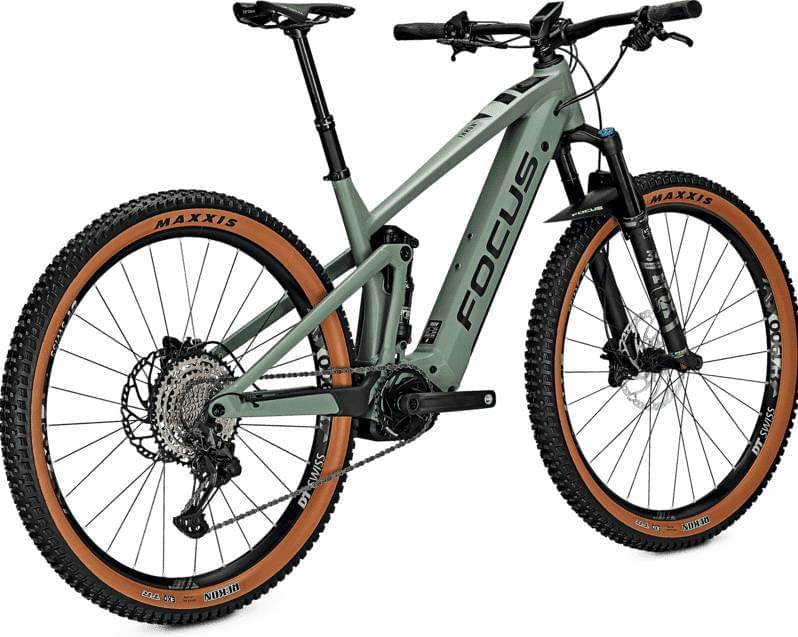

THRON² 6.9 is a Focus E Thron2 model. 20 e-bikes variations carry this model name so far. You can easily view all of the Focus E Thron2 e-bikes models from 2020, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 23.5 kg (51.81 lbs), Focus e-bike is slightly lighter than average. In conclusion, the average Trail e-bike weighs 0.85% more than THRON² 6.9.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
THRON² 6.9 components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Focus THRON² 6.9 e-bike has the FOX Float DPS Performance model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the THRON² 6.9 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The THRON² 6.9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
THRON² 6.9 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
