Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 250W mid-drive -
Battery 252 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, BSA BB, international disc brake standard
Suspension Fork
SR Suntour XCM RL, 9 mm QR, coil spring, remote, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, 9-speed
Shift Levers
Shimano Altus 2000
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Rodi Viper 21, 27,5" 584-21, 29" 662-21, Shimano Deore, 9 mm QR / 9 mm QR
Tires
Continental Race King 2.2 SL
Brakes
Brakes
Shimano M315, 180 mm / 160 mm
Cockpit
Stem
aluminium, 31,8 mm, 80 mm
Handlebar
aluminium, riserbar, 700mm
Seat
Seatpost
aluminium, 27,2mm
Motor & Battery
Motor
Groove Next, 250 W
Battery
252 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.58 mm | 1.57 mm | 1.57 mm |
| Bottom Bracket Height | 326 mm | 326 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 634 mm | 648 mm | 10582 mm | 688 mm | 704 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 99 mm | 99 mm | -9833 mm | 87 mm | 88 mm |
| Stack | 599 mm | 608 mm | 634 mm | 653 mm | 672 mm |
| Reach | 372 mm | 382 mm | 401 mm | 417 mm | 427 mm |
| Top Tube Length | 550 mm | 563 mm | 584 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1075 mm | 1089 mm | mm | 1126 mm | 1142 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

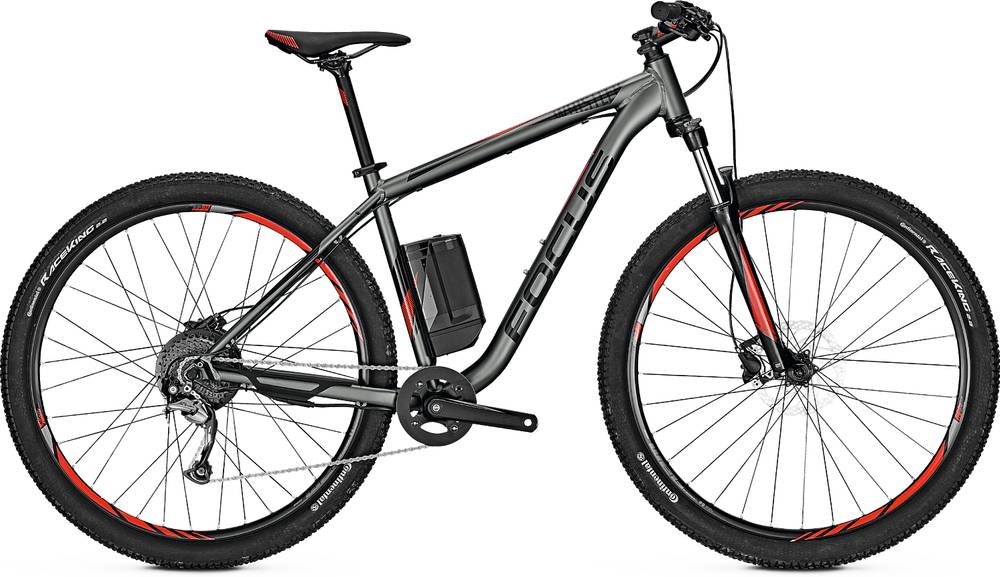

WHISTLER² completes the Focus E Whistler model. There are 5 e-bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
WHISTLER² components
Fork
Focus WHISTLER² 2018 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Focus WHISTLER² 2018, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The WHISTLER² has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
WHISTLER² comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
