Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 250W 32Nm mid-drive -
Battery 252 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, removable battery, internal cable routing, International standard disc brake mount, kickstand mount
Suspension Fork
SR Suntour XCM RL, 9 mm QR, coil spring, remote, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, 9-speed
Shift Levers
Shimano Altus M2000
Cassette
Shimano HG200, 11-36T
Crank
Samox AF38, 34T
Bottom Bracket
Groove Next with Torque / RPM Sensor, 120x68 mm
Chain
KMC X9
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
BAFANG - KEINE C512-118 138 NUT
Rims
Rodi Viper 21
Tires
Schwalbe Smart Sam 2.1
Brakes
Brakes
Shimano BR-MT200, hydraulic disc
Brake Levers
Shimano MT200
Cockpit
Stem
aluminium, 31.8mm
Handlebar
Riser, Aluminium, 720mm
Grips
Velo VLG-975
Headset
VP Components
Seat
Saddle
FOCUS Sport Saddle
Seatpost
aluminium, 27,2mm
Motor & Battery
Motor
Groove Next, 36 V / 250W / 32 Nm
Battery
252 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.613 mm | 1.556 mm | 1.527 mm | 1.503 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 649 mm | 672 mm | 699 mm | 727 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 98 mm | 98 mm | 98 mm |
| Stack | 621 mm | 630 mm | 649 mm | 669 mm |
| Reach | 385 mm | 405 mm | 425 mm | 445 mm |
| Top Tube Length | 563 mm | 586 mm | 611 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1120 mm | 1147 mm | 1175 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

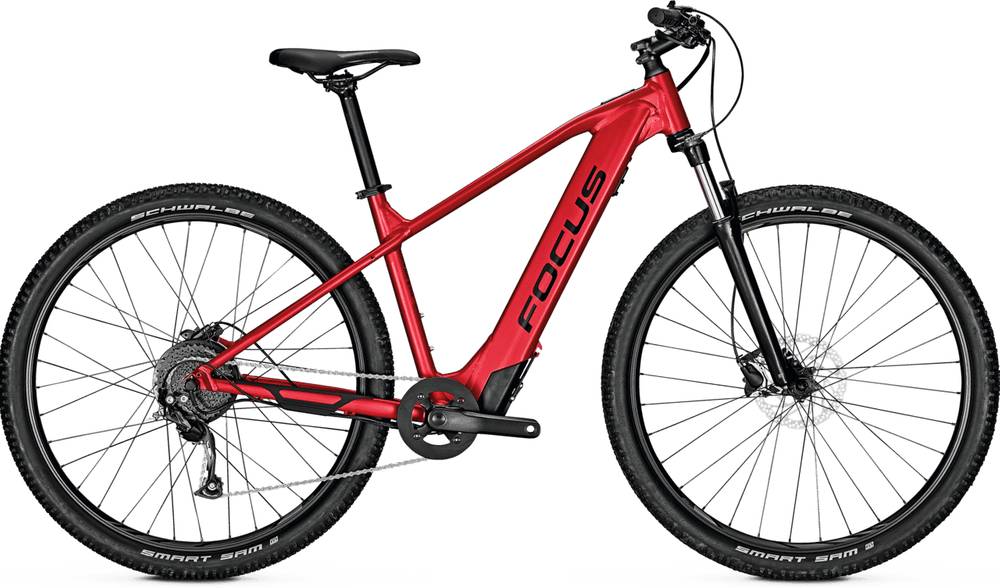

WHISTLER² 6.9 is a Focus E Whistler model. Focus launched 5 e-bikes of this model so far. You can easily view all of the Focus E Whistler e-bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
WHISTLER² 6.9 weighs 21.8 kg (48.06 lbs) and is a bit lighter than the average. In conclusion, the average Crosscountry e-bike weighs 6.47% more than WHISTLER² 6.9.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
WHISTLER² 6.9 components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on WHISTLER² 6.9 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus WHISTLER² 6.9 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Focus WHISTLER² 6.9 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
