Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 250W 32Nm mid-drive -
Battery 252 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, removable battery, internal cable routing, International standard disc brake mount, kickstand mount
Suspension Fork
SR Suntour XCM ATB, 9 mm QR, coil spring, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, 9-speed
Shift Levers
Shimano Altus M2000
Cassette
Shimano HG200, 11-36T
Crank
Samox AF38, 34T
Bottom Bracket
Groove Next with Torque / RPM Sensor, 120x68 mm
Chain
KMC X9
Wheels
Front Hub
Shimano DH-3D37 hub dynamo, QR
Rear Hub
BAFANG - KEINE C512-118 138 NUT
Rims
Rodi Viper 21
Tires
Schwalbe Smart Sam 2.1
Brakes
Brakes
Shimano BR-MT200, hydraulic disc
Brake Levers
Shimano MT200
Cockpit
Stem
aluminium, 31.8mm
Handlebar
Riser, Aluminium, 720mm
Grips
Velo VLG-975
Headset
VP Components
Seat
Saddle
FOCUS Sport Saddle
Seatpost
aluminium, 27,2mm
Motor & Battery
Motor
Groove Next, 36 V / 250W / 32 Nm
Battery
252 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.613 mm | 1.556 mm | 1.527 mm | 1.503 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 649 mm | 672 mm | 699 mm | 727 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 98 mm | 98 mm | 98 mm |
| Stack | 621 mm | 630 mm | 649 mm | 669 mm |
| Reach | 385 mm | 405 mm | 425 mm | 445 mm |
| Top Tube Length | 563 mm | 586 mm | 611 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1120 mm | 1147 mm | 1175 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

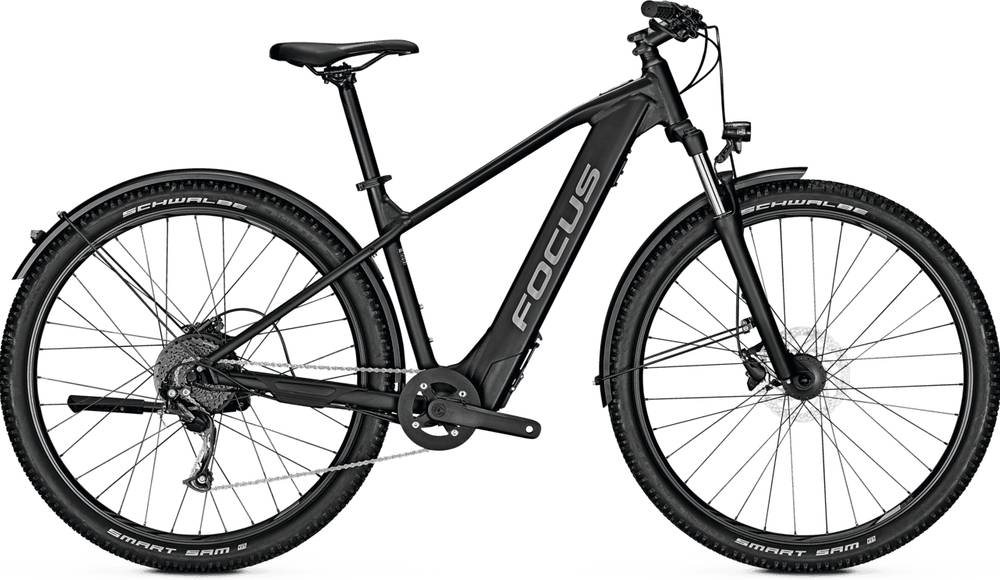

WHISTLER² 6.9 EQP belongs to the Focus E Whistler model. Focus released 5 e-bikes variations of this model so far. You can easily view all of the Focus E Whistler e-bikes models from 2020, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 23.8 kg (52.47 lbs), Focus e-bike is slightly heavier than average. In conclusion, the average Crosscountry e-bike weighs 2.54% less than WHISTLER² 6.9 EQP.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the WHISTLER² 6.9 EQP model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus WHISTLER² 6.9 EQP is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Focus WHISTLER² 6.9 EQP e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
