Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, BSA BB, international disc brake standard
Suspension Fork
SR Suntour XCT DS, 9 mm QR, coil spring, 100 mm travel
Drivetrain
Rear Derailleur
Shimano TX800, 8-speed
Shift Levers
Shimano ST-EF510
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Rodi Viper 21, 27" 584-21, 29" 622-21, Shimano DH3D37/ Shimano TX-505 CL, 9 mm QR / 9 mm QR
Tires
Impac Ridgepac 2.1
Brakes
Brakes
Shimano BR-M375, 160 mm / 160 mm
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, riserbar, 700mm
Seat
Seatpost
aluminium, 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.6 mm | 1.58 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 326 mm | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 635 mm | 735 mm | 672 mm | 694 mm | 711 mm |
| Rake | 42 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 5 mm | 82 mm | 82 mm | 82 mm |
| Stack | 598 mm | 623 mm | 632 mm | 651 mm | 670 mm |
| Reach | 369 mm | 389 mm | 399 mm | 414 mm | 424 mm |
| Top Tube Length | 548 mm | 569 mm | 582 mm | 602 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 442 mm | 458 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1073 mm | 1186 mm | 1113 mm | 1135 mm | 1152 mm |
| Bottom Bracket Drop | 48 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

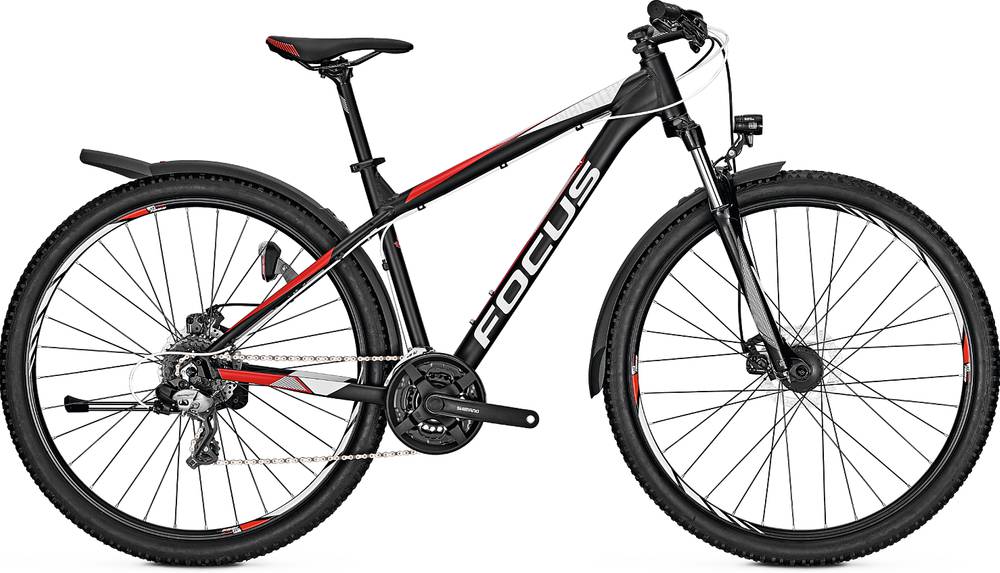

WHISTLER Core Equipped belongs to the Focus Whistler model. Focus released 34 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
Focus WHISTLER Core Equipped 2018 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The WHISTLER Core Equipped 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The WHISTLER Core Equipped has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
