Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, BSA BB, international disc brake standard
Suspension Fork
RockShox 30, PopLoc remote, 100x9 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 785, 10-speed
Shift Levers
Shimano Deore M6000
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Rodi Viper 21, 27" 584-21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Tires
Continental Race King 2.2
Brakes
Brakes
Shimano BR-M315, 180 mm / 160 mm
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, riserbar, 700mm
Seat
Seatpost
aluminium, 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.6 mm | 1.58 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 326 mm | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 635 mm | 735 mm | 672 mm | 694 mm | 711 mm |
| Rake | 42 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 5 mm | 82 mm | 82 mm | 82 mm |
| Stack | 598 mm | 623 mm | 632 mm | 651 mm | 670 mm |
| Reach | 369 mm | 389 mm | 399 mm | 414 mm | 424 mm |
| Top Tube Length | 548 mm | 569 mm | 582 mm | 602 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 442 mm | 458 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1073 mm | 1186 mm | 1113 mm | 1135 mm | 1152 mm |
| Bottom Bracket Drop | 48 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

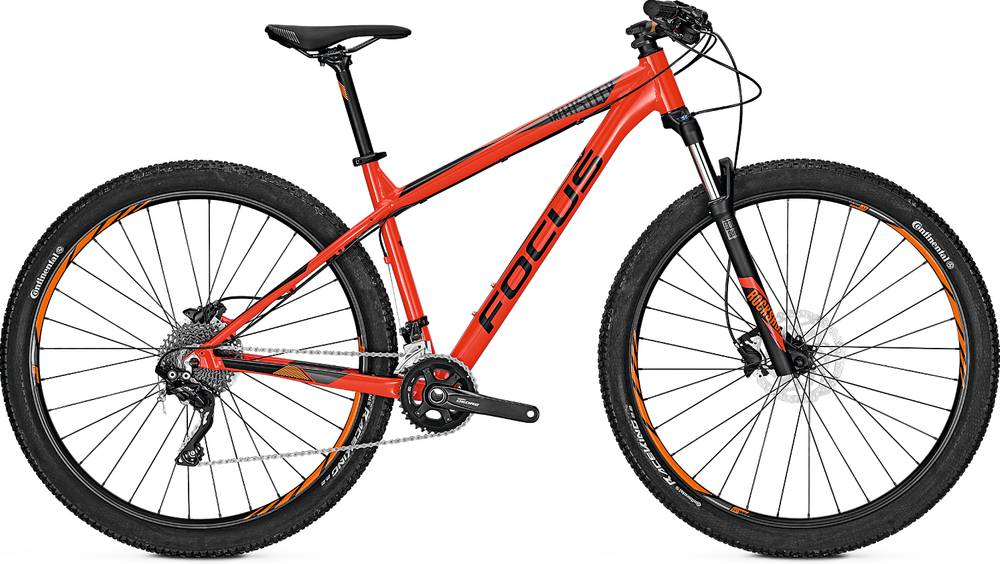

WHISTLER Lite completes the Focus Whistler model. Focus released 34 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
WHISTLER Lite components
Fork
This bike has the RockShox 30 Silver TK fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the WHISTLER Lite model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The WHISTLER Lite has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
WHISTLER Lite comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
