Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, SLX -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, BSA BB, international disc brake standard
Suspension Fork
RockShox 30 Gold RL, OneLoc remote, 100x9 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Rodi Viper 21, 27" 584-21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Tires
Continental Race King 2.2
Brakes
Brakes
Shimano BR-M315, 180 mm / 160 mm
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, riserbar, 700mm
Seat
Seatpost
aluminium, 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.6 mm | 1.58 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 326 mm | 326 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 635 mm | 648 mm | 672 mm | 694 mm | 711 mm |
| Rake | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 82 mm | 82 mm | 82 mm |
| Stack | 598 mm | 607.6 mm | 632 mm | 651 mm | 670 mm |
| Reach | 369 mm | 379 mm | 399 mm | 414 mm | 424 mm |
| Top Tube Length | 548 mm | 560.8 mm | 582 mm | 602 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 130 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 442 mm | 432 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1073 mm | 1076 mm | 1113 mm | 1135 mm | 1152 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

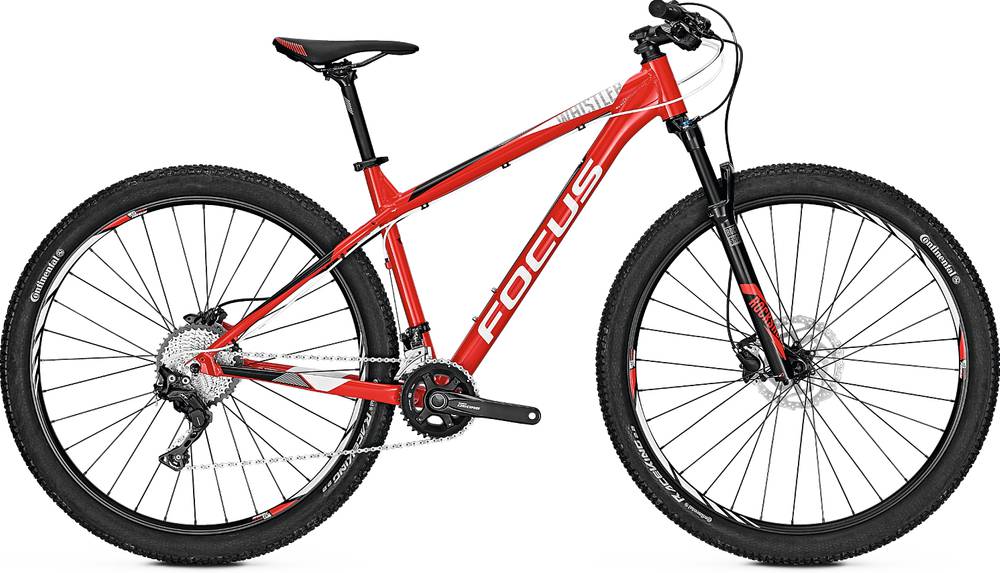

WHISTLER SL is part of the Focus Whistler model. 34 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
WHISTLER SL components
Fork
The RockShox 30 Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Focus WHISTLER SL 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
