Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 250W hub-drive -
Battery 252 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, BSA BB, international disc brake standard
Suspension Fork
SR Suntour XCM RL, 9 mm QR, coil spring, remote, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, 9-speed
Shift Levers
Shimano Altus 2000
Crank
1x
Bottom Bracket
BSA, threaded
Wheels
Rims
Rodi Viper 21, 27,5" 584-21, 29" 662-21, Shimano Deore, 9 mm QR / 9 mm QR
Tires
Continental Race King 2.2 SL
Brakes
Brakes
Shimano M315, 180 mm / 160 mm
Cockpit
Stem
aluminium, 31,8 mm, 80 mm
Handlebar
aluminium, riserbar, 700mm
Seat
Seatpost
aluminium, 27,2mm
Motor & Battery
Motor
Groove Next, 250 W
Battery
252 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.58 mm | 1.57 mm | 1.57 mm |
| Front Center | 634 mm | 648 mm | 10582 mm | 688 mm | 704 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 89 mm | -9842 mm | 78 mm | 79 mm |
| Stack | 599 mm | 608 mm | 634 mm | 653 mm | 672 mm |
| Reach | 372 mm | 382 mm | 401 mm | 417 mm | 427 mm |
| Top Tube Length | 550 mm | 563 mm | 584 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1075 mm | 1089 mm | mm | 1126 mm | 1142 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

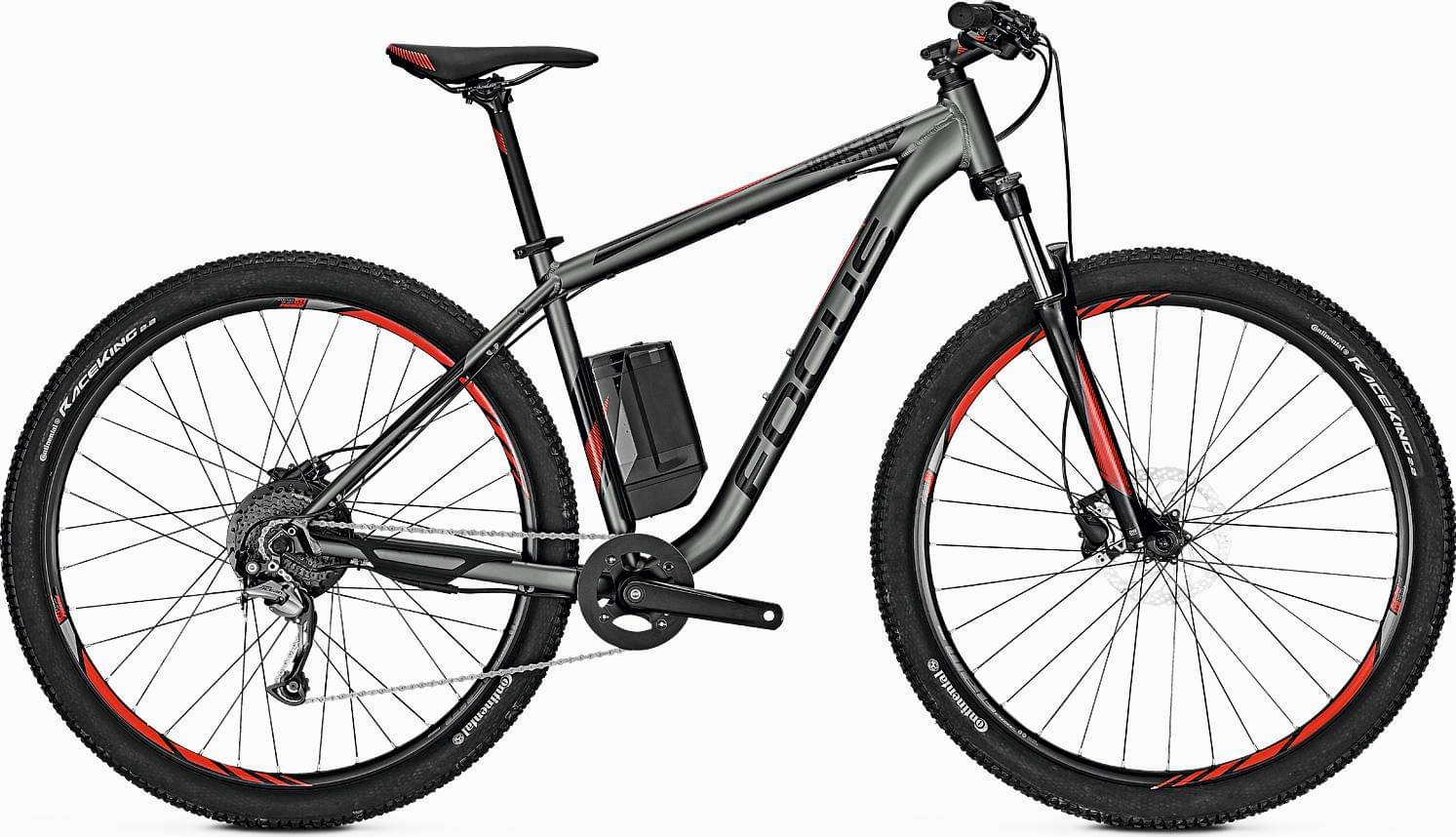

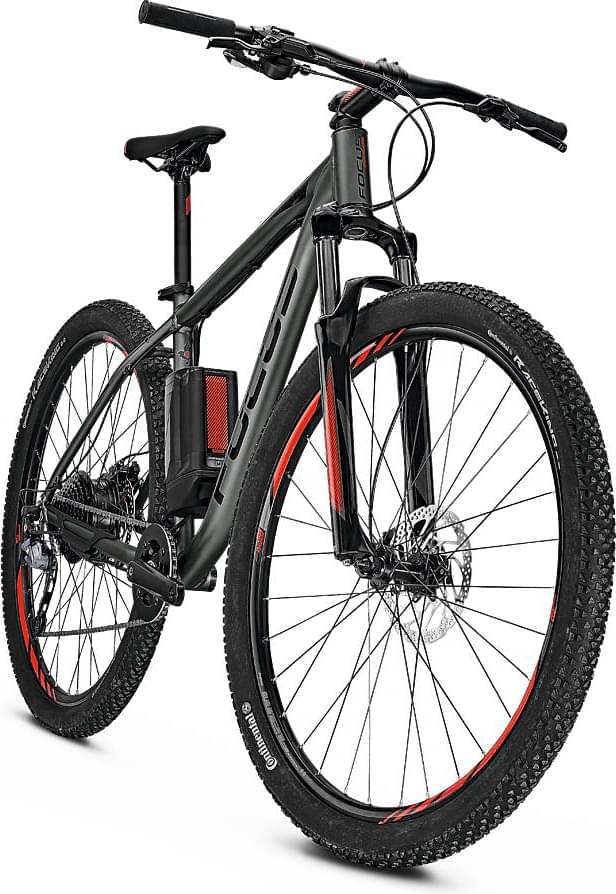

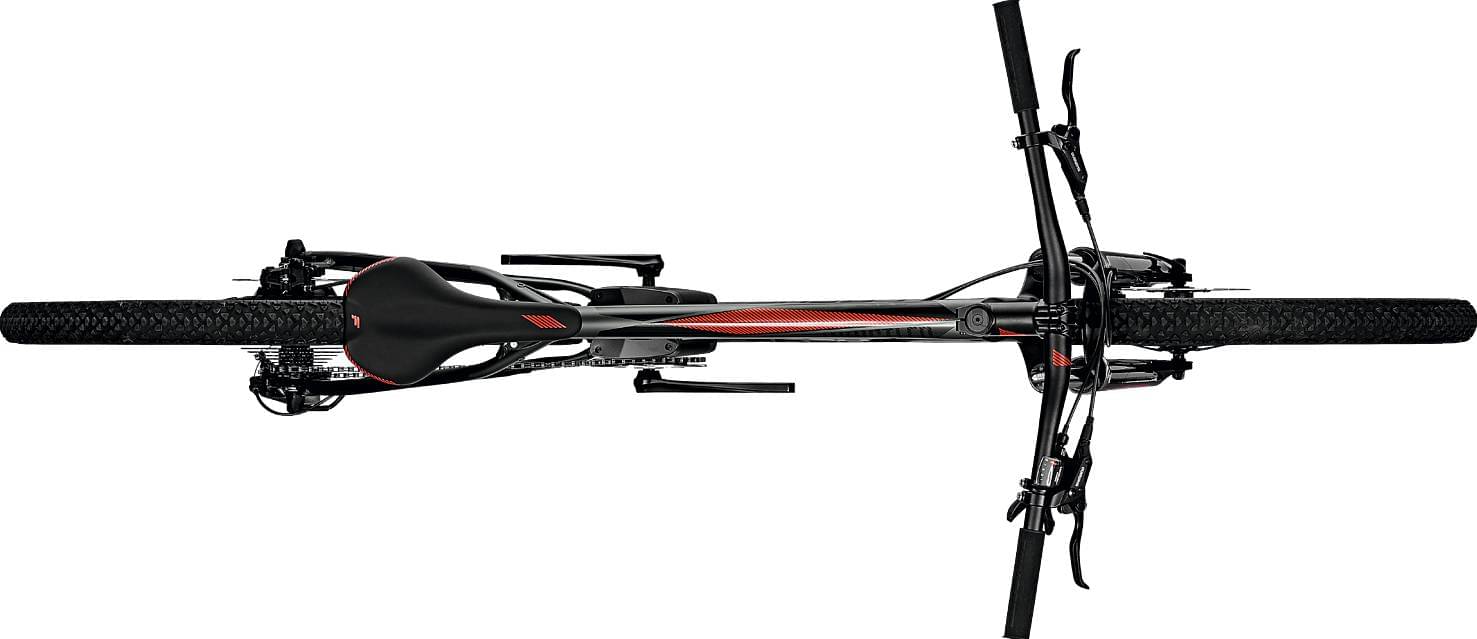

WHISTLER² completes the Focus E Whistler2 model. Focus released 5 e-bikes variations of this model so far. You can easily view all of the Focus E Whistler2 e-bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
WHISTLER² components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on WHISTLER² are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus WHISTLER² is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
WHISTLER² comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
