Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 250W 32Nm hub-drive -
Battery 252 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, removable battery, internal cable routing, International standard disc brake mount, kickstand mount
Suspension Fork
SR Suntour XCM RL, 9 mm QR, coil spring, remote, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Altus M2000, 9-speed
Shift Levers
Shimano Altus M2000
Cassette
Shimano HG200, 11-36T
Crank
Samox AF38, 34T
Bottom Bracket
Groove Next with Torque / RPM Sensor, 120x68 mm
Chain
KMC X9
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
BAFANG - KEINE C512-118 138 NUT
Rims
Rodi Viper 21
Tires
Schwalbe Smart Sam 2.1
Brakes
Brakes
Shimano BR-MT200, hydraulic disc
Brake Levers
Shimano MT200
Cockpit
Stem
aluminium, 31.8mm
Handlebar
Riser, Aluminium, 720mm
Grips
Velo VLG-975
Headset
VP Components
Seat
Saddle
FOCUS Sport Saddle
Seatpost
aluminium, 27,2mm
Motor & Battery
Motor
Groove Next, 36 V / 250W / 32 Nm
Battery
252 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.613 mm | 1.556 mm | 1.527 mm | 1.503 mm |
| Front Center | 649 mm | 672 mm | 699 mm | 727 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 88 mm | 88 mm | 88 mm |
| Stack | 621 mm | 630 mm | 649 mm | 669 mm |
| Reach | 385 mm | 405 mm | 425 mm | 445 mm |
| Top Tube Length | 563 mm | 586 mm | 611 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1120 mm | 1147 mm | 1175 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

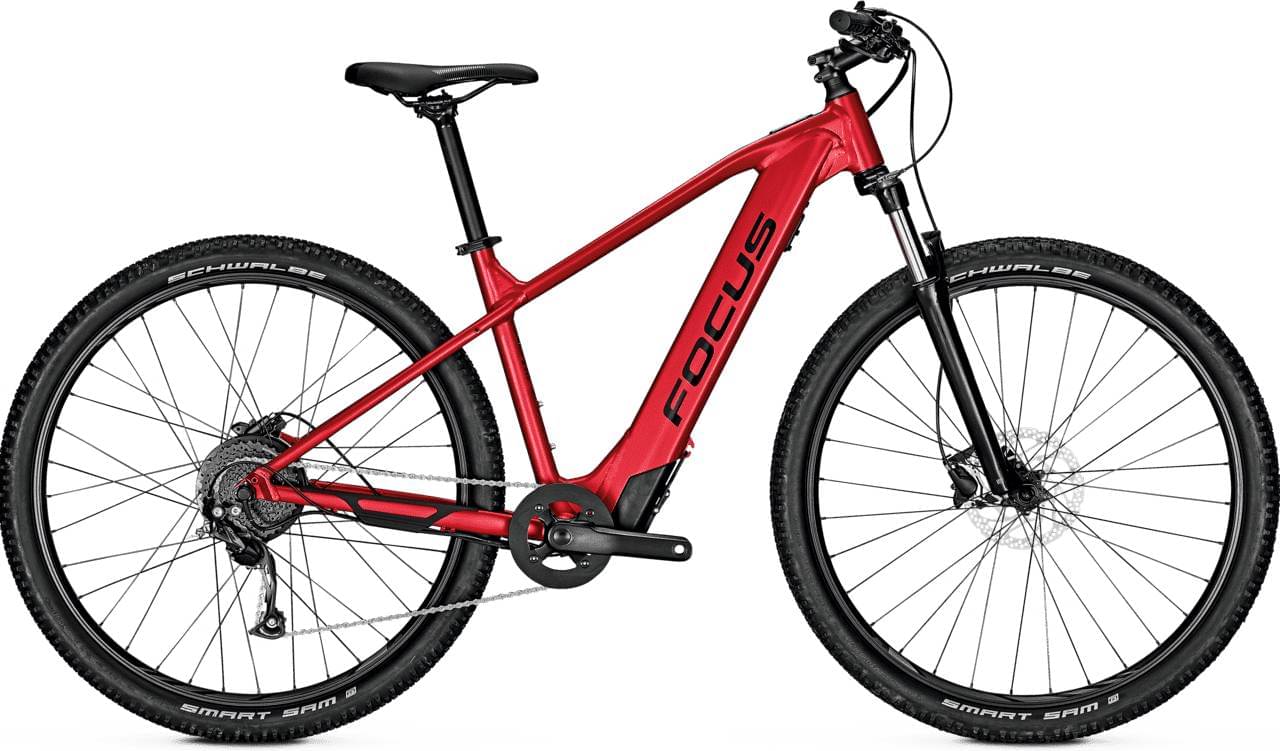

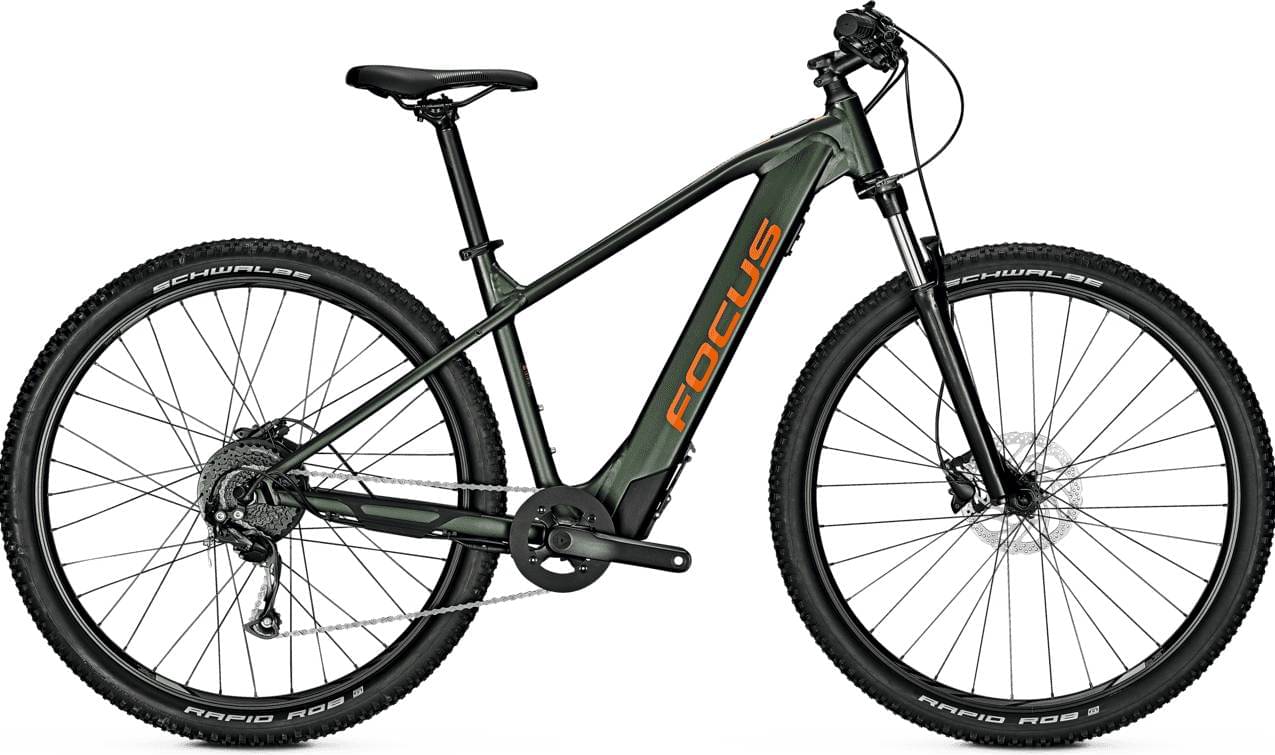

WHISTLER² 6.9 is part of the Focus E Whistler2 model. Focus released 5 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Focus WHISTLER² 6.9 it’s weighing 21.8 kg (48.06 lbs). At this weight, is a bit lighter than average. In short, the average Hybrid e-bike weight is 9.13% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the WHISTLER² 6.9 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus WHISTLER² 6.9 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
WHISTLER² 6.9 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
