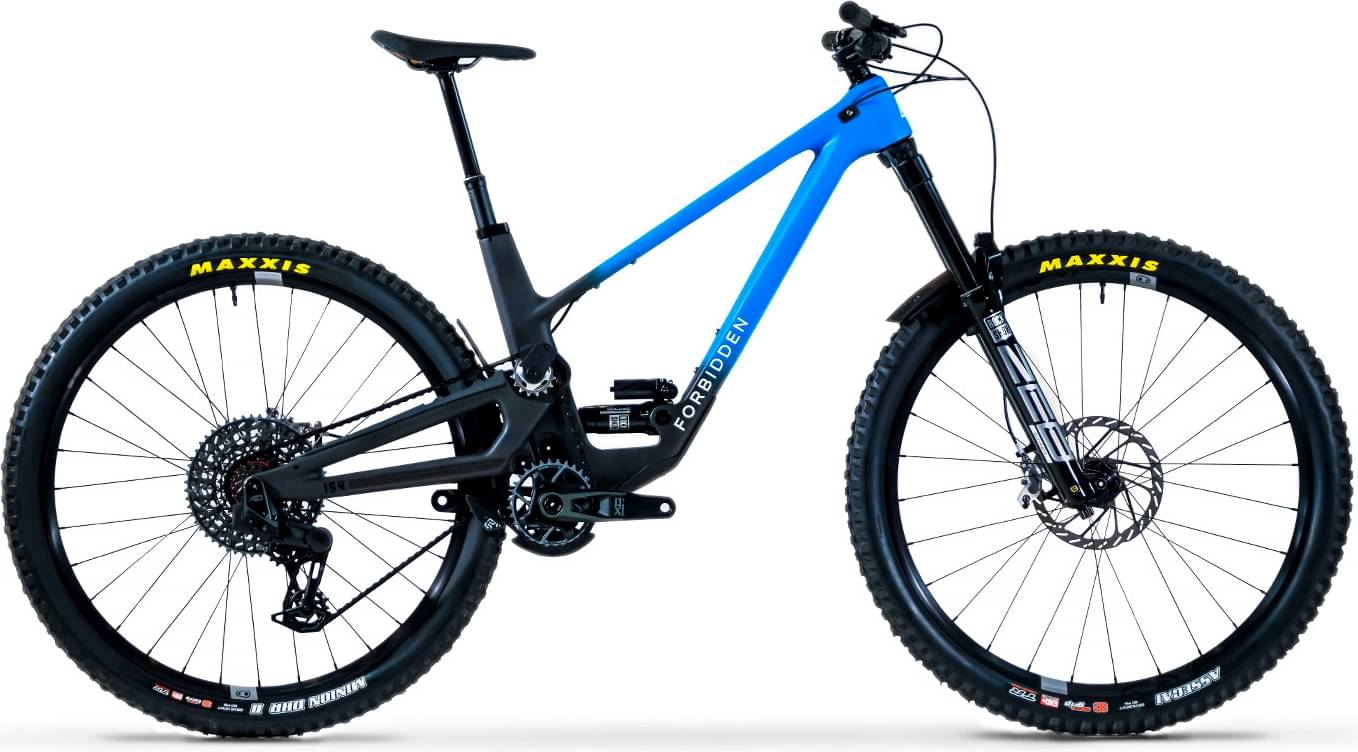

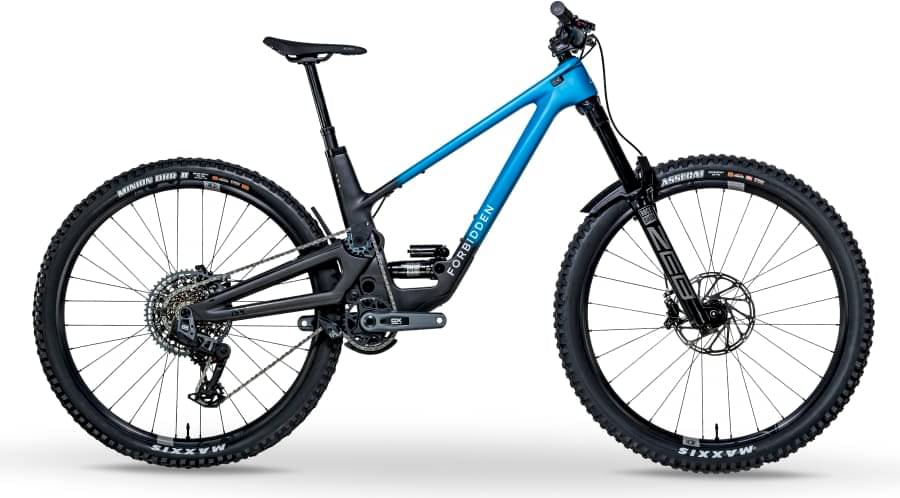

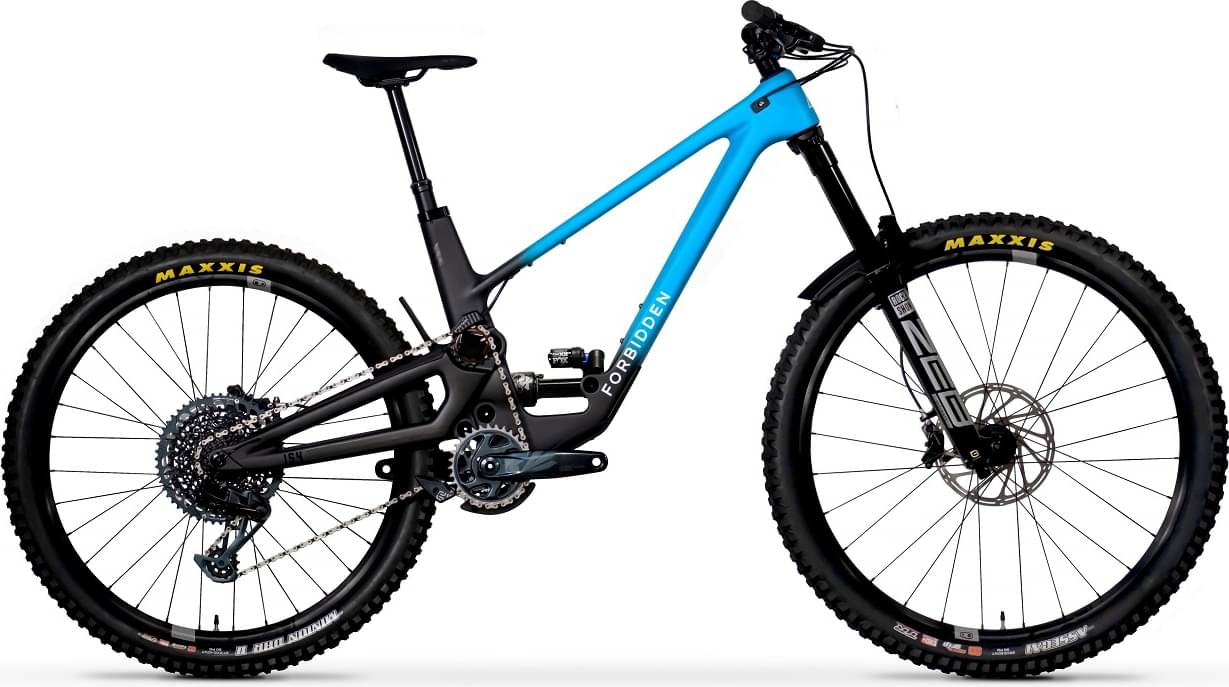

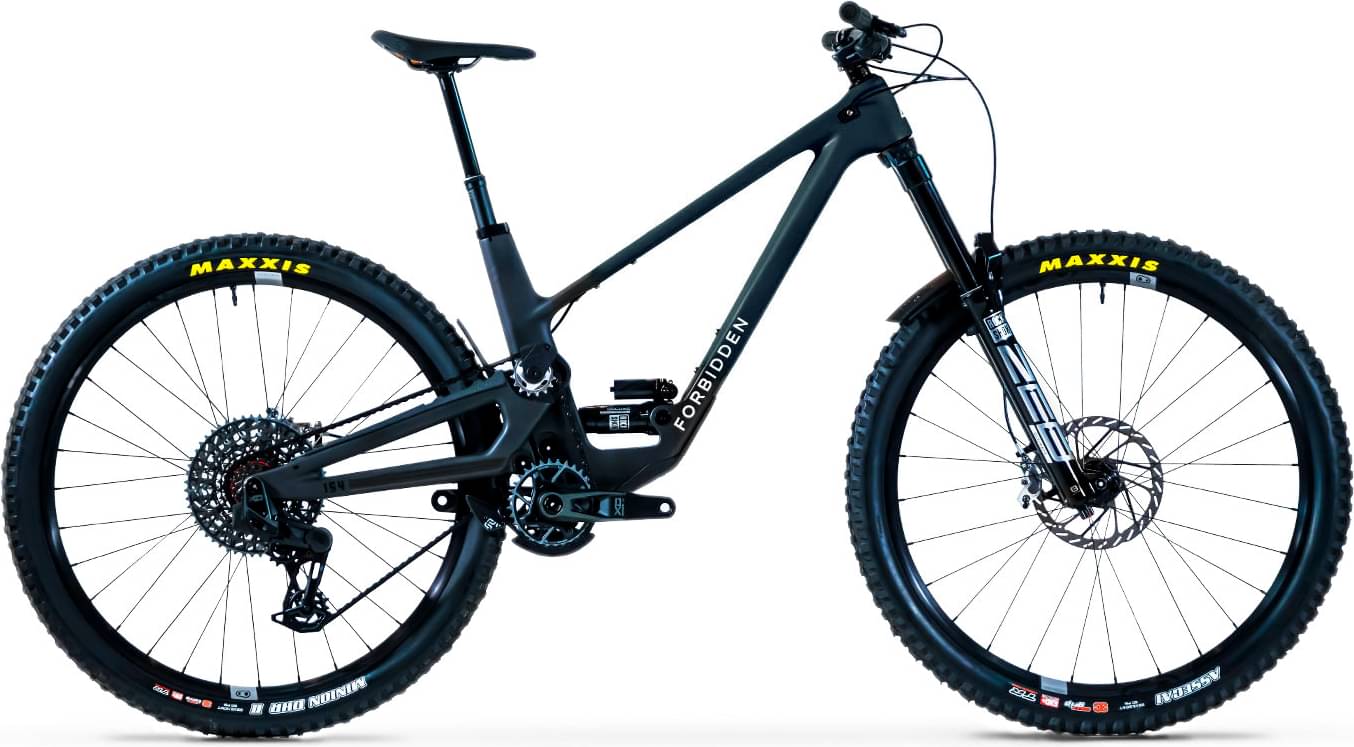

Forbidden Dreadnought GX AXS 29 2023
2023 Mountain
Estimate price |
7,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 154mm -
Fork RockShox ZEB Select+
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

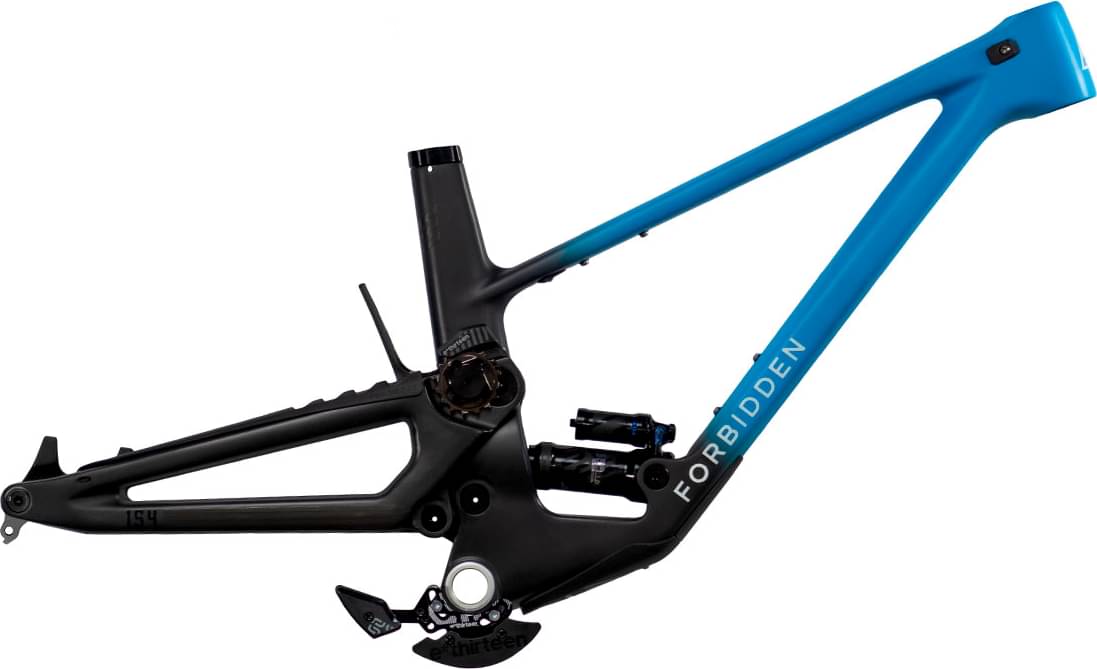

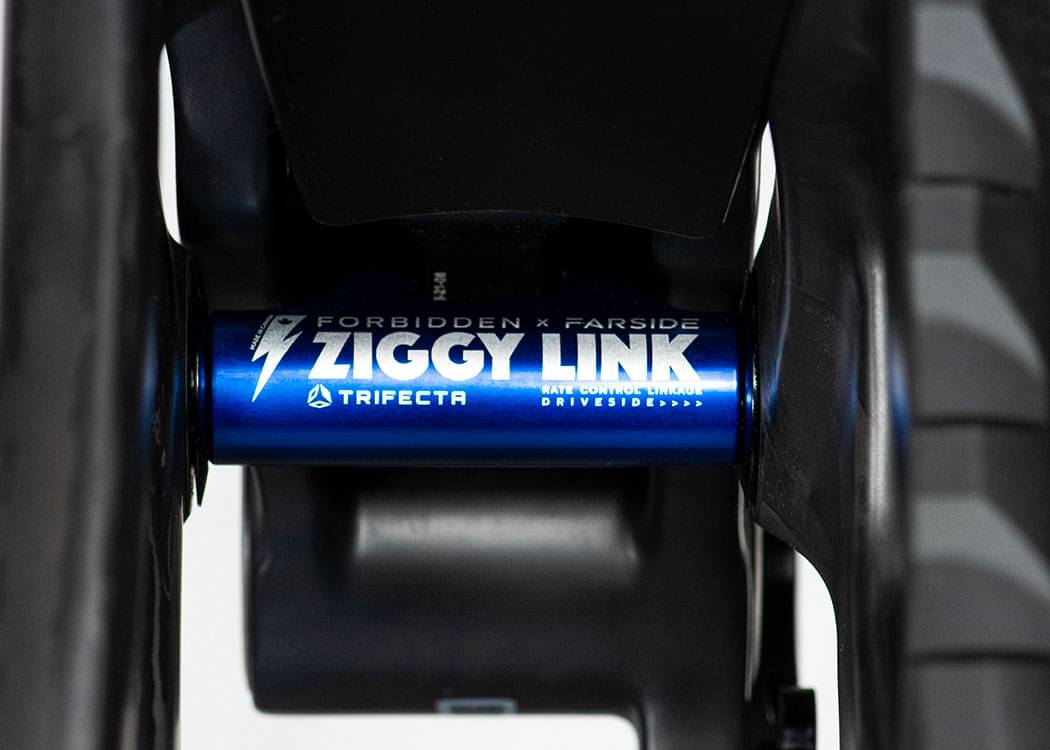

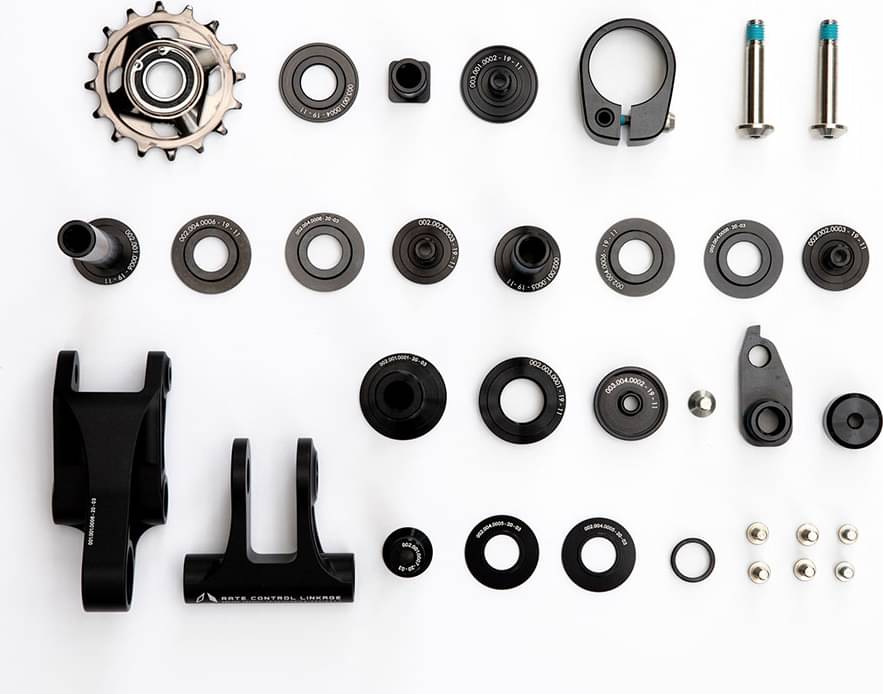

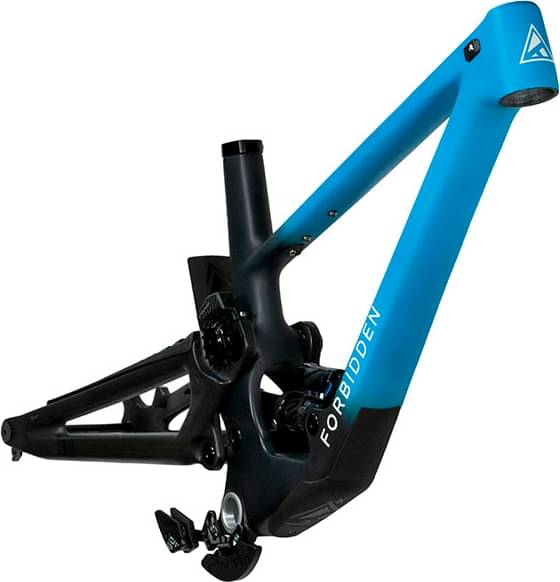

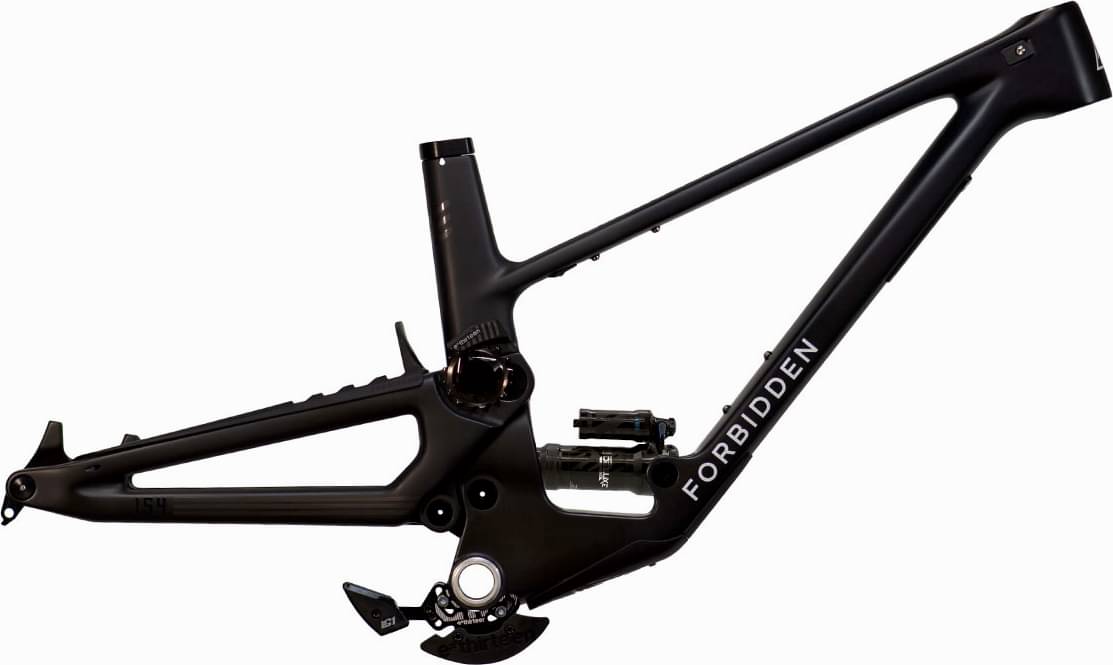

Dreadnought V1 Full Carbon - 154mm Travel, High-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket
Suspension Fork
Rock Shox ZEB Select+, Charger 3 RC2 | Debonair+ | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Fender included | Gloss Black
Rear Shock

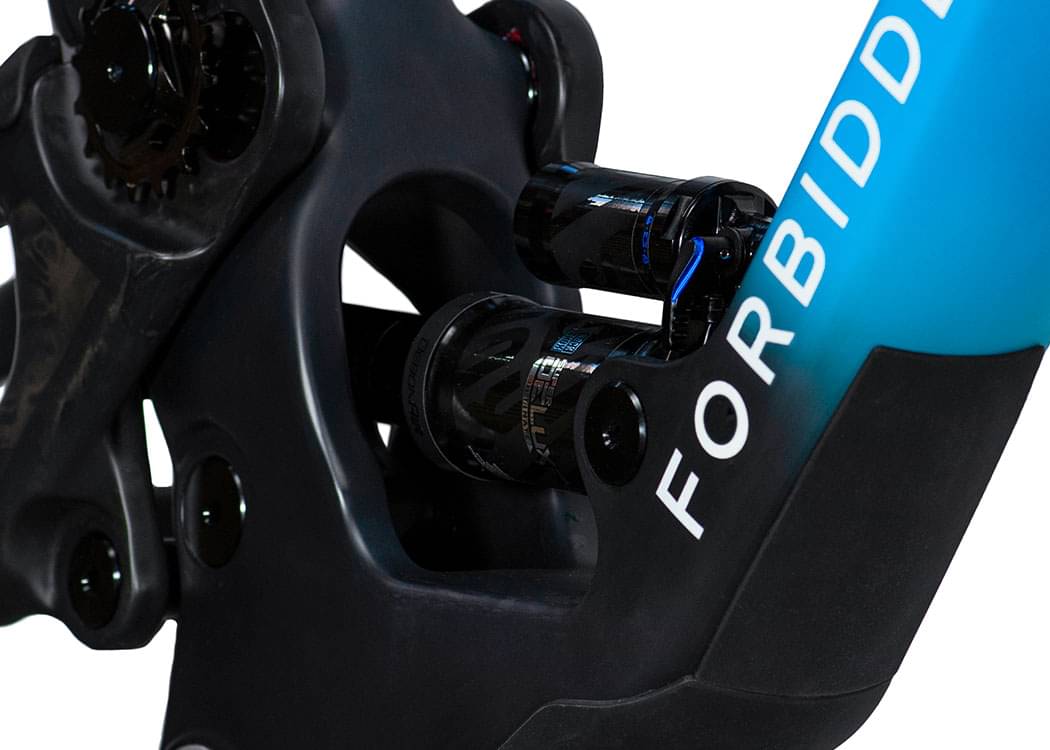

Rock Shox Super Deluxe Ultimate, 2 Position Adjuster | DebonAir+ Linear | RC2T Damper | LNLC Tune | Trunnion/Bearing Mount | 205x65mm
Drivetrain
Rear Derailleur
SRAM GX AXS AXS T-Type 12speed, Hangerless Interface | Overload Clutch | Replaceable Skid Plates
Shift Levers
AXS POD, With MMX Clamp | AXS controller | Two Button Design
Cassette
SRAM GX AXS T-Type 10-52T 12speed, 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T
Crank
SRAM GX AXS Eagle 32T - 165mm, 165mm All Sizes | Grey
Bottom Bracket
SRAM DUB Threaded BSA Wide, 28.99mm Spindle | DUB | Threaded BSA
Chain
SRAM GX Transmission Flattop 12speed, 12speed | Links = S1:130 / S2:130 / S3:132 / S4:134
Chain Tensioner

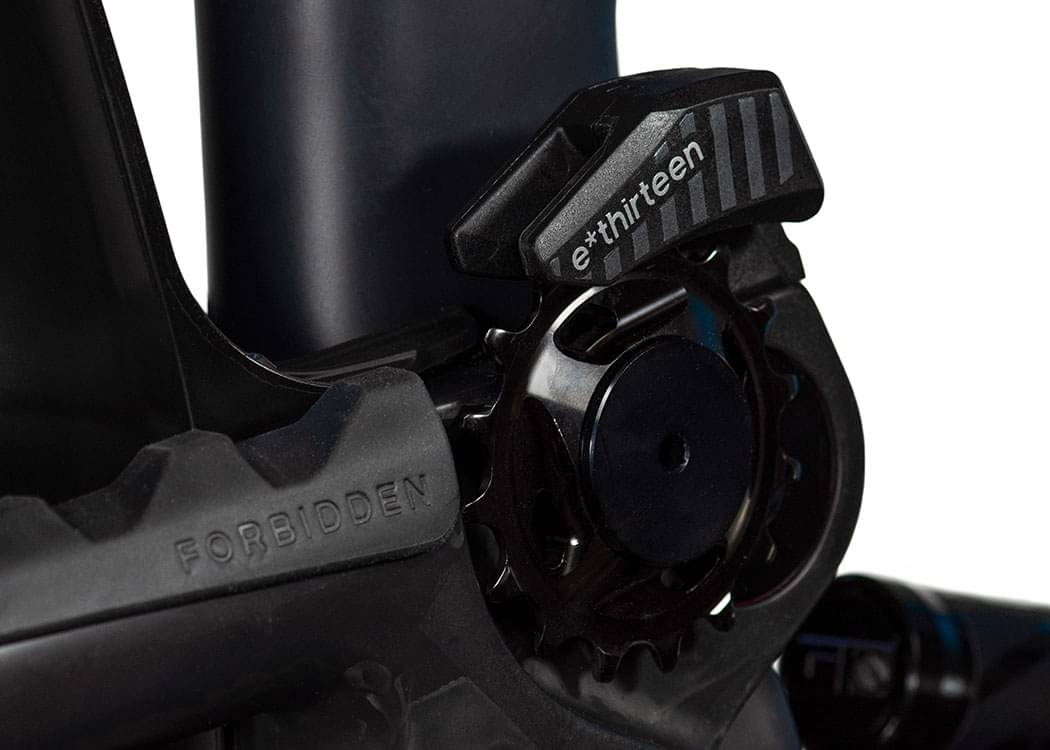

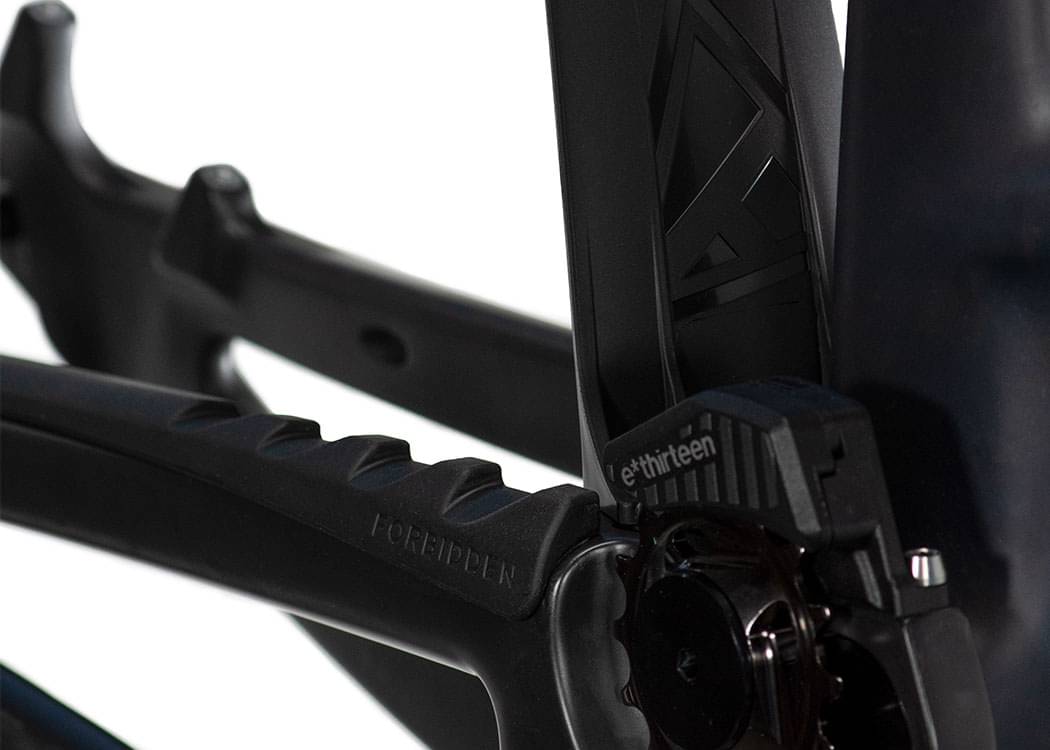

Forbidden Race Guide, Idler Pulley with e.13 Custom Chainguide, NSB Idler | Forbidden Race Guide | e.13 TRS Plus | Molded Inner with Compact Outer | Black
Pedals
Not included
Wheels
Front Hub
Industry 9 1/1 Front Hub, 110x15mm | 28hole | 6-Bolt | Black Anodized
Rear Hub
Industry 9 1/1 Rear Hub, XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal
Rims
Crankbrothers Synthesis Enduro - Alloy, Front 31.5mm / Rear 29.5mm Internal Width | Welded | Tubeless Ready | Black with Grey Graphics
Spokes
Sapim D-Light, D-Light 2.0/1.65/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples
Tires
Front: Maxxis Assegai - 3C Maxx Grip - EXO+, 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing, Rear: Maxxis Assegai - 3C Maxx Grip - EXO+, 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing
Brakes
Brakes
Front: SRAM Code Stealth Silver 4-Piston, Stealth Body | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered, Rear: SRAM Code Stealth Silver 4-Piston, Stealth Body | SwingLink | Reach & Contact Adjustment | Steel Backed Metal Sintered
Cockpit
Stem
Burgtec OE MK3 Enduro, 42.5mm Length | 35mm Bar Clamp | Black
Handlebar
Burgtec Ride Wide Enduro Alloy // Ride High Alloy, 800mm Width | S1:15 / S2:22.5 / S3:30 / S4:38mm Rise | 9° backsweep 5°upward | 35mm Bar Bore | Black
Grips
Burgtec Bartender Pro, 135mm length | Single Sided Lock-On | Black
Headset
Cane Creek 40, SHIS: ZS44/28.6|ZS56/40 | sealed cartridge bearings | 6000 series alloy cups and materials | sealed steel crown race
Seat
Saddle
Fizik Terra Alpaca X5, 145mm width | X5: ride-compliant fiber reinforced nylon shell and an S-Alloy rail | Black
Seatpost
OneUp Dropper Post, 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.344 mm | 1.302 mm | 1.263 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 781 mm | 808 mm | 834 mm | 861 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 163 mm | 162 mm | 163 mm | 162 mm |
| Stack | 612 mm | 621 mm | 630 mm | 639 mm |
| Reach | 440 mm | 462 mm | 484 mm | 506 mm |
| Top Tube Length | 593 mm | 617 mm | 641 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 436 mm | 450 mm | 464 mm |
| Wheelbase | 1203 mm | 1244 mm | 1284 mm | 1325 mm |
| Bottom Bracket Drop | -26 mm | -26 mm | -26 mm | -26 mm |
| Standover Height | 721 mm | 721 mm | 727 mm | 733 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Dreadnought GX AXS 29 belongs to the Forbidden Dreadnought model. There are 20 bikes that carry this model name. You can easily view all of the Forbidden Dreadnought bikes models from 2023, here.
Model range prices
The most economical model, the Forbidden Dreadnought SLX 2023 has a starting price of 5699$. Forbidden Dreadnought X0 2023 on the other hand is the most expensive at 8499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Forbidden released this model in 2023, its price was 7199$. If we compare this with the average Enduro bike cost we notice that the price is 100.03% higher.
Overview of components
Fork
The Dreadnought GX AXS 29 comes factory-installed with the RockShox ZEB Select+ fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Dreadnought GX AXS 29 has a rear shock with a travel of 154mm. The model Rock Shox Super Deluxe Ultimate is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Forbidden Dreadnought GX AXS 29 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
