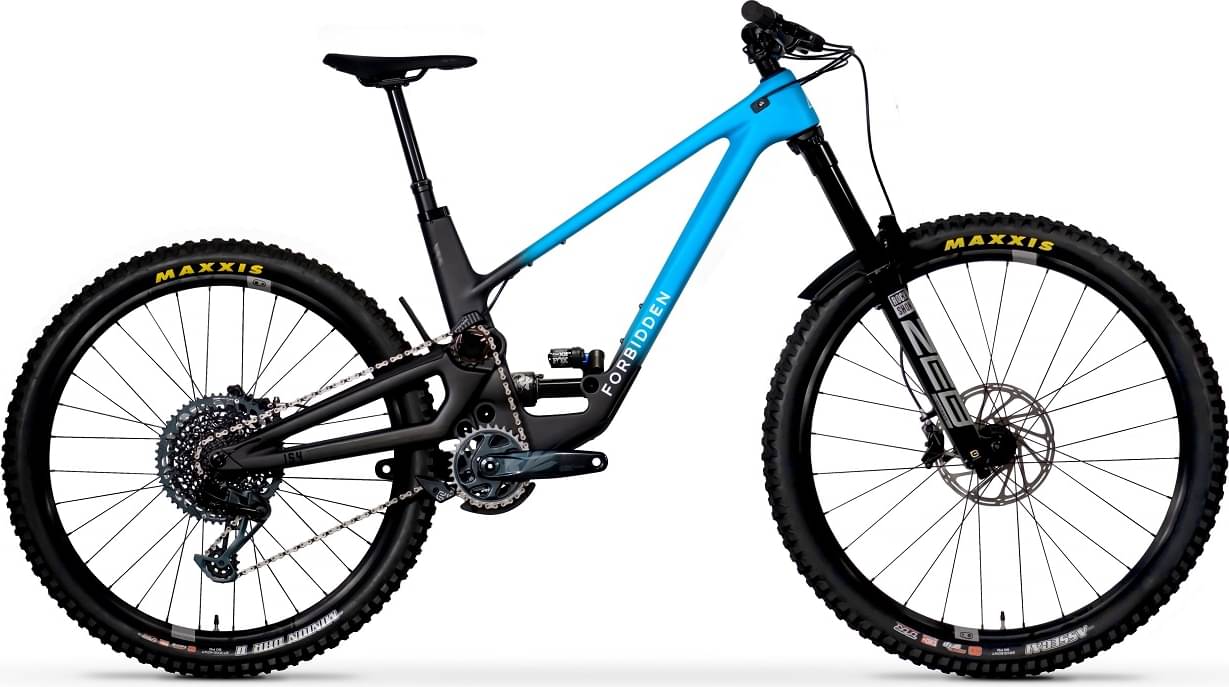

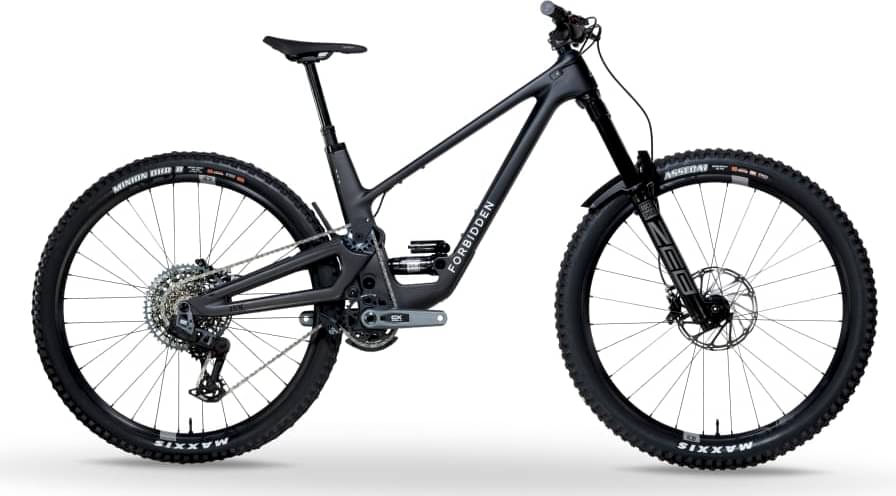

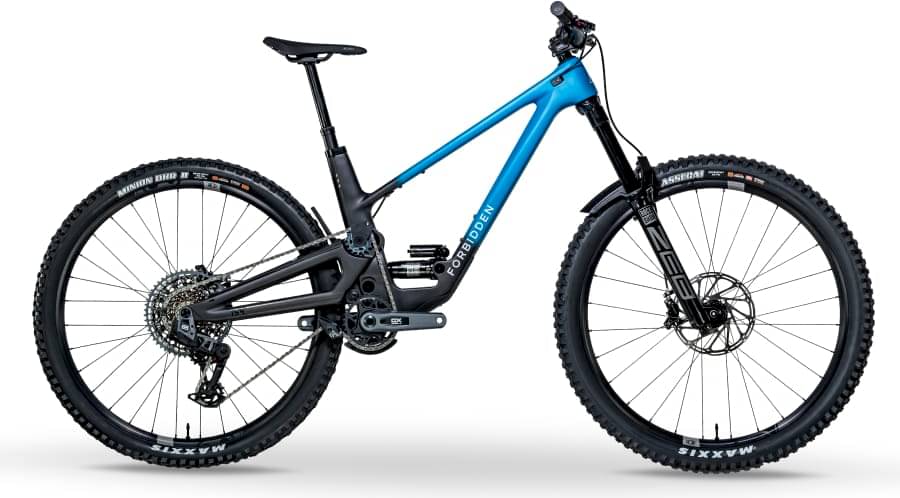

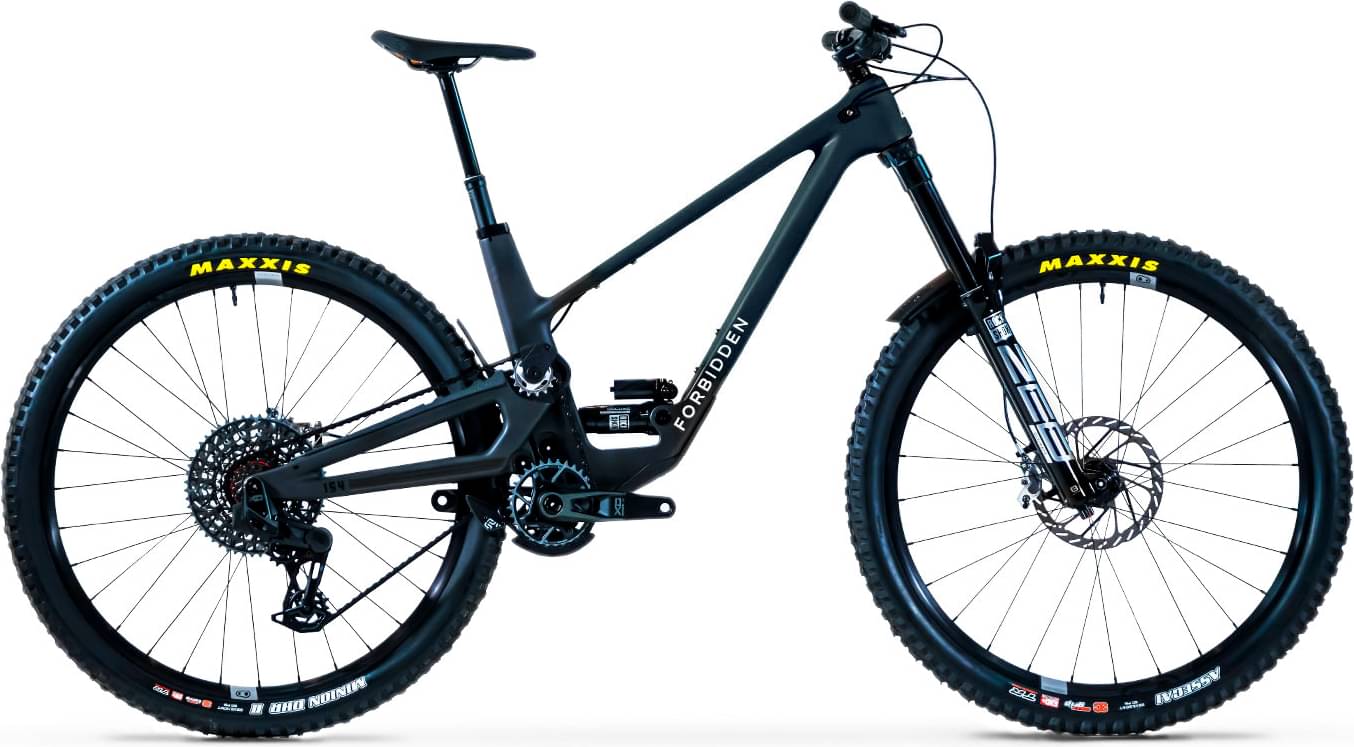

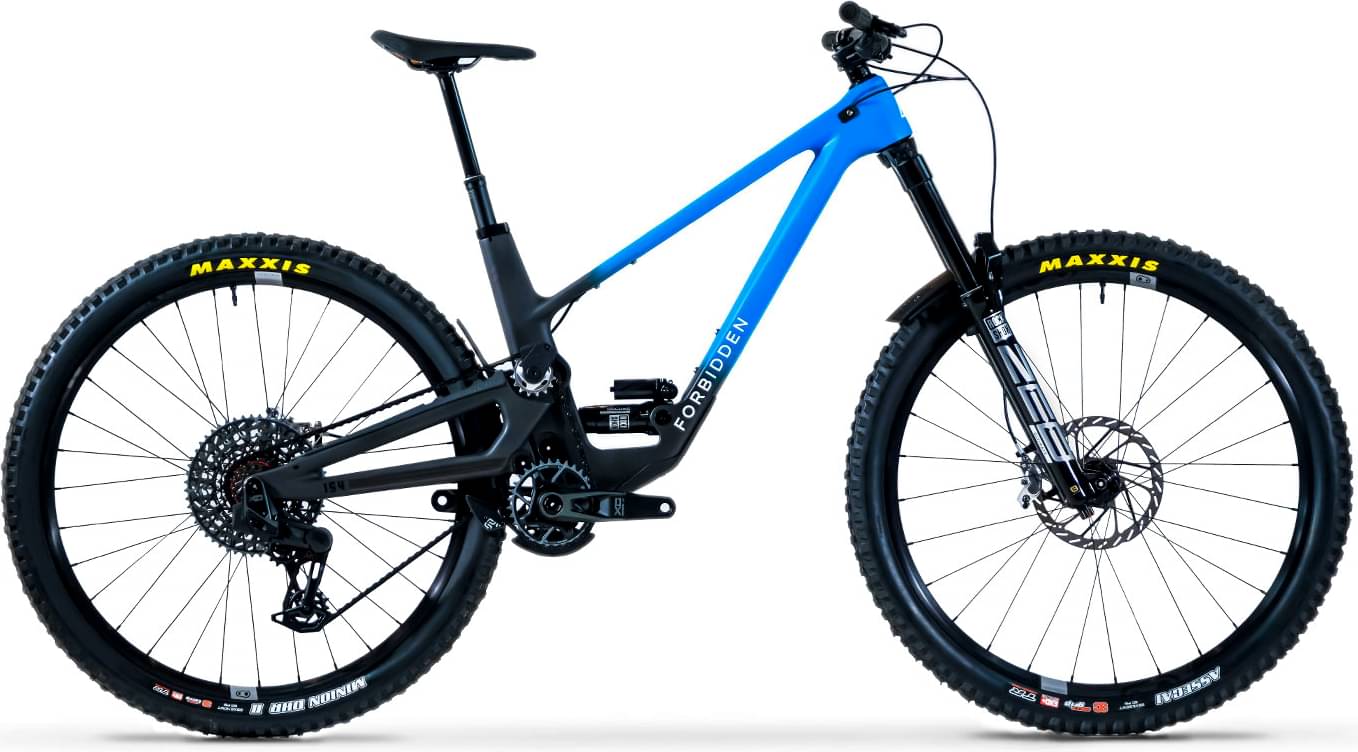

Forbidden Dreadnought GX LTD Team 29 2023
2023 Mountain
Estimate price |
6,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 154mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

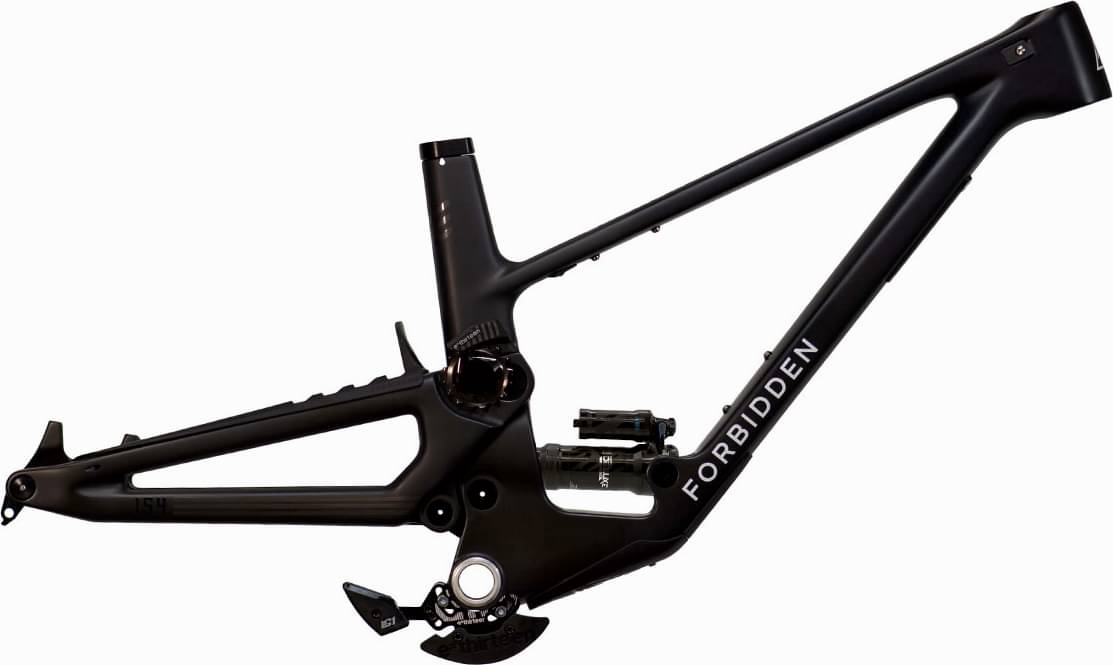

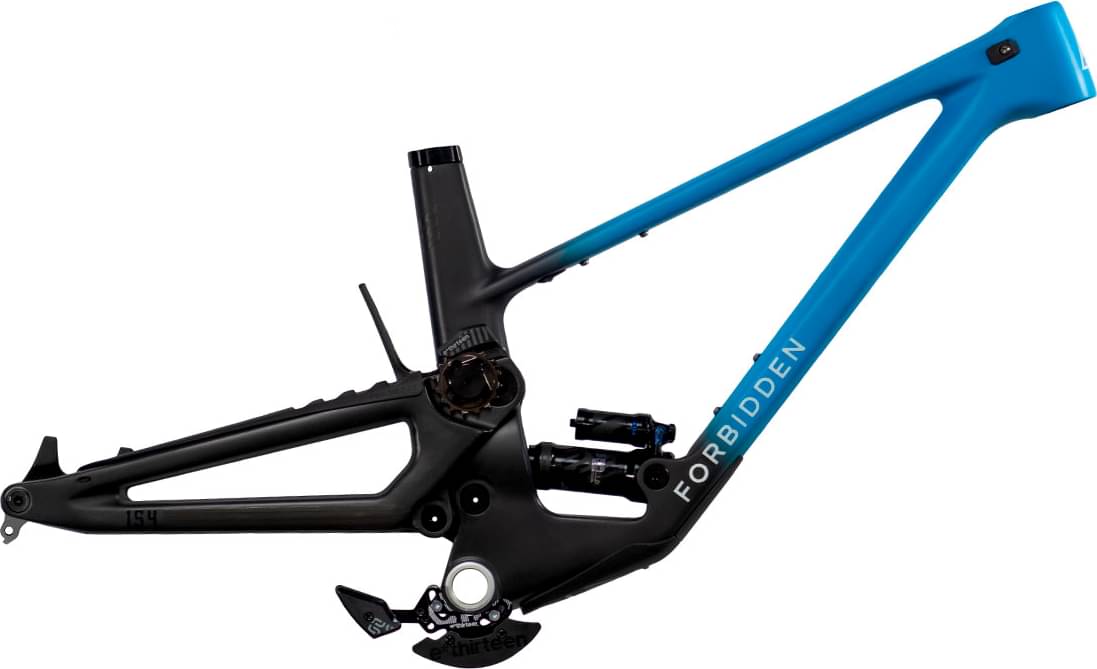

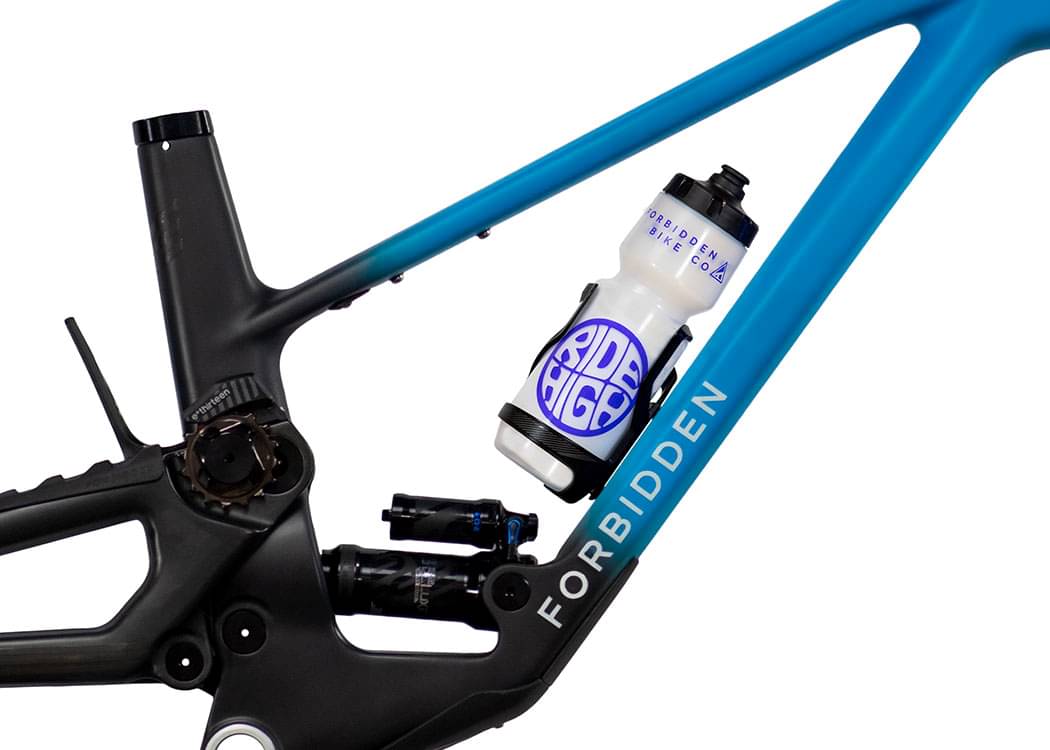

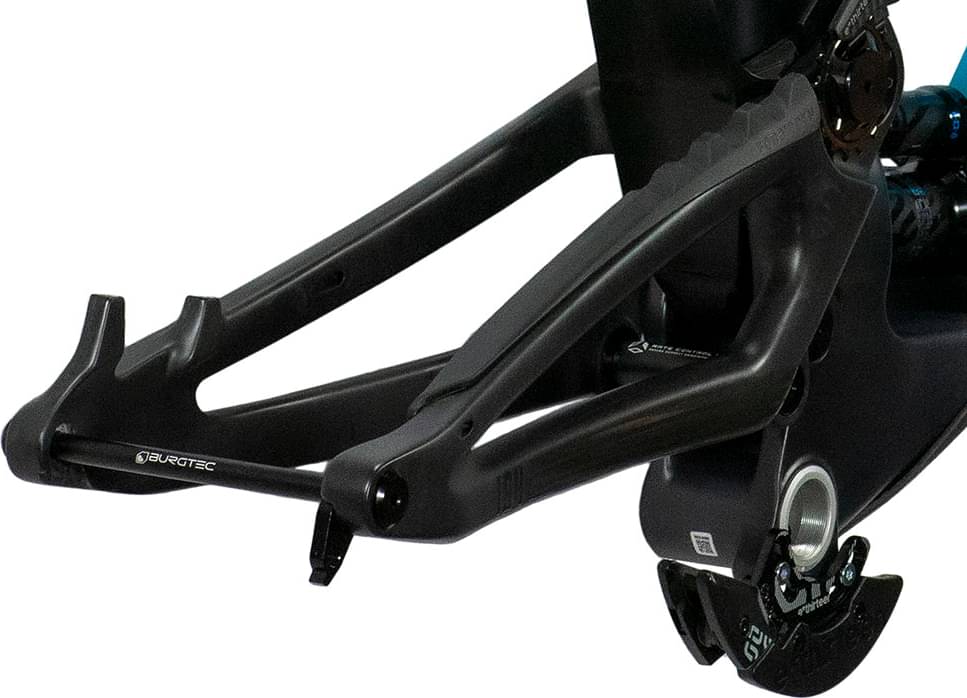

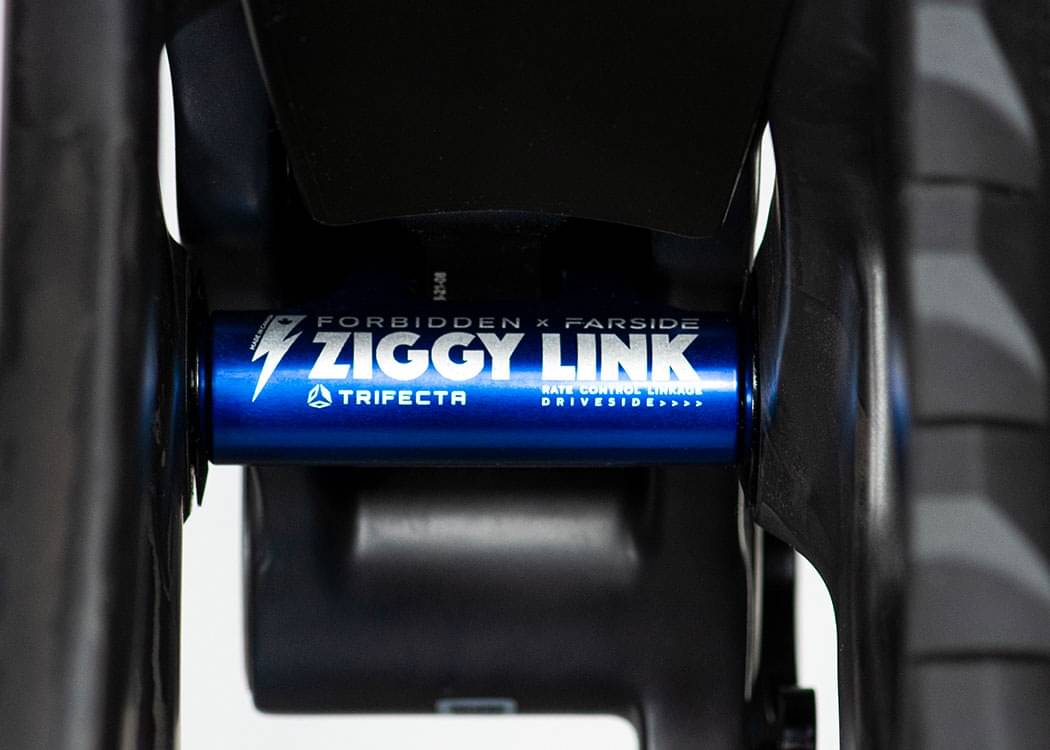

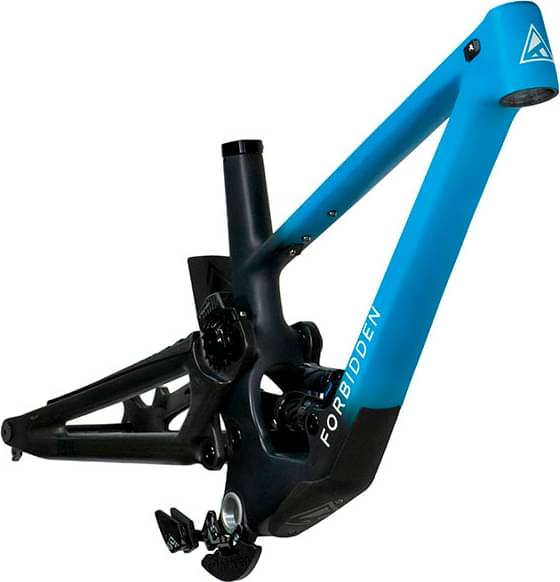

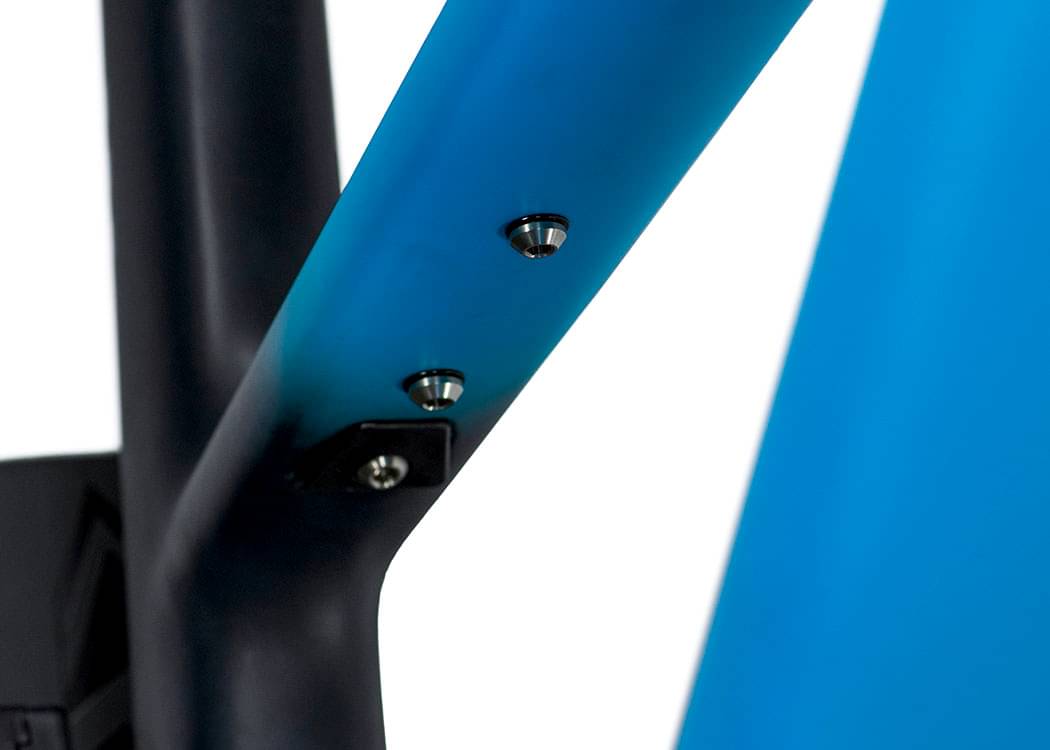

Dreadnought V1 Full Carbon - 154mm Travel, High-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket
Suspension Fork
Rock Shox ZEB Ultimate, Charger 3 RC2 W/ButterCup | Debonair+ | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Fender included | Gloss Black
Rear Shock

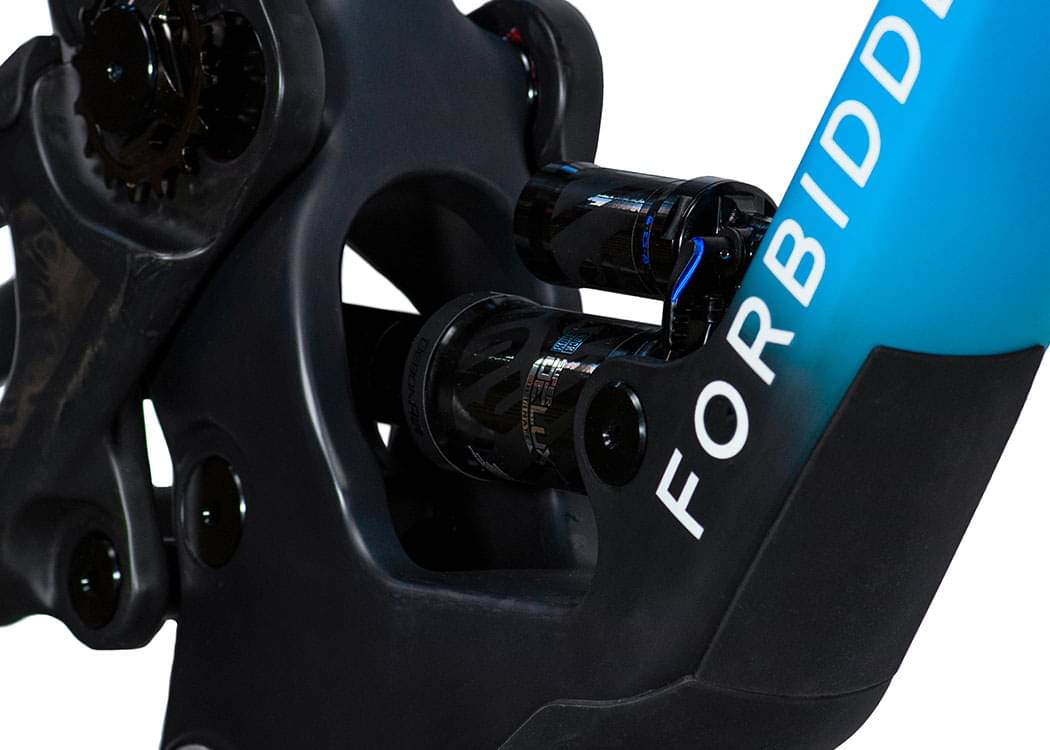

Fox Float X2 Performance Elite, 2 Position Adjuster | HSC/LSC | HSR/LSR | Evol Air Can | Custom Tune | Trunnion Mount | Bearing Mount | 205x65mm
Drivetrain
Rear Derailleur
GX Eagle 12speed
Shift Levers
GX Eagle 12speed, With MMX Clamp
Cassette
GX Eagle 12speed, 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-36-42-52T
Crank
SRAM GX Eagle - 165mm, S1 30T S2/S3/S4 32t Chainring | 165mm All Sizes | Grey
Bottom Bracket
SRAM DUB Threaded BSA Wide, 28.99mm Spindle | DUB | Threaded BSA
Chain
GX Eagle 12speed, 12speed | Links = S1:128 / S2:130 / S3:132 / S4:134
Chain Tensioner

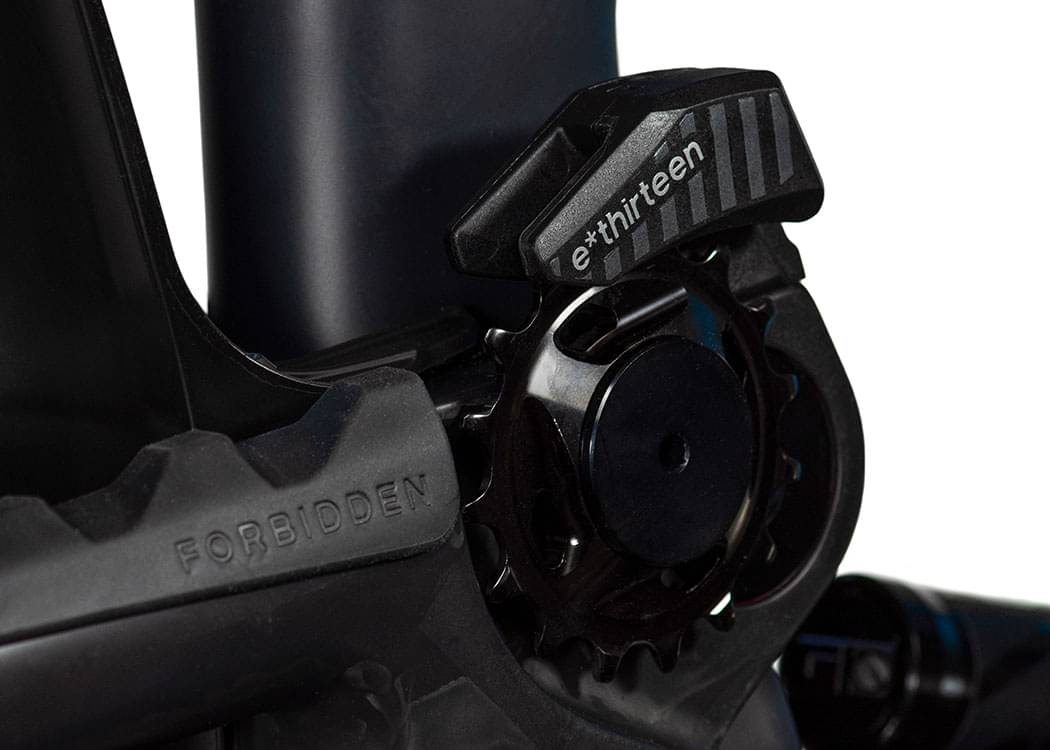

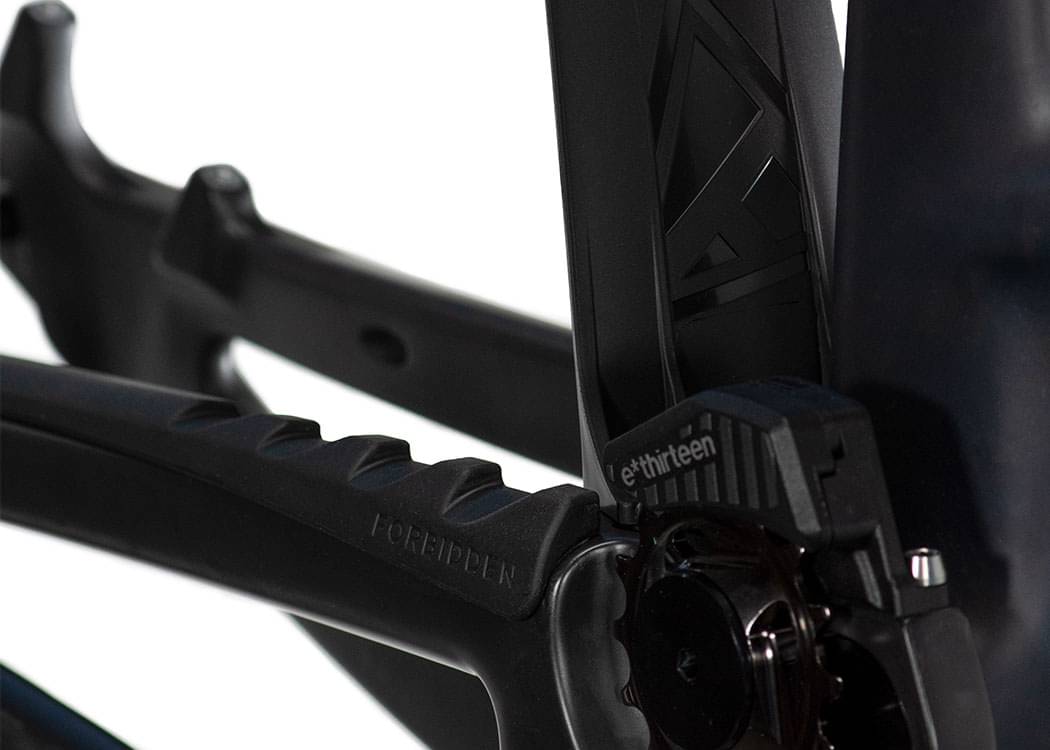

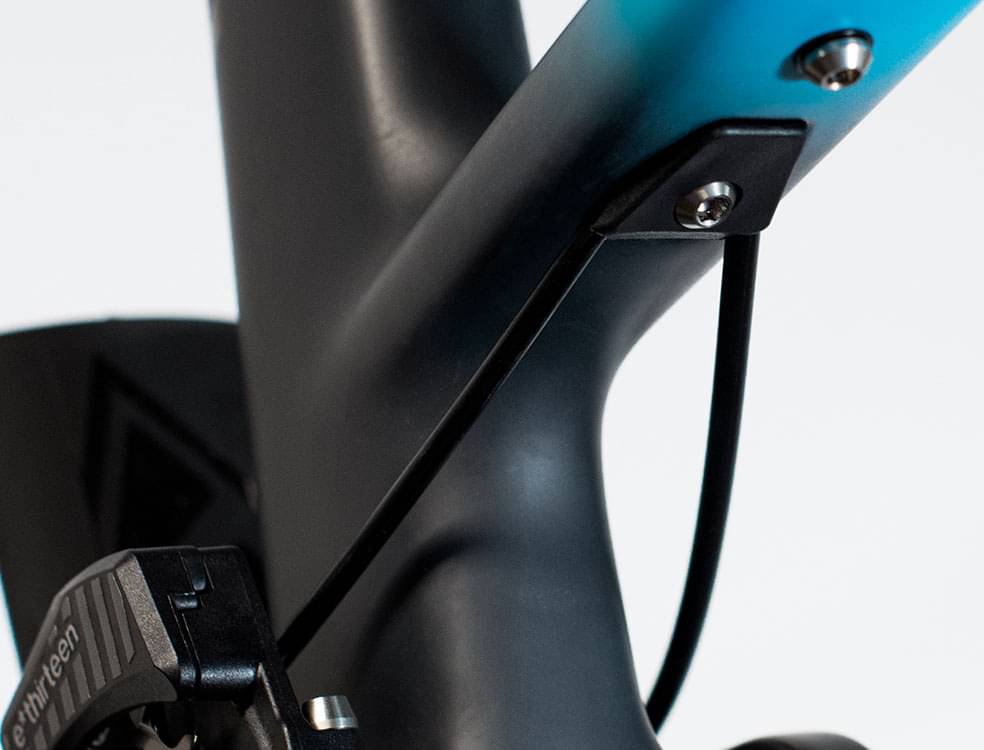

Forbidden Race Guide, Idler Pulley with e.13 Custom Chainguide, NSB Idler | Forbidden Race Guide | e.13 TRS Plus | Molded Inner with Compact Outer | Black
Pedals
Not included
Wheels
Front Hub
Industry 9 1/1 Front Hub, 110x15mm | 28hole | 6-Bolt | Black Anodized
Rear Hub
Industry 9 1/1 Rear Hub, XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal
Rims
Crankbrothers Synthesis Enduro - Alloy, Front 31.5mm / Rear 29.5mm Internal Width | Welded | Tubeless Ready | Black with Grey Graphics
Spokes
Sapim D-Light, D-Light 2.0/1.65/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples
Tires
Front: Maxxis Assegai - 3C Maxx Grip - EXO+, 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing, Rear: Maxxis Assegai - 3C Maxx Grip - EXO+, 29x2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing
Brakes
Brakes
Front: SRAM Code R 4-Piston, Reach Adjust | Steel Backed Metal Sintered, Rear: SRAM Code R 4-Piston, Reach Adjust | Steel Backed Metal Sintered
Cockpit
Stem
Burgtec OE MK3 Enduro, 42.5mm Length | 35mm Bar Clamp | Black
Handlebar
Burgtec Ride Wide Enduro Alloy // Ride High Alloy, 800mm Width | S1:15 / S2:22.5 / S3:30 / S4:38mm Rise | 9° backsweep 5°upward | 35mm Bar Bore | Black
Grips
Burgtec Bartender Pro, 135mm length | Single Sided Lock-On | Black
Headset
Cane Creek 40, SHIS: ZS44/28.6|ZS56/40 | sealed cartridge bearings | 6000 series alloy cups and materials | sealed steel crown race
Seat
Saddle
Fizik Terra Alpaca X5, 145mm width | X5: ride-compliant fiber reinforced nylon shell and an S-Alloy rail | Black
Seatpost
OneUp Dropper Post, 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.344 mm | 1.302 mm | 1.263 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 781 mm | 808 mm | 834 mm | 861 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 163 mm | 162 mm | 163 mm | 162 mm |
| Stack | 612 mm | 621 mm | 630 mm | 639 mm |
| Reach | 440 mm | 462 mm | 484 mm | 506 mm |
| Top Tube Length | 593 mm | 617 mm | 641 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 436 mm | 450 mm | 464 mm |
| Wheelbase | 1203 mm | 1244 mm | 1284 mm | 1325 mm |
| Bottom Bracket Drop | -26 mm | -26 mm | -26 mm | -26 mm |
| Standover Height | 721 mm | 721 mm | 727 mm | 733 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Dreadnought GX LTD Team 29 belongs to the Forbidden Dreadnought model. Forbidden released 20 bikes variations of this model so far. Take a sneak peek at all Forbidden Dreadnought bikes models from 2023, by clicking here.
Model range prices
Forbidden Dreadnought SLX 2023 is the most affordable bike of this model and has a price of 5699$. On the other hand, Forbidden Dreadnought X0 2023, is the most expensive and costs 8499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6299$. Comparing this to the average Enduro bike price, we see that the price is 75.02% more expensive.
Overview of components
Fork
Forbidden Dreadnought GX LTD Team 29 2023 bike is equipped with the RockShox ZEB Ultimate fork, and has 170mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float X2 Performance Elite rear shock model, which has a travel of 154mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Dreadnought GX LTD Team 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Forbidden model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
