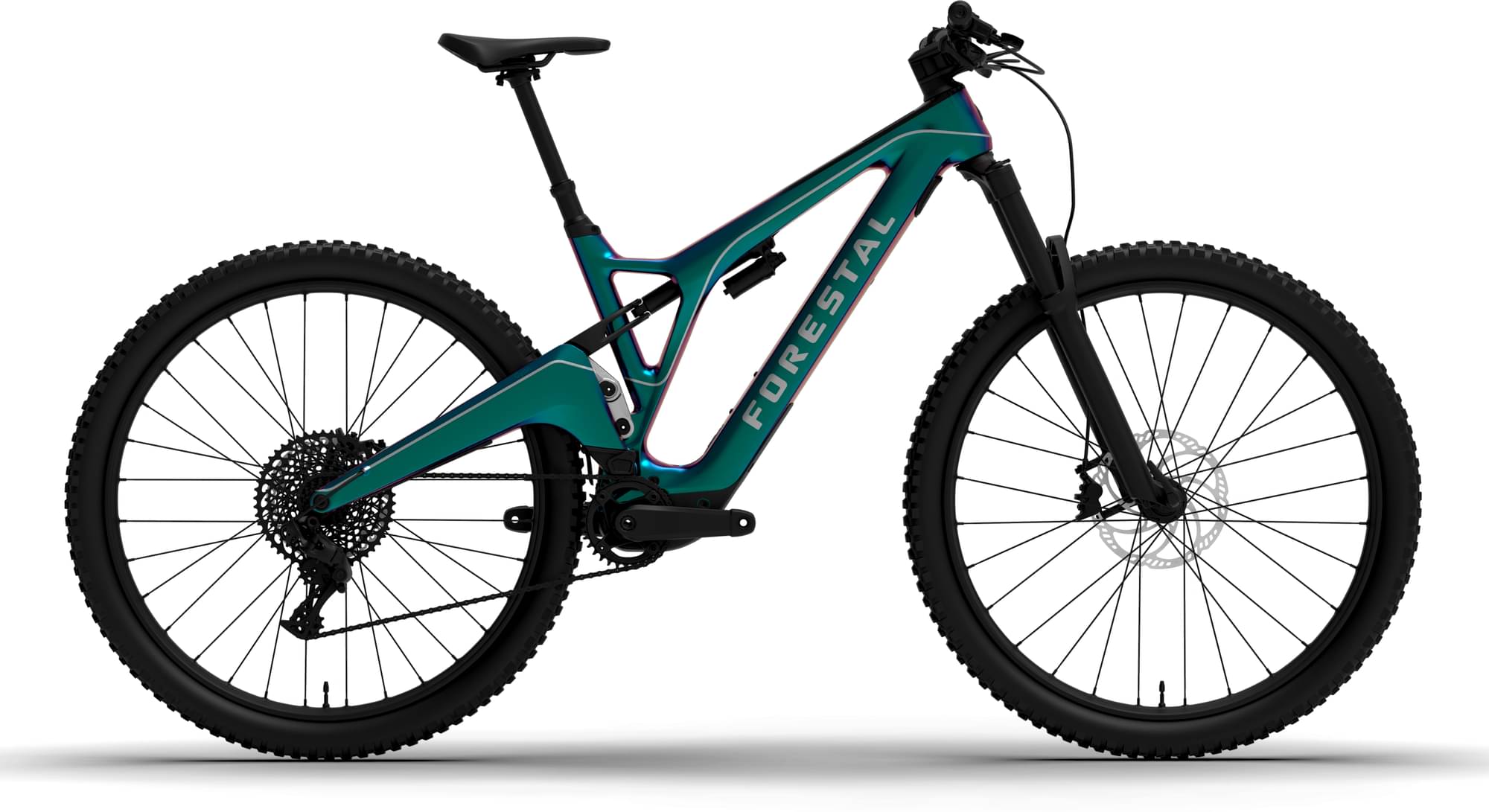

Forestal Cyon Diode PRO 2023
2023 E-bike
Estimate price |
17,333$
Weight | 17.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Öhlins RXF36
-
Groupset X01 Eagle AXS, Praxis -
Suspension Full -
Motor Forestal 250W 60Nm mid-drive -
Battery Forestal Aurora Performance 360Wh / 52V / Integrated / Rapid Charge / 1.8kg / 350 x 72 x 50.5mm -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Forestal Alpha Box Carbon Enduro 29" TR 150 Monocoque construction / Track Ready / 150mm Travel / 2.2kg Size M
Suspension Fork
Öhlins RXF36 m.2 29" 150mm Tapered / Boost 15x110 / Maxle Stealth / Offset 44mm / Extl begin stroke rebound / Low Speed Compression / High Speed Compression / Gloss Black-Yellow
Rear Shock
Öhlins TTX1 Air Metric 230x60mm / Extl Rebound / 2 position (Open / Firm) / Compression adjust / Black
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS 12 Speed / Wireless / Overload Clutch protection / IP69K / Colour: Black
Shift Levers
SRAM Eagle AXS Controller Wireless / Customizable shift options / IP69K / X-Actuation / Colour: Black
Cassette
SRAM Eagle XG-1299 10-50T / 12 Speed / XD Driver Body / Colour: Rainbow
Crank
Praxis Carbon Q-Factor 170mm / ISIS Drive / 104 BCD / Length 160mm Sizes S, M / Length 165mm Sizes L, XL
Chain
SRAM XX1 Eagle 12 Speed / Powerlock / Flowlink / Colour: Rainbow
Wheels
Rims
Front: Crankbrothers Synthesis Carbon E11 29" Hub I9 1/1 / 15 x 110mm Boost / Spokes Sapim E-Light / 6-Bolt / Inner Rim 31.5mm / Outter Rim 37.5mm, Rear: Crankbrothers Synthesis Carbon E11 29" Hub I9 1/1 / 12 x 148mm Boost / Spokes Sapim Strong / XD Drivetrain/ 6-Bolt / Inner Rim 29.5mm / Outter Rim 36.5mm
Tires
Front: Maxxis Minion DHF 29x2.3 3C MAXXTERRA, Rear: Maxxis Minion DHF 29x2.3 3C MAXXTERRA
Brakes
Brakes
Braking Braking
Cockpit
Stem
Forestal Oxydon 45mm ? 31.8mm / 7075 Heavy duty Aluminum
Handlebar
Forestal Oxydon C 780mm ? 31.8mm / Upsweep 4° / Backsweep 6° / Rise 15mm / Toray T700 & T800 Carbon
Grips
Production Privée CR35 Forestal x Production Privée edition / 2-position adjustable (Tour / Race)
Headset
Acros Integrated ZS 56 Top / ZS 56 Bottom / Internal cable routing / Stainless steel bearings / Blocklock 150°
Seat
Saddle
Fizik Aidon X3 E-MTB Fibre reinforced nylon / S-alloy rails / 249g / 255 x 145mm
Seatpost
Rockshox Reverb AXS Wireless / ? 31.6mm / Length 125mm Size S / Length 150mm Sizes M, L / Length 170mm Size XL
Motor & Battery
Motor
Forestal EonDrive 250W / 60Nm / IP67 / 1.95kg / 165 x 105 x 147mm
Battery
Forestal Aurora Performance 360Wh / 52V / Integrated / Rapid Charge / 1.8kg / 350 x 72 x 50.5mm
Remote
Forestal Smart Trigger 3 Buttons / Battery & Assistance LED Indicators
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.3 mm | 1.28 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 743 mm | 770 mm | 799 mm | 825 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 609 mm | 614 mm | 623 mm | 636 mm |
| Reach | 428 mm | 453 mm | 478 mm | 498 mm |
| Top Tube Length | 575 mm | 601 mm | 631 mm | 655 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 415 mm | 430 mm | 465 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 443 mm | 443 mm |
| Wheelbase | 1174 mm | 1201 mm | 1240 mm | 1266 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cyon Diode PRO completes the Forestal E Cyon model. Forestal launched 9 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Forestal Cyon Halo 2023 has a starting price of 10298$. Forestal Cyon Diode PRO 2023 on the other hand is the most expensive at 15820$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Forestal Cyon Diode PRO price was 15820$. In conclusion, this e-bike price is 230.62% higher than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 17.1 kg (37.7 lbs), the Cyon Diode PRO model is much lighter than average. In short, the average Enduro e-bike weight is 36.96% higher than this one.
Overview of components
Fork
The Cyon Diode PRO comes factory-installed with the Öhlins RXF36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Cyon Diode PRO has a rear shock with a travel of 150mm. The model Öhlins TTX1 Air Metric 230x60mm / is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Cyon Diode PRO model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cyon Diode PRO has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Cyon Diode PRO comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Forestal Cyon Diode PRO comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
