Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCR
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube
Suspension Fork
SR Suntour SF14-XCR-RL-27.5 w/ remote lockout, 80mm travel (13"-15") 100mm travel (17"-19")
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG50, 11-36T, 10-speed
Crank
Shimano Deore Octalink, 42/32/24T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-73 front, Formula DC-22LW rear disc hubs, 15g stainless black spokes
Tires
Schwalbe Smart Sam, 27.5" x 2.25", 50tpi
Brakes
Brakes
Tektro M290, hydraulic disc, 180/160mm rotors
Brake Levers
Tektro M290, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, alloy, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts Women's 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.61 mm | 1.56 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 594 mm | 605 mm | 620 mm | 640 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 575.8 mm | 580.5 mm | 601.1 mm | 610.5 mm |
| Reach | 356.4 mm | 365.9 mm | 373.6 mm | 390.7 mm |
| Top Tube Length | 533.1 mm | 544 mm | 558 mm | 578 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1017 mm | 1028 mm | 1043 mm | 1064 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 684 mm | 740 mm | 773 mm | 794 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

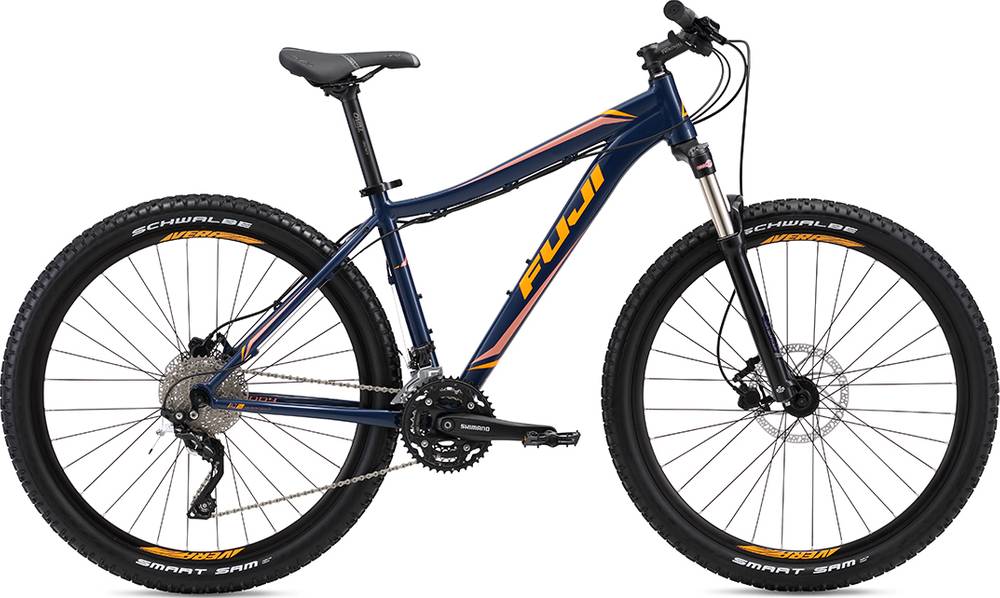

Addy 27.5 1.1 is a Fuji Addy model. Fuji launched 52 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Addy 27.5 1.1 weighs 13.57 kg (29.92 lbs) and is a bit heavier than the average. In conclusion, the average Crosscountry bike weighs 9.44% less than Addy 27.5 1.1.
Overview of components
Fork
This bike has the SunTour XCR fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Addy 27.5 1.1 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Addy 27.5 1.1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
