Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCM
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube
Suspension Fork
SR Suntour SF15-XCM-RL w/ remote lockout, 80mm travel (13"-15") 100mm travel (17"-19")
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore shadow, 9-speed
Front Derailleur
Shimano Alivio, 34.9mm
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG200, 11-34T, 9-speed
Crank
Shimano Alivio Octalink, 40/30/22T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X9 w/ MissingLink, 9-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-20LW front / Formula DC-22LW rear disc hubs, 15g stainless black spokes
Tires
Vera Eos, 27.5" x 2.2", 30 tpi
Brakes
Brakes
Tektro M290, hydraulic disc, 180/160mm rotor
Brake Levers
Tektro M290, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, flat alloy bar, 9° sweep, 31.8mm diameter, 680mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts Womens 200 w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.61 mm | 1.56 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 594 mm | 605 mm | 620 mm | 640 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 575.8 mm | 580.5 mm | 601.1 mm | 610.5 mm |
| Reach | 356.4 mm | 365.9 mm | 373.6 mm | 390.7 mm |
| Top Tube Length | 533.1 mm | 544 mm | 558 mm | 578 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1017 mm | 1028 mm | 1043 mm | 1064 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 684 mm | 740 mm | 773 mm | 794 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

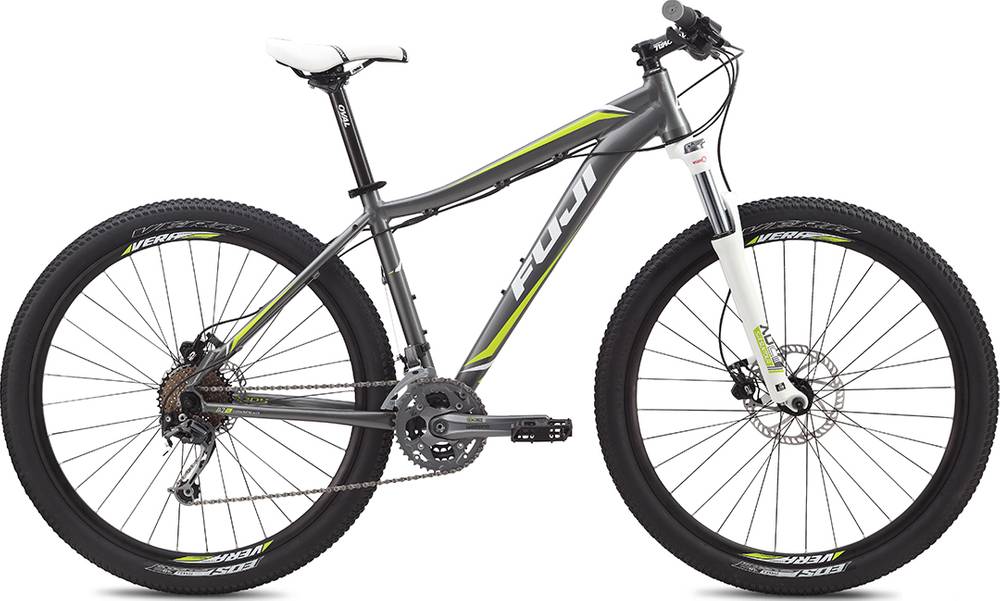

Addy 27-5 1.5 Disc is a Fuji Addy model. Fuji released 52 bikes variations of this model so far. You can easily view all of the Fuji Addy bikes models from 2015, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Addy 27-5 1.5 Disc weighs 14.7 kg (32.41 lbs) and is much heavier than the average. In short, the average Crosscountry bike weight is 18.55% lower than this one.
Addy 27-5 1.5 Disc components
Fork
The Addy 27-5 1.5 Disc comes factory-installed with the SunTour XCM fork. This has a travel range of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Addy 27-5 1.5 Disc are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Addy 27-5 1.5 Disc is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
