Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube
Suspension Fork
SR Suntour SF13-XCT-MLO w/ hydraulic lockout, 80mm travel (13"-15") 100mm travel (17"-19")
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, M390 SGS, 9-speed
Front Derailleur
Shimano Altus, M371, 34.9mm
Shift Levers
Shimano Altus, STM370 Rapid Fire, 9-speed
Cassette
Shimano HG20, 11-34T, 9-speed
Crank
Shimano Acera, M391, 44/32/22T
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
KMC X9, 9-speed
Pedals
Plastic platform
Wheels
Rims
Formula DC-20LW front / Formula DC-22LW rear, 32H disc hubs, Vera DPD22 rims
Tires
Hutchinson Cobra, 27.5" x 2.25", 33 tpi
Brakes
Brakes
Hayes MX-5, mechanical disc, 180mm/160mm rotor
Brake Levers
Shimano Altus, STM370 Rapid Fire, 9-speed
Cockpit
Stem
Oval M313, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy riser bar, 9° sweep, 31.8mm diameter, 640mm wide, 15mm rise
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Womens W200 w/ steel rails
Seatpost
Oval M300, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.61 mm | 1.56 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 594 mm | 605 mm | 620 mm | 640 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 575.8 mm | 580.8 mm | 601.1 mm | 610.5 mm |
| Reach | 356.4 mm | 365.9 mm | 373.6 mm | 390.7 mm |
| Top Tube Length | 529.1 mm | 544 mm | 558 mm | 578 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 115 mm | 115 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1017 mm | 1028 mm | 1043 mm | 1064 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 689 mm | 718 mm | 761 mm | 787 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

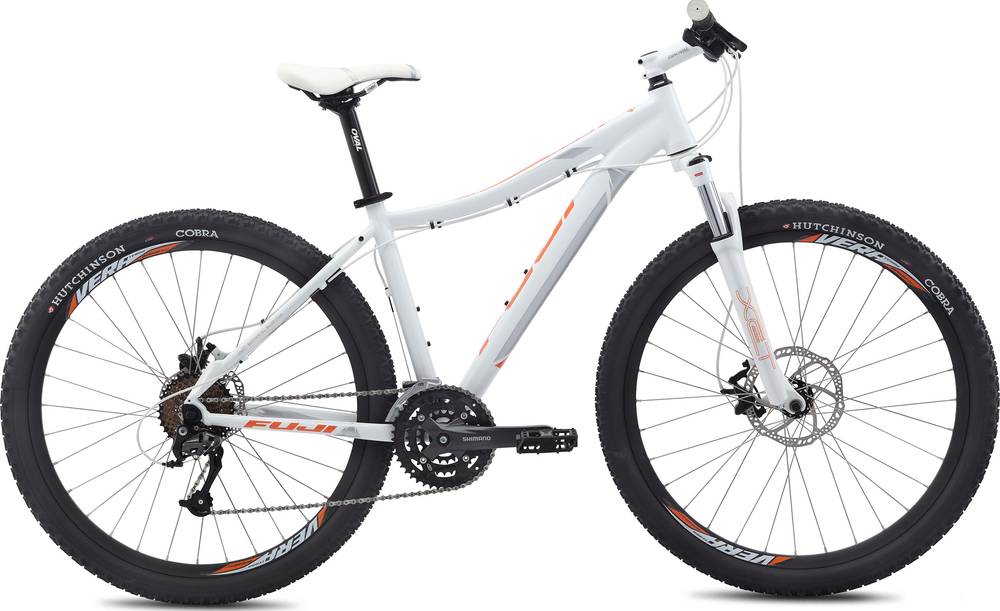

Addy Race 27-5 1.7 is part of the Fuji Addy model. There are 52 bikes that carry this model name. Take a sneak peek at all Fuji Addy bikes models from 2014, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Addy Race 27-5 1.7 has a weight of 14.67 kg (32.34 lbs). In short, the average Crosscountry bike weight is 18.31% lower than this one.
Addy Race 27-5 1.7 components
Fork
Fuji Addy Race 27-5 1.7 2014 bike is equipped with the SunTour XCT fork, and has 80mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Addy Race 27-5 1.7 2014 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Addy Race 27-5 1.7 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
