Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 50mm -
Fork SunTour
-
Groupset X3, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW Fuji Altair 1 Aluminum with Rect shaped down tube and top tube, standard head tube and seat tube, double water bottle mounts
Suspension Fork
SR Suntour SF-M2025 w/Preload adjust, 50mm travel
Drivetrain
Rear Derailleur
SRAM X.3
Front Derailleur
Shimano FD-C050, 31.8mm
Shift Levers
SRAM X.3 Trigger, 7sp
Cassette
Shimano TZ-31, 14-34T 7-speed
Crank
Fuji Forged Alloy, 22/32/42T w/Chainguard
Bottom Bracket
Semi Sealed Cartridge ST
Chain
KMC Z-51, 7speed
Pedals
FPD ATB
Wheels
Front Hub
Fuji oversized sealed Al, 36H w/QR
Rear Hub
Fuji oversized sealed Al, 36H w/QR
Rims
Stars Circle J-19SD Double Wall Al
Spokes
14G Stainless Steel
Tires
Kenda K-50, 26 x 2.125"
Brakes
Brakes
ProMax Aluminum linear pull
Brake Levers
ProMax forged Aluminum lever
Cockpit
Stem
Fuji Steel w/Removable Alloy faceplate
Handlebar
Fuji ATB steel riser
Headset
VP A-88 Aheadset threadless w/30mm spacers
Seat
Saddle
Fuji MTB
Seatpost
Fuji Alloy 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | LG | SM | MD |
|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 593 mm | 614 mm | 490 mm | 640 mm | 620 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 533 mm | 553 mm | 573 mm | 578 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 73 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 533 mm | 432 mm | 482 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 150 mm | 130 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 628 mm | 428 mm | 428 mm |
| Wheelbase | 1017 mm | 1038 mm | 1114 mm | 1063 mm | 1043 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 688 mm | 713 mm | 789 mm | 737 mm | 765 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

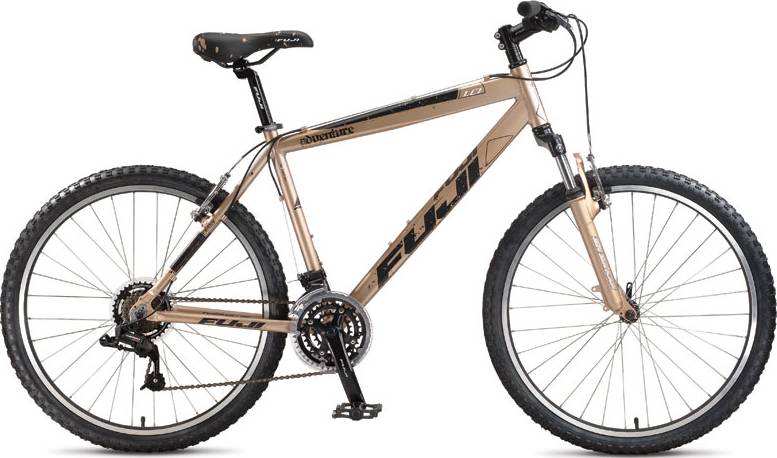

ADVENTURE 1.0-USA belongs to the Fuji Adventure model. Fuji released 25 bikes variations of this model so far. You can easily view all of the Fuji Adventure bikes models from 2010, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji ADVENTURE 1.0-USA it’s weighing 14.33 kg (31.59 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.47% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on ADVENTURE 1.0-USA are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
