Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 60mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL alloy front and rear triangle, cold-forged dropout and replaceable hanger
Suspension Fork
Zoom CH-565 w/ 60mm travel
Drivetrain
Rear Derailleur
Shimano Tourney, 7-speed
Front Derailleur
Shimano Tourney, 31.8mm
Shift Levers
Shimano EF41, EZ Fire, 7-speed
Cassette
Shimano freewheel, 14-28T, 7-speed
Crank
Prowheel, alloy, 48/38/28T w/ chainguard
Bottom Bracket
Semi-cartridge bearing
Chain
KMC Z50, 7-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD16 rims, Formula DC-20 front, DC-31 rear disc hub, 14g black spokes
Tires
Vera Eos, 27.5" x 2.1", 30tpi
Brakes
Brakes
Tektro M-280, mechanical disc, 160mm rotors
Brake Levers
Shimano EF41, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, forged aluminum, +/-20°
Handlebar
Steel riser bar, 25.4mm, 6 sweep, 30mm rise
Grips
Single density Kraton
Headset
1 1/8", caged bearings
Seat
Saddle
Padded MTB, steel rail
Seatpost
Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.46 mm | 1.39 mm | 1.42 mm |
| Front Center | 609 mm | 617 mm | 636 mm | 652 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 57 mm | 57 mm | 39 mm | 39 mm |
| Stack | 562 mm | 562 mm | 562 mm | 586 mm |
| Reach | 378 mm | 386 mm | 405 mm | 413 mm |
| Top Tube Length | 550 mm | 558 mm | 577 mm | 593 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 480 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1057 mm | 1065 mm | 1084 mm | 1100 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 726 mm | 751 mm | 775 mm | 810 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 187 cm |
About this model

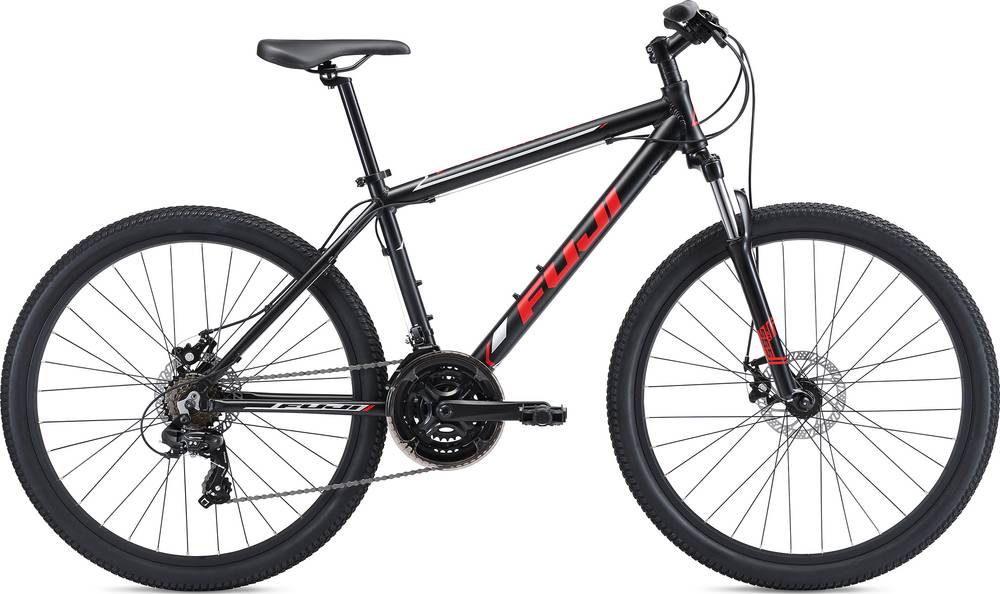

Adventure 27.5 is a Fuji Adventure model. Fuji launched 25 bikes of this model so far. Take a sneak peek at all Fuji Adventure bikes models from 2018, by clicking here.
Model range prices
Fuji Adventure 27.5 – ST 2018 is the most affordable bike of this model and has a price of 379$. On the other hand, Fuji Adventure 27.5 2018, is the most expensive and costs 379$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Fuji Adventure 27.5 price was 379$. If we compare this with the average Hybrid bike cost we notice that the price is 48.28% smaller.
Overview of components
Wheels size
As for the wheels, Fuji Adventure 27.5 2018, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Adventure 27.5 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
