Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW Fuji Altair 1 Aluminum with Rect shaped down tube and top tube, standard head tube and seat tube, double water bottle mounts
Suspension Fork
Fuji Rigid Steel, 0 mm travel
Drivetrain
Rear Derailleur
Shimano TX-31 long cage
Front Derailleur
Shimano FD-C0505, 31.8mm
Shift Levers
SRAM MRX Twist shifter, 21-speed
Cassette
Shimano TZ-31, 14-34T 7-speed
Crank
SunRace FCM2, 24/34/42T w/Chainguard
Bottom Bracket
Semi Sealed Cartridge ST
Chain
SunRace CNM-54, 7speed
Pedals
FPD ATB
Wheels
Front Hub
Fuji oversized sealed Al, 36H w/QR
Rear Hub
Fuji oversized sealed Al, 36H w/QR
Rims
Alex IC-1000 Al w/ Ground sidewall
Spokes
14G UCP Steel
Tires
Kenda ATB, 26 x 2.125"
Brakes
Brakes
ProMax Aluminum linear pull
Brake Levers
ProMax forged Aluminum
Cockpit
Stem
Fuji forged Aluminum w/removable faceplate
Handlebar
Fuji ATB steel riser
Headset
VP A-88 Aheadset threadless w/30mm spacers
Seat
Saddle
Fuji MTB
Seatpost
Fuji Alloy 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | mm | 264 mm | 264 mm | 264 mm |
| Front Center | 593 mm | 599 mm | 614 mm | 624 mm | 635 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 533 mm | 538 mm | 553 mm | 563 mm | 573 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 130 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1012 mm | 1018 mm | 1033 mm | 1043 mm | 1054 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 688 mm | 713 mm | 737 mm | 765 mm | 789 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

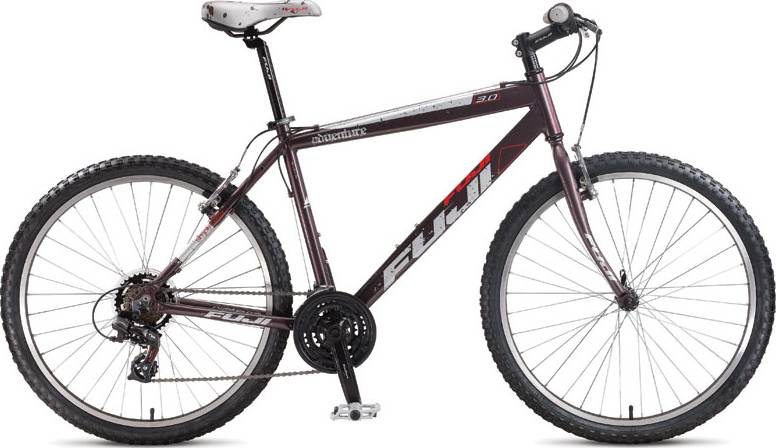

ADVENTURE 3.0-USA is a Fuji Adventure model. 25 bikes variations carry this model name so far. Take a sneak peek at all Fuji Adventure bikes models from 2010, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.21 kg (29.12 lbs), Fuji bike is slightly lighter than average. In short, the average Hybrid bike weight is 4.84% higher than this one.
ADVENTURE 3.0-USA components
Fork material
ADVENTURE 3.0-USA has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Fuji ADVENTURE 3.0-USA 2010, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji ADVENTURE 3.0-USA has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
