Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D6 high modulus carbon w/ high compaction molding system, integrated head tube w/ 1 1/2" lower, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-330 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2, 10-speed
Front Derailleur
Shimano Dura Ace Di2, braze-on mount
Shift Levers
Shimano Dura Ace Di2 Electronic STI shifter/brake combo, 20-speed Flight Deck compatible
Cassette
Shimano Ultegra, 11-25T 10-speed
Crank
Rotor 3D+F, 39/53T
Bottom Bracket
Rotor Press-Fit BB86/30 sealed cartridge bearing
Chain
KMC X10, 10-speed
Wheels
Rims
Oval 745 carbon/alloy, 45mm rims, DT Swiss Revoluion spokes 20/24H, precision sealed bearing hubs
Tires
Hutchinson Atom Comp, 700x23c, folding
Brakes
Brakes
Oval 700 forged & CNC'd w/ cartridge pads
Brake Levers
Shimano Dura Ace Di2 STI
Cockpit
Stem
Oval 700 3D forged 7050 alloy, 31.8mm, +/-6 degrees
Handlebar
Oval 910 full carbon w/ ergo drops, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ carbon top cover
Seat
Saddle
Selle Italia SL Kit Carbonio w/ tubular manganese rails
Seatpost
Oval 900 carbon 2-bolt, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.428 mm | 1.457 mm | 1.478 mm | 1.492 mm | 1.512 mm |
| Front Center | 58 mm | 58 mm | 58 mm | 59 mm | 61 mm | 61 mm |
| Rake | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Trail | 103 mm | 100 mm | 96 mm | 93 mm | 93 mm | 90 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 540 mm | 560 mm | 580 mm | 590 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

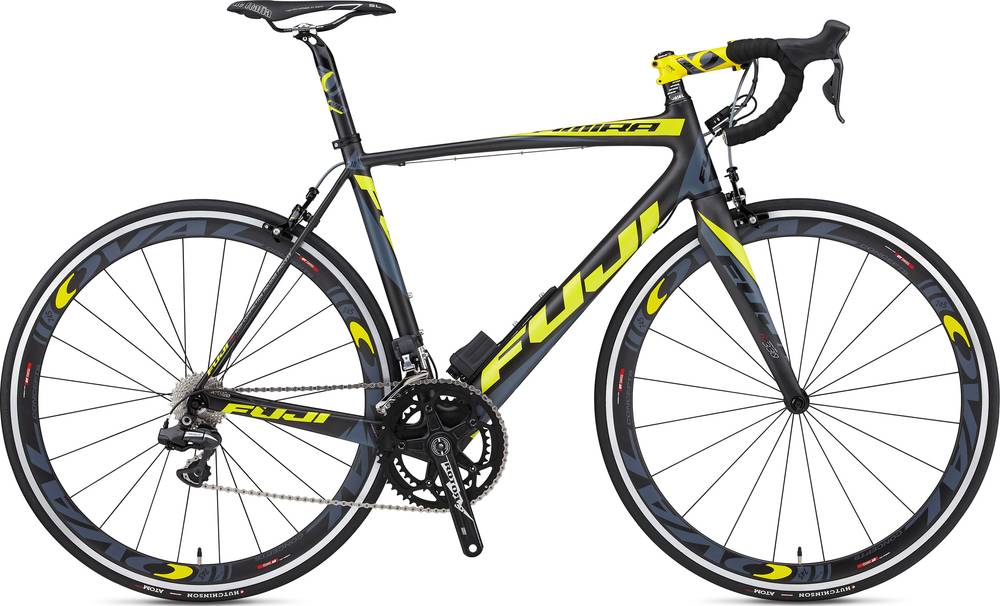

Altamira 1.0 Di2 DA completes the Fuji Altamira model. 75 bikes variations carry this model name so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Altamira 1.0 Di2 DA components
Fork material
Altamira 1.0 Di2 DA has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Fuji Altamira 1.0 Di2 DA 2012, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Altamira 1.0 Di2 DA is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
