Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-770 carbon fork blades, w/ tapered alloy steerer
Drivetrain
Rear Derailleur
Shimano Ultegra, 11-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra, STI, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Oval Concepts 520, forged 6066 arms, 52/36T
Bottom Bracket
Oval Concepts, BB86 press-fit
Chain
KMC X11 w/ Missing Link, 11-speed
Pedals
N/A
Wheels
Rims
Vera Corsa DPM27, double wall, 24/28h, Formula road hubs
Tires
Vittoria Zaffiro, 700 x 25, 26tpi
Brakes
Brakes
Alloy dual pivot
Brake Levers
Shimano Ultegra, STI, 11-speed
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 300S, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 570 mm | 576 mm | 575 mm | 585 mm | 600 mm | 609 mm |
| Rake | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Trail | 61.9 mm | 58.8 mm | 55.7 mm | 52.6 mm | 52.6 mm | 49.5 mm |
| Stack | 523 mm | 534 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 369 mm | 376 mm | 376 mm | 385 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 983 mm | 982 mm | 992 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 789 mm | 807 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

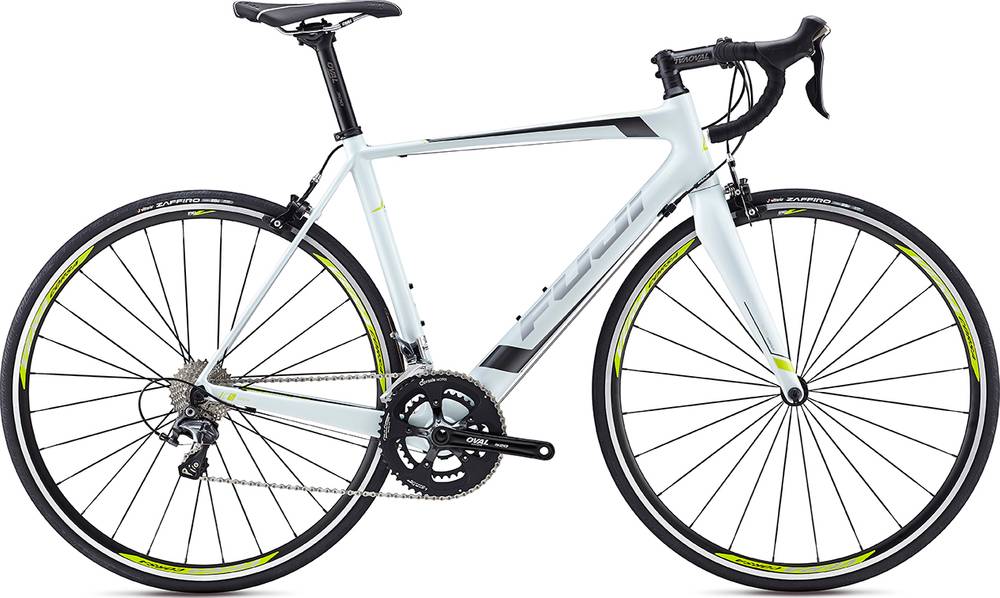

Altamira 1.1 belongs to the Fuji Altamira model. Fuji launched 75 bikes of this model so far. Take a sneak peek at all Fuji Altamira bikes models from 2016, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Altamira 1.1 has a weight of 9.29 kg (20.48 lbs). To sum up, it’s 36.22% heavier than the average weight of Race bikes.
Altamira 1.1 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Altamira 1.1 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Altamira 1.1 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
