Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 ultra high-modulus carbon w/ High Compaction Molding System, integrated head tube w/ 1 1/2" lower, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-330 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Dura Ace 9000, 11-speed
Front Derailleur
Shimano Dura Ace 9000, braze-on mount
Shift Levers
Shimano Dura Ace 9000 STI, 22-speed
Cassette
Shimano Dura Ace 9000, 11-25T, 11-speed
Crank
Shimano Dura Ace 9000, 52/36T, 11-speed
Bottom Bracket
Shimano Dura Ace press-fit BB86 sealed bearing
Chain
Shimano Dura Ace 9000, 11-speed
Pedals
N/A
Wheels
Rims
Oval W535 alloy clincher, 35mm rim - 700c
Tires
Vittoria Rubino Pro Slick, 150 tpi, 700c x 23mm, folding
Brakes
Brakes
Shimano Dura Ace 9000
Brake Levers
Shimano Dura Ace STI 9000
Cockpit
Stem
Oval 713 3D-forged 7050 alloy, 31.8mm, +/- 6 degrees
Handlebar
Oval R910 carbon, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval R700 w/ CrMo-Ti hollow rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 582 mm | 581 mm | 591 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 46 mm | 43 mm | 40 mm | 37 mm | 38 mm | 35 mm |
| Stack | 523 mm | 534 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 369 mm | 376 mm | 376 mm | 385 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 983 mm | 982 mm | 992 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 789 mm | 807 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

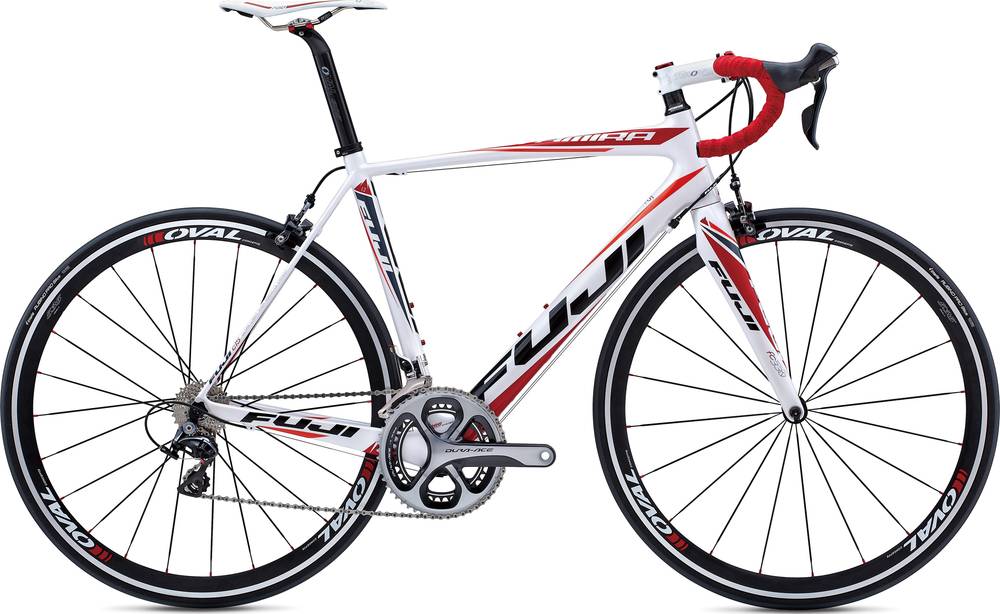

Altamira 1.3 completes the Fuji Altamira model. Fuji released 75 bikes variations of this model so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Altamira 1.3 it’s weighing 7.27 kg (16.03 lbs). At this weight, is a bit heavier than average. In other words, this model is 6.6% heavier than the average Race bike.
Altamira 1.3 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Altamira 1.3 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Altamira 1.3 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
