Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C4 carbon w/ integrated head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, 10-speed
Front Derailleur
Shimano Ultegra Di2, braze-on mount
Shift Levers
Shimano Ultegra Di2 Electronic STI shifter/brake, 20-speed, Flight Deck compatible
Cassette
Shimano 105, 11-28T 10-speed
Crank
Rotor 3D+F, 34/50T
Bottom Bracket
Rotor Press-Fit BB86/30 sealed cartridge bearing
Chain
KMC X10, 10-speed
Wheels
Rims
Oval 330 aero alloy, 30mm rims, DT Swiss Champion spokes 20/24H, precision ground hubs
Tires
Hutchinson Equinox, 700x23c, folding
Brakes
Brakes
Oval 500 forged alloy dual pivot w/ cartridge pads
Brake Levers
Shimano Ultegra Di2 STI
Cockpit
Stem
Oval 700 3D forged 7050 alloy, 31.8mm, +/-6 degrees
Handlebar
Oval 710 double-butted 7050 alloy, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ alloy top cover
Seat
Saddle
Selle Italia XR w/ FeC alloy rails
Seatpost
Oval 700 alloy 2-bolt, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.428 mm | 1.457 mm | 1.478 mm | 1.492 mm | 1.512 mm |
| Front Center | 58 mm | 58 mm | 58 mm | 59 mm | 61 mm | 61 mm |
| Rake | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Trail | 103 mm | 100 mm | 96 mm | 93 mm | 93 mm | 90 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 540 mm | 560 mm | 580 mm | 590 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

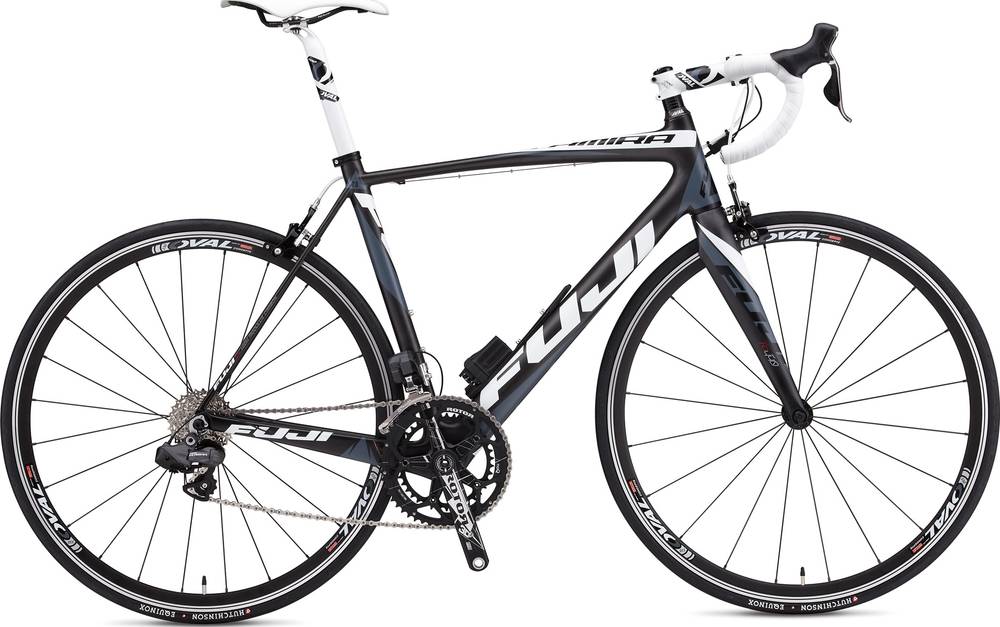

Altamira 2.0 Di2 UL is a Fuji Altamira model. 75 bikes variations carry this model name so far. Take a sneak peek at all Fuji Altamira bikes models from 2012, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Altamira 2.0 Di2 UL 2012 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira 2.0 Di2 UL has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
