Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra, 11-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra, STI, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Oval Concepts 720, hollow forged 6066 arms, 52/36T
Bottom Bracket
Shimano, BB86 press-fit
Chain
KMC X11L, 11-speed
Pedals
N/A
Wheels
Rims
Oval 527 aero alloy clincher, 18 / 24h
Tires
Vittoria Zaffiro Pro Slick, 700 x 23, 60tpi, folding
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra, STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R500 w/ chromoly hollow rails
Seatpost
Oval Concepts 905, carbon wrapped alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 582 mm | 581 mm | 591 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 46 mm | 43 mm | 40 mm | 37 mm | 38 mm | 35 mm |
| Stack | 523 mm | 534 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 369 mm | 376 mm | 376 mm | 385 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 983 mm | 982 mm | 992 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 789 mm | 807 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

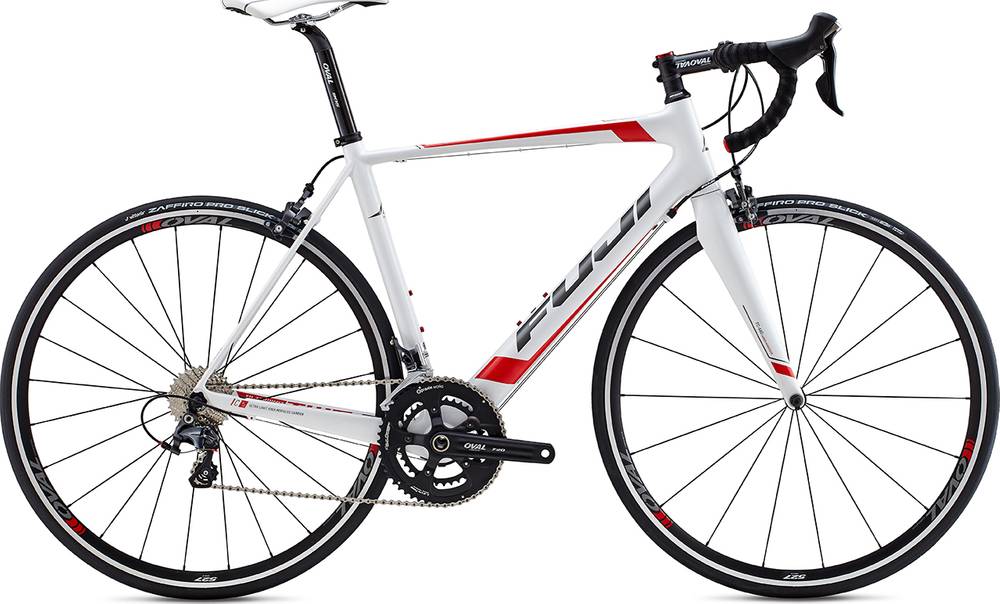

Altamira 2.3 is part of the Fuji Altamira model. There are 75 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Altamira 2.3 it’s weighing 7.78 kg (17.15 lbs). At this weight, is considerably heavier than average. In other words, this model is 14.08% heavier than the average Race bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Altamira 2.3 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira 2.3 has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
