Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra, 10-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra STI shifter/brake combo, Flight Deck-compatible, 20-speed
Cassette
Shimano 105, 11-28T, 10-speed
Crank
Rotor 3DF, 50/34T
Bottom Bracket
Rotor press-fit BB86-30 sealed bearing
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Oval 327 aero alloy clincher, 20/24H sealed bearing hubs, stainless bladed spokes
Tires
Vittoria Zaffiro Pro Slick, 60 tpi, 700c x 23mm, folding
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra STI
Cockpit
Stem
Oval 713 3D-forged 7050 alloy, 31.8mm, +/- 6 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval R700 w/ CrMo-Ti hollow rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 582 mm | 581 mm | 591 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 46 mm | 43 mm | 40 mm | 37 mm | 38 mm | 35 mm |
| Stack | 523 mm | 534 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 369 mm | 376 mm | 376 mm | 385 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 983 mm | 982 mm | 992 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 789 mm | 807 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

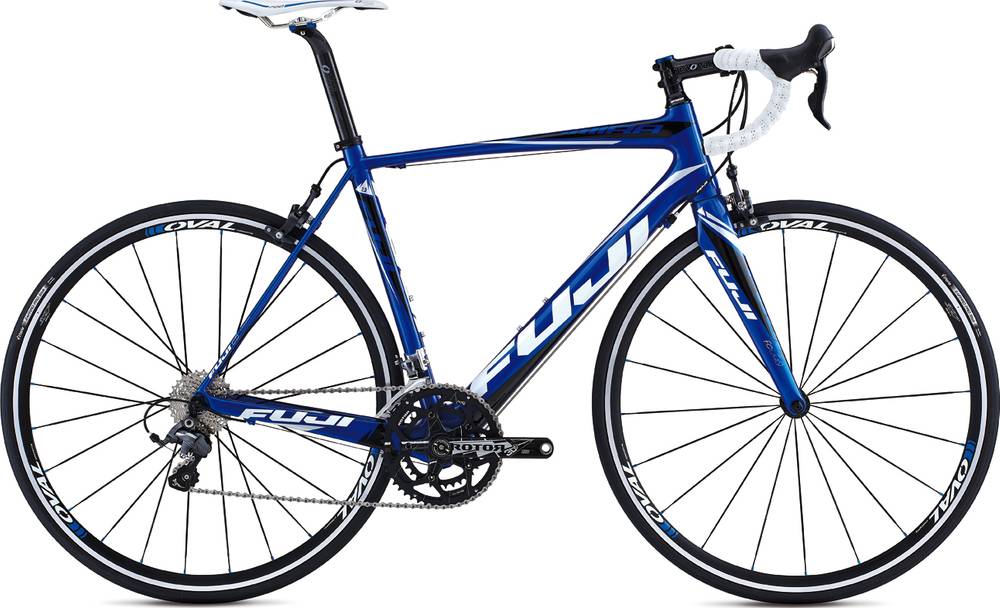

Altamira 2.3 C is a Fuji Altamira model. There are 75 bikes that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Race bikes
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji Altamira 2.3 C it’s weighing 7.78 kg (17.15 lbs). At this weight, is considerably heavier than average. In other words, this model is 14.08% heavier than the average Race bike.
Overview of components
Fork material
Altamira 2.3 C has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Fuji Altamira 2.3 C 2013, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Altamira 2.3 C is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
