Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C4 carbon w/ integrated head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-770 carbon bladed w/tapered alloy steerer
Drivetrain
Rear Derailleur
Shimano 105, 10-speed
Front Derailleur
Shimano 105, braze-on mount
Shift Levers
Shimano 105 STI shifter/brake combo, 20-speed Flight Deck compatible
Cassette
Shimano Tiagra, 12-28T 10-speed
Crank
Oval 700 alloy compact, 34/50T
Bottom Bracket
Press-Fit BB86 sealed cartridge bearing
Chain
KMC X10, 10-speed
Wheels
Rims
Oval 330 aero alloy, 30mm rims, DT Swiss Champion spokes 20/24H, precision ground hubs
Tires
Hutchinson Nitro, 700x23c
Brakes
Brakes
Oval 500 forged alloy dual pivot w/ cartridge pads
Brake Levers
Shimano 105 STI
Cockpit
Stem
Oval 300 3D forged 6061 alloy, 31.8mm, +/-6 degrees
Handlebar
Oval 300S double-butted 6061 alloy, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ alloy top cover
Seat
Saddle
Selle Italia X1 w/ FeC alloy rails
Seatpost
Oval 300 alloy 2-bolt, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.428 mm | 1.457 mm | 1.478 mm | 1.492 mm | 1.512 mm |
| Front Center | 58 mm | 58 mm | 58 mm | 59 mm | 61 mm | 61 mm |
| Rake | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Trail | 103 mm | 100 mm | 96 mm | 93 mm | 93 mm | 90 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 540 mm | 560 mm | 580 mm | 590 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

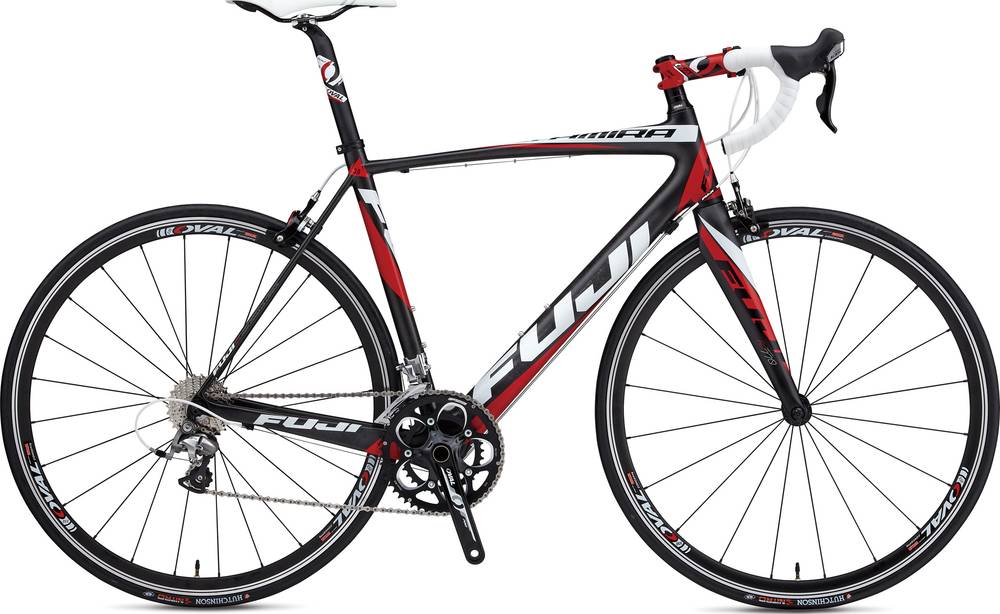

About this model
Altamira 3.0 is a Fuji Altamira model. Fuji launched 75 bikes of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Altamira 3.0 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira 3.0 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
