Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C-4 carbon w/ Integrated head tube w/1 1/2" lower, Oversized 34.9mm round seat tube Oversized PIIS BB-86 shell, Double water bottle mounts.
Suspension Fork
FC-770 Carbon w/Tapered Alloy steerer & carbon drop out
Drivetrain
Rear Derailleur
Shimano 105, 10sp
Front Derailleur
Shimano 105, F-Type-Braze On Mount
Shift Levers
Shimano 105 STI shifter/brake combo, 20-speed Flight Deck compatible
Cassette
Shimano 105, 11-28T 10sp
Crank
Shimano 105 Hollow Tech II, 34/50T
Bottom Bracket
Shimano Press In Bearing system
Chain
Shimano 105, 10sp
Wheels
Rims
Oval W-524 Alloy Clincher Wheelset, 24mm rim-700c, Sealed bearings
Tires
Vittoria Zaffiro II, 700x23c, Wire Bead
Brakes
Brakes
Oval RB-500 Forged Alloy Dual Pivot w/Cartridge Pads
Brake Levers
Shimano 105 STI
Cockpit
Stem
Oval R-300 Alloy 31.8mm, +/-6 degrees
Handlebar
Oval R-300 Alloy, 31.8mm
Headset
FSA No. 42 1 1/8"U - 1 1/2"L Integrated w/Alloy Top Cover
Seat
Saddle
Oval SR-500 Sweep w/ CrMo Rails
Seatpost
Oval R-300 Alloy Two bolt 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 270.5 mm | 270.5 mm | 270.5 mm | 270.5 mm | 270.5 mm | 270.5 mm |
| Front Center | 576 mm | 582 mm | 581 mm | 591 mm | 605 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 45 mm | 43 mm | 40 mm | 38 mm | 38 mm | 35 mm |
| Stack | 522.8 mm | 534.1 mm | 545.5 mm | 566.4 mm | 585.6 mm | 606.7 mm |
| Reach | 369.1 mm | 375.7 mm | 376.4 mm | 385.2 mm | 394.5 mm | 403.3 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 982 mm | 981 mm | 991 mm | 1006 mm | 1015 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 727 mm | 747 mm | 766 mm | 788 mm | 806 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

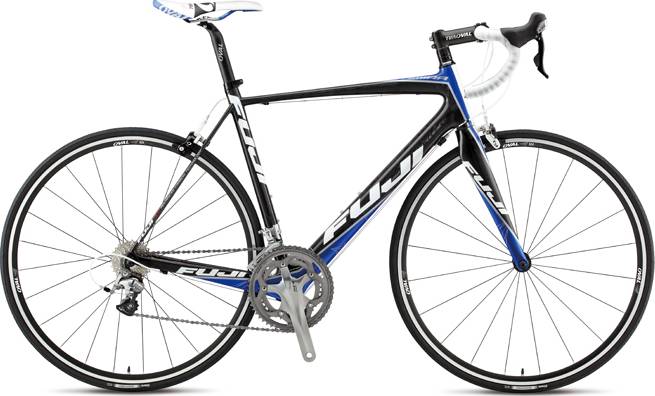

Altamira 3.0 (Compact) completes the Fuji Altamira model. Fuji launched 75 bikes of this model so far. Check out the entire range from 2011 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Altamira 3.0 (Compact) components
Fork material
Altamira 3.0 (Compact) has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Altamira 3.0 (Compact) bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Fuji Altamira 3.0 (Compact) bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
