Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D6 high modulus carbon w/ shaped TT for portaging, integrated tapered head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-330 carbon monocoque w/ tapered steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Dura Ace, 10-speed
Front Derailleur
Shimano Dura Ace, braze-on mount
Shift Levers
Shimano Dura Ace STI shifter/brake combo, 20-speed Flight Deck compatible
Cassette
Shimano Ultegra, 11-28T 10-speed
Crank
FSA SL-K light cross, 36/46T
Bottom Bracket
FSA BB-CF86 Press-Fit sealed bearing
Chain
KMC X10 SL Ti-Plated, 10-speed
Wheels
Rims
Oval 745 carbon/alloy, 45mm rims, DT Swiss Revoluion spokes 18/24H, sealed bearing hubs
Tires
Hutchinson Bulldog CX, 700x34c
Brakes
Brakes
Avid Shorty Ultimate
Brake Levers
Shimano Dura Ace STI
Cockpit
Stem
Oval 900 carbon/alloy matrix, 31.8mm, +/-6 degrees
Handlebar
Oval 930 full carbon, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ alloy top cover
Seat
Saddle
Selle Italia SL Kit Carbonio w/ tubular manganese rails
Seatpost
Oval 900 carbon 2-bolt, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.455 mm | 1.513 mm | 1.526 mm | 1.532 mm | 1.544 mm |
| Front Center | 59 mm | 60 mm | 59 mm | 60 mm | 62 mm | 63 mm |
| Rake | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Trail | 114 mm | 109 mm | 106 mm | 107 mm | 106 mm | 106 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

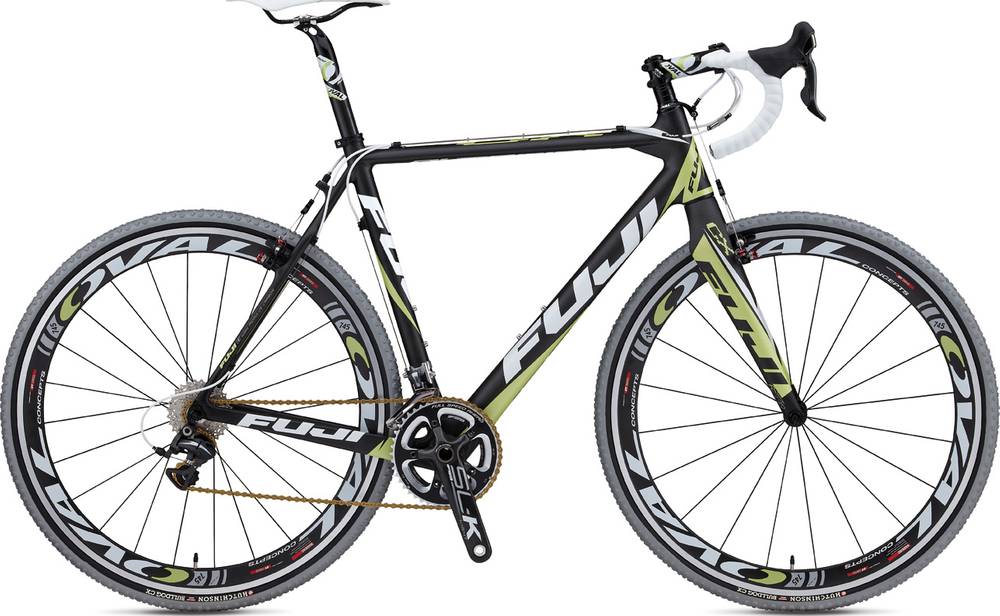

Altamira CX 1.0 is part of the Fuji Altamira model. Fuji launched 75 bikes of this model so far. Take a sneak peek at all Fuji Altamira bikes models from 2012, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross bikes
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Altamira CX 1.0 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Altamira CX 1.0 model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Altamira CX 1.0 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
