Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force 22 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus carbon disc-only frame w/ shaped top tube for portaging, integrated tapered head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-330 Cross carbon monocoque w/ post-mount disc tabs, tapered steerer & carbon dropout
Drivetrain
Rear Derailleur
SRAM Force22, 11-speed
Front Derailleur
SRAM Force22, braze-on mount
Shift Levers
SRAM Force22 Double Tap, 22-speed
Cassette
SRAM PG-1170, 11-28T, 11-speed
Crank
Oval 720 hollow forged, 46/36T
Bottom Bracket
Oval BB86 press-fit
Chain
KMC X11, 11-speed
Pedals
N/A
Wheels
Rims
Oval 527 disc clincher wheelset, 135mm
Tires
Challenge Grifo clincher, 60 tpi, 700c x 32mm, folding
Brakes
Brakes
Avid BB7 mechanical disc for road, 160mm / 140mm rotors
Brake Levers
SRAM Force22 Double Tap
Cockpit
Stem
Oval 313 3D-forged 6061 alloy, 31.8mm, +/- 7 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval R700 w/ CrMo-Ti hollow rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.5 mm | 1.52 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 589 mm | 594 mm | 585 mm | 600 mm | 616 mm | 631 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 68 mm | 64 mm | 64 mm | 64 mm | 65 mm |
| Stack | 536 mm | 557 mm | 568 mm | 587 mm | 606 mm | 625 mm |
| Reach | 383 mm | 387 mm | 378 mm | 387 mm | 396 mm | 406 mm |
| Top Tube Length | 525 mm | 540 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1010 mm | 1015 mm | 1006 mm | 1021 mm | 1037 mm | 1052 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 765 mm | 789 mm | 803 mm | 820 mm | 842 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

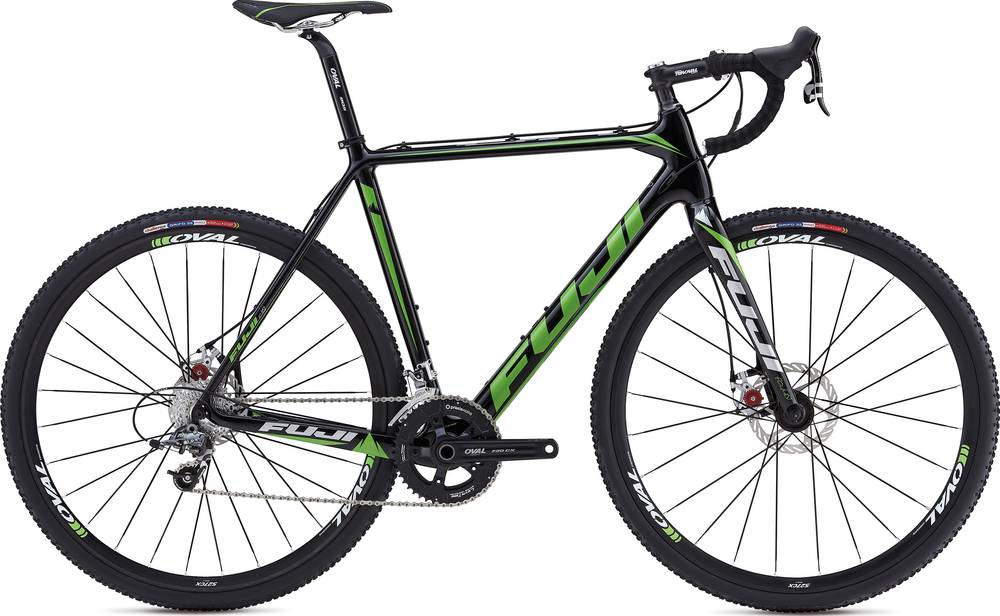

Altamira CX 1.3 completes the Fuji Altamira model. 75 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, even if your budget is less than the average, you might still be able to get a top-quality Cyclocross bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Cyclocross bikes average weight
Cyclocross bikes have an average weight of 8.79 kg (19.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Altamira CX 1.3 weighs 8.59 kg (18.94 lbs) and is slightly lighter than the average. To sum up, it’s 2.33% lighter than the average weight of Cyclocross bikes.
Altamira CX 1.3 components
Fork material
Altamira CX 1.3 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Altamira CX 1.3 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Altamira CX 1.3 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
