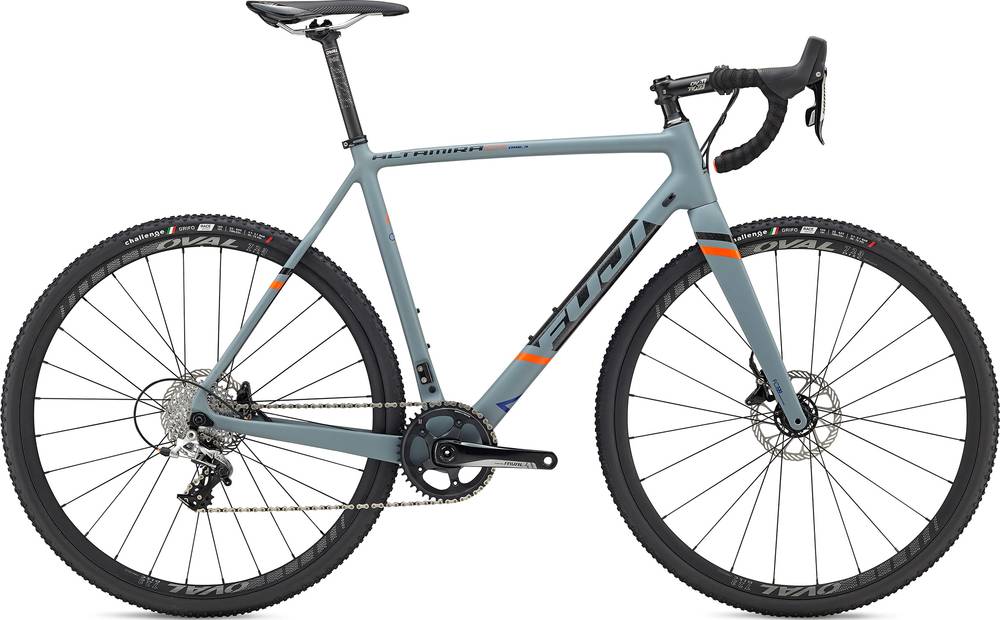

Fuji Altamira CX 1.3 2018
2018 Road
Estimate price |
2,999$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 high-modulus carbon, flat mount disc frame w/ shaped top tube for portaging, integrated tapered head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, PF30 BB shell, double water bottle mounts, oversized chainstays, carbon dropout w/ replaceable hanger
Suspension Fork
FC-330 Cross carbon monocoque, 12mm thru-axle w/ flat-mount disc system, tapered steerer
Drivetrain
Rear Derailleur
SRAM Rival 1, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM Rival DoubleTap w/ hydraulic reservior, 11-speed
Cassette
SRAM PG-1130, 11-32T, 11-speed
Crank
SRAM Rival 1, 42T
Bottom Bracket
SRAM, PF30
Chain
KMC X11, 11-speed w/ MissingLink
Pedals
N/A
Wheels
Rims
Oval Concepts 723 Disc, Centerlock hubs, 100x12mm & 142x12mm thru axles, 700c 24/28H tubeless compatible rims
Tires
Challenge Grifo 700 x 33c, 120tpi, folding
Brakes
Brakes
SRAM Rival hydraulic disc for road, 160mm / 160mm rotors
Brake Levers
SRAM Rival, DoubleTap w/ hydraulic reservior
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval Concepts 438, steel rail
Seatpost
Oval Concepts 905, carbon & alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 289 mm | 289 mm | 287 mm | 287 mm |
| Front Center | 590 mm | 602 mm | 602 mm | 603 mm | 608 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 76.2 mm | 76.2 mm | 72.92 mm | 66.4 mm | 66.4 mm | 63.17 mm |
| Stack | 526 mm | 547 mm | 533 mm | 544 mm | 557 mm | 573 mm |
| Reach | 373 mm | 377 mm | 381 mm | 383 mm | 388 mm | 393 mm |
| Top Tube Length | 505 mm | 520 mm | 530 mm | 540 mm | 555 mm | 570 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71.3 ° | 72 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1004 mm | 1016 mm | 1016 mm | 1017 mm | 1021 mm | 1026 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 55 mm | 55 mm | 57 mm | 57 mm |
| Standover Height | 767 mm | 784 mm | 797 mm | 811 mm | 825 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Altamira CX 1.3 is part of the Fuji Altamira model. Fuji released 75 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Fuji Altamira CX 1.3 2018 is the cheapest bike model and costs 2999$. Fuji Altamira CX 1.1 2018 is the most expensive one and costs 4399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 2999$. Comparing this to the average Cyclocross bike price, we see that the price is 49.06% more expensive.
Cyclocross bikes average weight
If we make a quick analysis of the average weight of a Cyclocross bike, we get 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.1 kg (17.86 lbs), the Altamira CX 1.3 model is a bit lighter than average. To sum up, it’s 8.52% lighter than the average weight of Cyclocross bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Altamira CX 1.3 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira CX 1.3 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
