Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-770 carbon fork blades w/ tapered alloy steerer
Drivetrain
Rear Derailleur
Shimano Ultegra, 11-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra STI shifter/brake combo, Flight Deck-compatible, 22-speed
Cassette
Shimano Ultegra, 11-28T, 11-speed
Crank
Oval 520 forged alloy, 52/36T
Bottom Bracket
Press-fit BB86 sealed bearing
Chain
KMC X11L, 11-speed
Pedals
N/A
Wheels
Rims
Oval 527 aero alloy clincher, 20/24H sealed bearing hubs, stainless bladed spokes
Tires
Vittoria Zaffiro Pro Slick, 60 tpi, 700c x 23mm, folding
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra STI
Cockpit
Stem
Oval 313 3D-forged 6061 alloy, 31.8mm, +/- 6 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Prologo Scratch Pro w/ CrMo rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 582 mm | 581 mm | 591 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 46 mm | 43 mm | 40 mm | 37 mm | 38 mm | 35 mm |
| Stack | 523 mm | 534 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 369 mm | 376 mm | 376 mm | 385 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 983 mm | 982 mm | 992 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 789 mm | 807 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

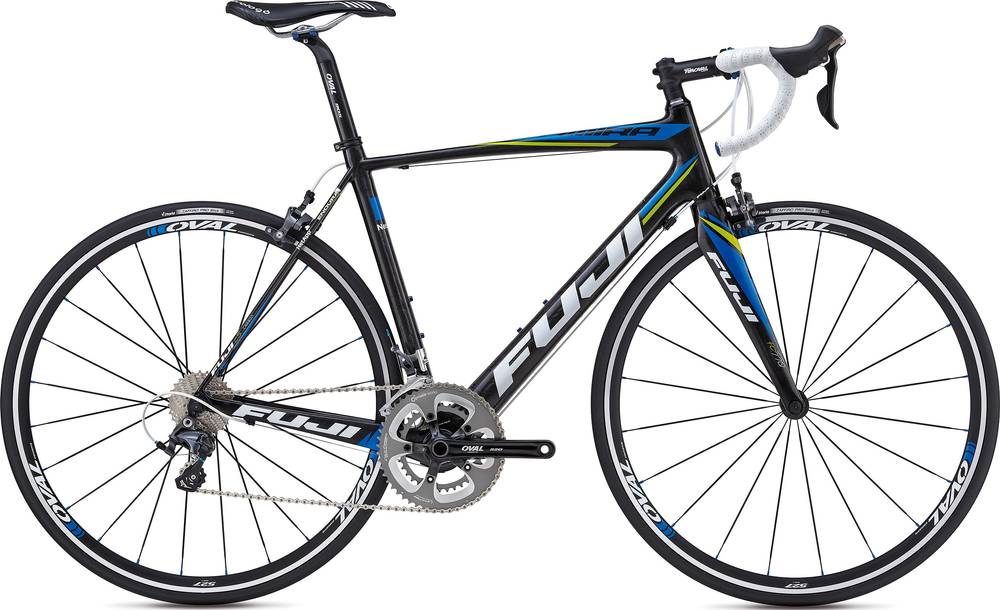

Altamira NetApp Team Replica is a Fuji Altamira model. Fuji released 75 bikes variations of this model so far. Take a sneak peek at all Fuji Altamira bikes models from 2014, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Cyclocross bikes average weight
Cyclocross bikes have an average weight of 8.79 kg (19.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fuji Altamira NetApp Team Replica it’s weighing 8.14 kg (17.95 lbs). At this weight, is a bit lighter than average. In other words, this model is 7.99% lighter than the average Cyclocross bike.
Altamira NetApp Team Replica components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Altamira NetApp Team Replica 2014 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira NetApp Team Replica has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
