Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 582 mm | 581 mm | 591 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 46 mm | 43 mm | 40 mm | 37 mm | 38 mm | 35 mm |
| Stack | 523 mm | 534 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 369 mm | 376 mm | 376 mm | 385 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 977 mm | 983 mm | 982 mm | 992 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 789 mm | 807 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

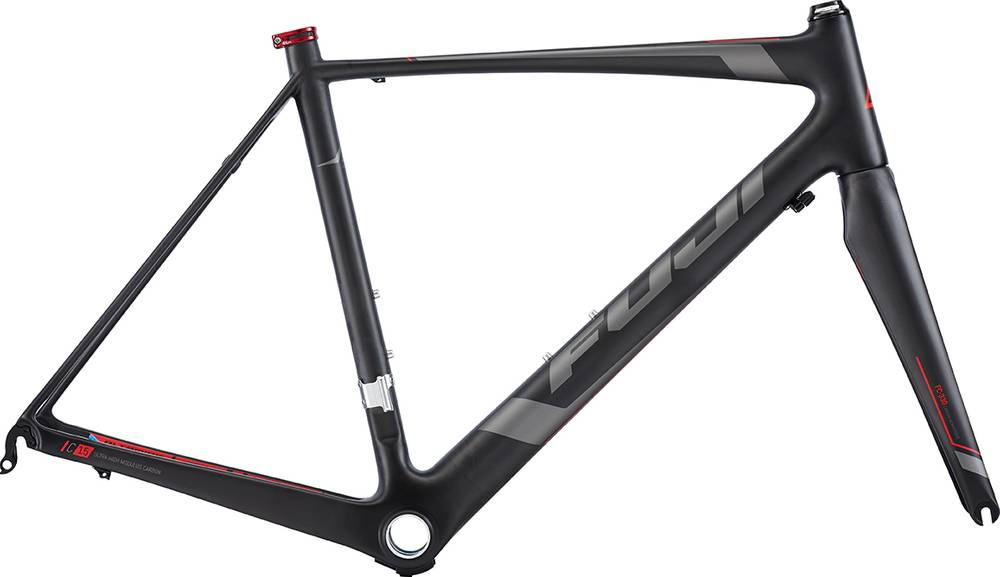

Altamira SL Frameset completes the Fuji Altamira model. 75 frames variations carry this model name so far. Take a sneak peek at all Fuji Altamira frames models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
