Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C4 carbon w/ integrated head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra, 10-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra STI shifter/brake combo, 20-speed Flight Deck compatible
Cassette
Shimano 105, 11-28T 10-speed
Crank
Rotor 3D+F, 39/53T
Bottom Bracket
Rotor Press-Fit BB86/30 sealed cartridge bearing
Chain
KMC X10 Ni-Ti Plated, 10-speed
Wheels
Rims
Oval 330 aero alloy, 30mm rims, DT Swiss Champion spokes 20/24H, precision ground hubs
Tires
Hutchinson Equinox, 700x23c, folding
Brakes
Brakes
TRP R820 dual pivot stainless hardware w/ cartridge pads
Brake Levers
Shimano Ultegra STI
Cockpit
Stem
Oval 300 3D forged 6061 alloy, 31.8mm, +/-6 degrees
Handlebar
Oval 300S double-butted 6061 alloy, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ alloy top cover
Seat
Saddle
Oval S500 road saddle with CrMo rails
Seatpost
Oval 300 alloy 2-bolt, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.428 mm | 1.457 mm | 1.478 mm | 1.492 mm | 1.512 mm |
| Front Center | 58 mm | 58 mm | 58 mm | 59 mm | 61 mm | 61 mm |
| Rake | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Trail | 103 mm | 100 mm | 96 mm | 93 mm | 93 mm | 90 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 540 mm | 560 mm | 580 mm | 590 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

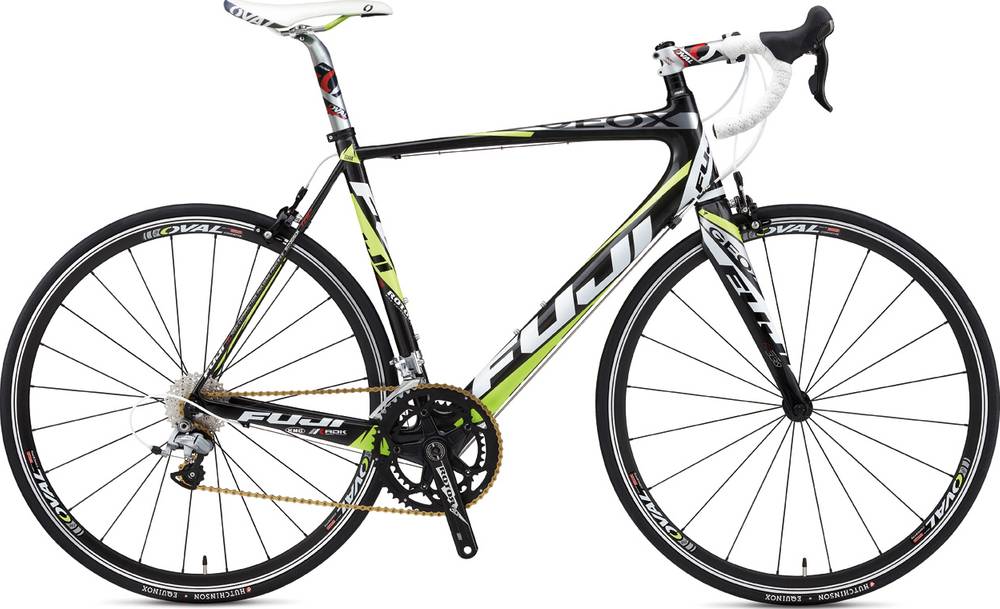

Altamira Team Replica is a Fuji Altamira model. 75 bikes variations carry this model name so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Altamira Team Replica components
Fork material
Altamira Team Replica has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Altamira Team Replica bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira Team Replica has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
