Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, FSA -
Suspension Hardtail -
Battery Bosch Power Pack 500 w/ charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL alloy w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube
Suspension Fork
Rock Shox Recon Gold RL 29 w/ remote lockout, tapered alloy steerer, 15mm thru axle, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT Ispec, Rapid Fire, 11-speed
Cassette
Shimano Deore XT, 11-42T, 11-speed
Crank
FSA CK-745/IS / 14t / w/ chain guard
Bottom Bracket
Bosch System ISIS Drive
Chain
KMC X11E, 11-speed
Pedals
Alloy platform
Wheels
Rims
Oval Concepts 400 CL disc wheelset, 28h, 15mm front, cartridge bearing hubs, welded rims, stainless spokes
Tires
Schwalbe Rocket Ron Performance, 29" x 2.25", 67tpi
Brakes
Brakes
Shimano M447, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M506, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts 250, alloy, riser, 31.8mm, 9° sweep, +/- 5mm rise
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 400 w/ CrMo rails
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust
Motor & Battery
Battery
Bosch Power Pack 500 w/ charger
Remote
Bosch Nyon w/ mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.57 mm | 1.47 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 663 mm | 671 mm | 704 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 91 mm | 96 mm | 91 mm |
| Stack | 627 mm | 636.4 mm | 636.4 mm |
| Reach | 395.5 mm | 404.8 mm | 432.8 mm |
| Top Tube Length | 588 mm | 600 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1146 mm | 1153 mm | 1187 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 803 mm | 840 mm | 861 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

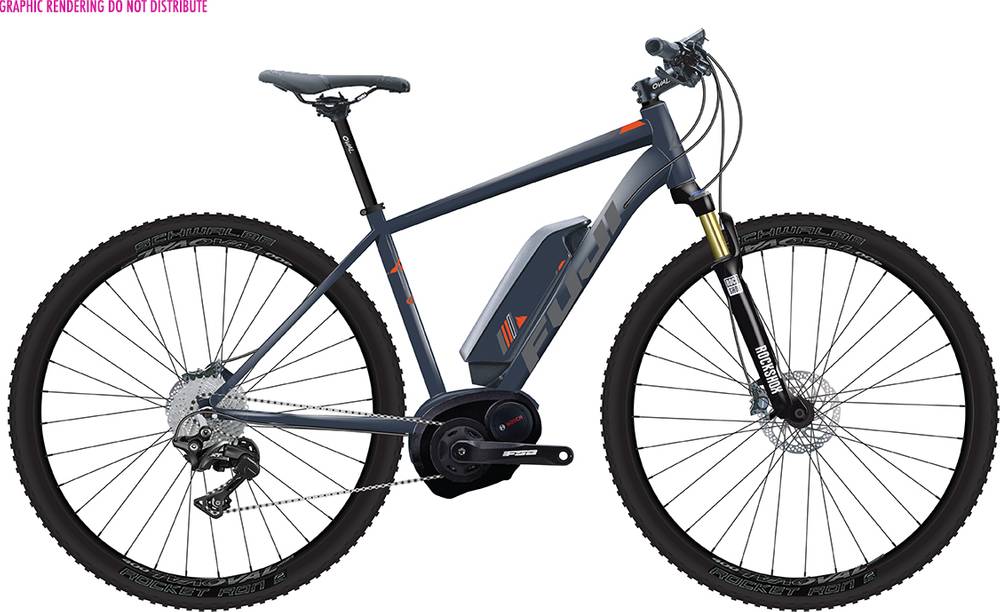

Ambient 29 1.1 belongs to the Fuji E Ambient model. Fuji released 25 e-bikes variations of this model so far. You can easily view all of the Fuji E Ambient e-bikes models from 2016, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Ambient 29 1.1 components
Fork
The fork installed on this bike is the RockShox Recon Gold RL model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Ambient 29 1.1 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Fuji Ambient 29 1.1 2016, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Ambient 29 1.1 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Fuji Ambient 29 1.1 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
