Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, Deore -
Suspension Hardtail -
Battery Bosch Power Pack 400 w/ charger -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL alloy w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube
Suspension Fork
Rock Shox 30 Gold TK Solo Air 29 w/ remote lockout, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, 10-speed, shadow plus
Front Derailleur
N/A
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG50, 11-36T, 10-speed
Crank
FSA CK-745/IS / 15t / w/ chain guard
Bottom Bracket
Bosch System ISIS Drive
Chain
KMC X10E, 10-speed
Pedals
Alloy platform
Wheels
Rims
OVAL Concepts 200 6-bolt disc wheelset, 32h, stainless spokes
Tires
Schwalbe Rapid Rob, 29" x 2.25", 50tpi
Brakes
Brakes
Shimano M447, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M506, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts flat bar, 6061 alloy, 31.8mm, 9° sweep, 0mm rise
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust
Motor & Battery
Battery
Bosch Power Pack 400 w/ charger
Remote
Bosch Intuvia w/ mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.57 mm | 1.47 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 663 mm | 671 mm | 704 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 91 mm | 96 mm | 91 mm |
| Stack | 627 mm | 636.4 mm | 636.4 mm |
| Reach | 395.5 mm | 404.8 mm | 432.8 mm |
| Top Tube Length | 588 mm | 600 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1146 mm | 1153 mm | 1187 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 803 mm | 840 mm | 861 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

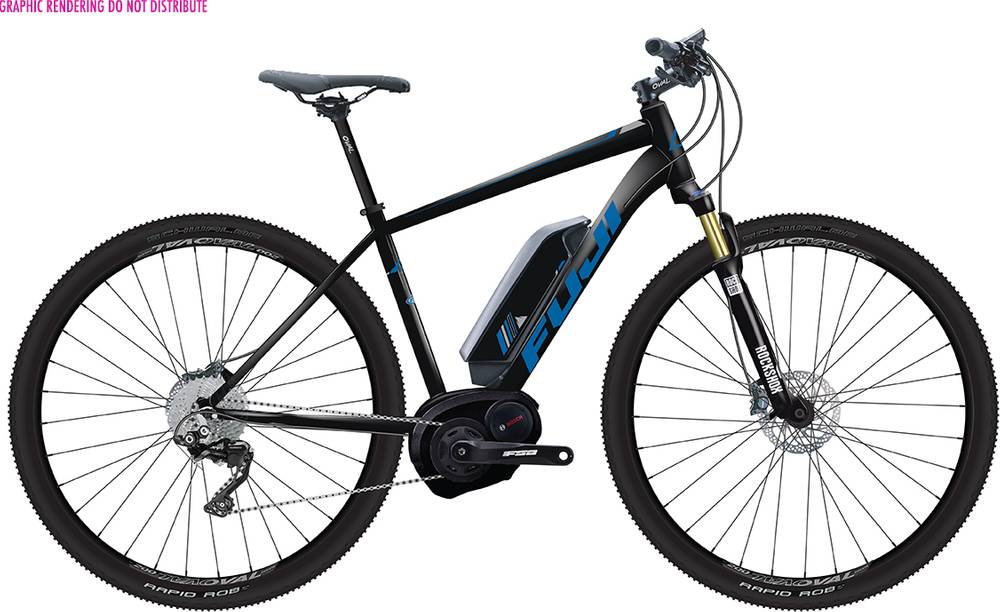

Ambient 29 1.3 completes the Fuji E Ambient model. Fuji released 25 e-bikes variations of this model so far. Take a sneak peek at all Fuji E Ambient e-bikes models from 2016, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Ambient 29 1.3 components
Fork
The RockShox 30 Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Fuji Ambient 29 1.3 2016, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Ambient 29 1.3 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
