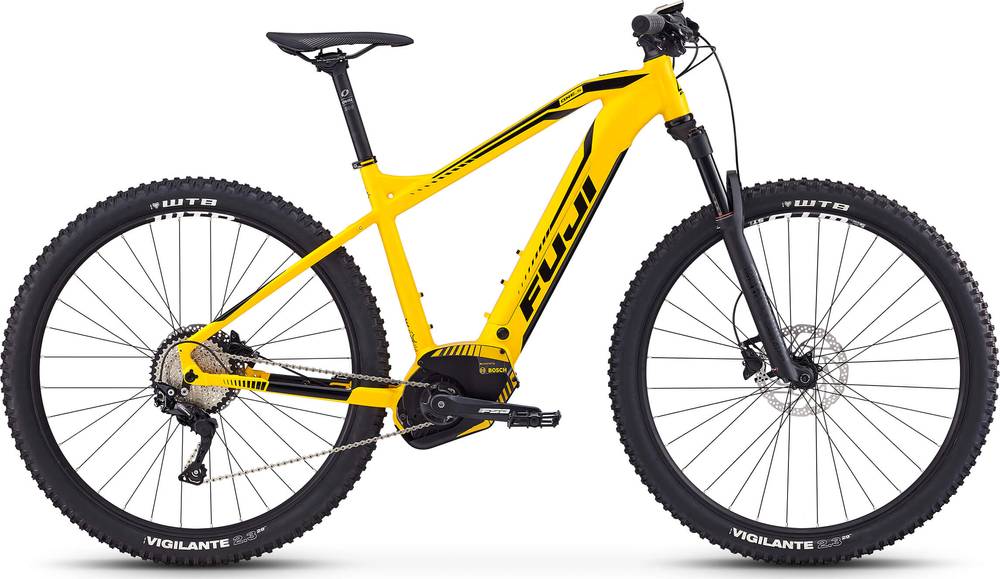

Fuji Ambient Evo 29 1.5 2020
2020 E-bike
Estimate price |
3,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Power Tube 500Wh w/ charger -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL alloy front and rear triangle w/ down tube for integrated Bosch Power Tube 500Wh battery, custom Bosch motor cover, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148 x 12mm cold-forged dropout and replaceable hanger
Suspension Fork
RS Recon RL 29, remote LO, w/ tapered alloy steerer, Boost 110 x 15mm Maxlite Stealth thru axle, travel 120mm, 32mm stanchions
Drivetrain
Rear Derailleur
Shimano Deore M6000 Shadow Plus
Shift Levers
Shimano Deore M6000, Rapid Fire
Cassette
Shimano Deore HG500, 11-42T, 10-Speed
Crank
FSA CK-745/IS / 14T / w/ chainguard
Bottom Bracket
Bosch System ISIS drive
Chain
KMC e10S w/ MissingLink, EPT anti-rust, 10-Speed
Pedals
Alloy platform, chromoly axle
Wheels
Rims
Shimano MT400-Boost CL 15mm thru axle Disc, 32H, front / Shimano MT400-Boost CL 12mm thru axle disc, 32H, rear, 14/15g stainless steel spokes, WTB STp i25 TCS double wall rims
Tires
WTB Vigilante Comp, Wire, DNA-Compound 29" x 2.3", 27tpi
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 180mm front, 180mm rear
Brake Levers
Shimano MT200 hydraulic 2 finger lever
Cockpit
Stem
Fuji alloy, 3D-forged 6061, 31.8mm Clamp, +/-7 Degree
Handlebar
Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9 degree sweep, 31.8mm clamp
Grips
Oval Concepts 634 Trail, single LO, dual density Kraton
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 238 Trail, steel rail
Seatpost
Oval Concepts 300, 6061 alloy micro adjust, 30.9mm diameter
Motor & Battery
Motor
Bosch Performance CX, mid-motor, 250W rated power, 20mph or 25kph maximum assist
Battery
Bosch Power Tube 500Wh w/ charger
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 669 mm | 690 mm | 712 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 85 mm |
| Stack | 642 mm | 651 mm | 682 mm |
| Reach | 391 mm | 408 mm | 418 mm |
| Top Tube Length | 588 mm | 600 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1137 mm | 1158 mm | 1180 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 762 mm | 763 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Ambient Evo 29 1.5 completes the Fuji E Ambient model. Fuji released 25 e-bikes variations of this model so far. You can easily view all of the Fuji E Ambient e-bikes models from 2020, here.
Model range prices
Fuji Ambient Evo 27.5+ 1.5 2020 is the cheapest e-bike model and costs 3799$. Fuji Ambient Evo 29 1.5 2020 is the most expensive one and costs 3799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3799$. Doing a quick comparison, we notice that Ambient Evo 29 1.5 price is 12.9% more expensive than the average cost of a Trail e-bike.
Overview of components
Fork
Fuji Ambient Evo 29 1.5 2020 e-bike is equipped with the RockShox Recon Silver RL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Ambient Evo 29 1.5 has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Fuji Ambient Evo 29 1.5 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ambient Evo 29 1.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Ambient Evo 29 1.5 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
