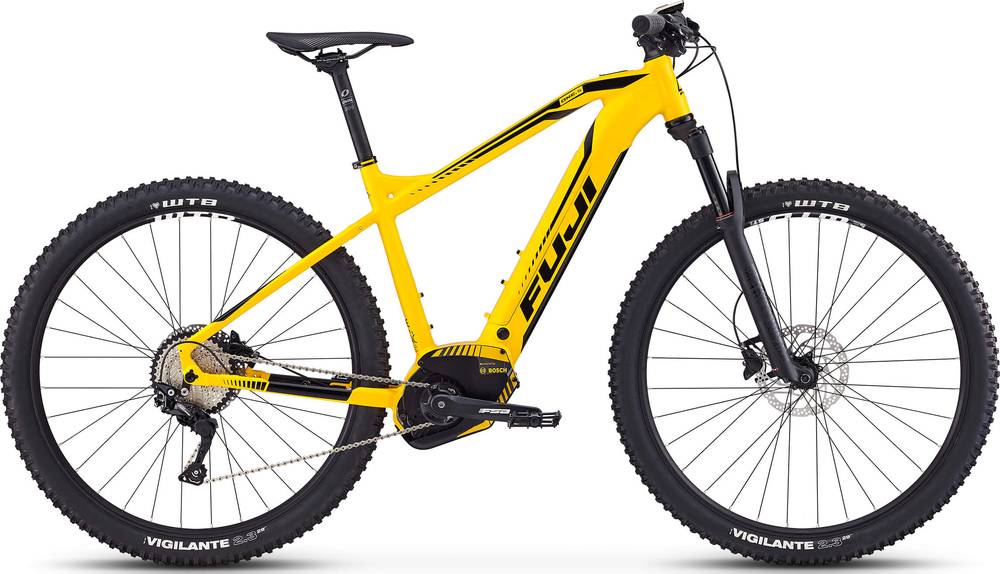

Fuji Ambient Evo 29 1.5 USA 2019
2019 E-bike
Estimate price |
3,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Power Tube 500Wh w/ charger -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL alloy front and rear triangle w/ down tube for integrated Bosch Power Tube 500Wh battery, custom Bosch motor cover, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148 x 12mm cold-forged dropout and replaceable hanger
Suspension Fork
RS Recon RL 29, remote LO, w/ tapered alloy steerer, Boost 110 x 15mm Maxlite Stealth thru axle, travel 120mm, 32mm stanchions
Drivetrain
Rear Derailleur
Shimano Deore M6000 Shadow Plus
Shift Levers
Shimano Deore M6000, Rapid Fire
Cassette
Shimano Deore HG500, 11-42T, 10-Speed
Crank
FSA CK-745/IS / 14T / w/ chainguard
Bottom Bracket
Bosch System ISIS drive
Chain
KMC e10S w/ MissingLink, EPT anti-rust, 10-Speed
Pedals
Alloy platform, chromoly axle
Wheels
Rims
Shimano MT400-Boost CL 15mm thru axle Disc, 32H, front / Shimano MT400-Boost CL 12mm thru axle disc, 32H, rear, 14/15g stainless steel spokes, WTB STp i25 TCS double wall rims
Tires
WTB Vigilante Comp, Wire, DNA-Compound 29" x 2.3", 27tpi
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 180mm front, 180mm rear
Brake Levers
Shimano MT200 hydraulic 2 finger lever
Cockpit
Stem
Fuji alloy, 3D-forged 6061, 31.8mm Clamp, +/-7 Degree
Handlebar
Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9 degree sweep, 31.8mm clamp
Grips
Oval Concepts 634 Trail, single LO, dual density Kraton
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 238 Trail, steel rail
Seatpost
Oval Concepts 300, 6061 alloy micro adjust, 30.9mm diameter
Motor & Battery
Motor
Bosch Performance CX, mid-motor, 250W rated power, 20mph or 25kph maximum assist
Battery
Bosch Power Tube 500Wh w/ charger
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 669 mm | 690 mm | 712 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 85 mm |
| Stack | 642 mm | 651 mm | 682 mm |
| Reach | 391 mm | 408 mm | 418 mm |
| Top Tube Length | 588 mm | 600 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1137 mm | 1158 mm | 1180 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 762 mm | 763 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Ambient Evo 29 1.5 USA is part of the Fuji E Ambient model. Fuji launched 25 e-bikes of this model so far. You can easily view all of the Fuji E Ambient e-bikes models from 2019, here.
Model range prices
Fuji Ambient Evo 27.5+ 1.5 2019 is the cheapest e-bike model and costs 3799$. Fuji Ambient Evo 27.5+ 1.5 USA 2019 is the most expensive one and costs 3999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2019 and its price was 3799$. Comparing the average cost of a Trail e-bike to this one, you will see that Ambient Evo 29 1.5 USA price is 12.9% higher.
Ambient Evo 29 1.5 USA components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Ambient Evo 29 1.5 USA model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Ambient Evo 29 1.5 USA has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
