Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy, semi-integrated headset, curved top and down tube, engineered hollow box technology, water bottle mount
Suspension Fork
Reba RL 26 Dual Air w/ tapered alloy steerer w/ remote lockout, 100mm travel
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
Shimano Deore XT SGS Shadow top normal, 10-speed
Front Derailleur
Shimano SLX, 34.9mm
Shift Levers
Shimano SLX Rapid Fire, 30-speed
Cassette
Shimano Deore, 11-36T 10-speed
Crank
Shimano SLX Hollow Tech II w/ integrated spindle, 24/32/42T
Bottom Bracket
Shimano sealed cartridge
Chain
KMC, 10-speed
Pedals
N/A
Wheels
Rims
Fuji custom 32H mountain disc hubs w/ Alex DP17 double wall rims
Tires
Continental Mountain King, 26x2.2" folding or Hutchinson Cobra Air Light 26x2.25
Brakes
Brakes
Tektro Auriga Pro hydraulic disc, 180/160mm rotor
Brake Levers
Tektro Auriga Pro
Cockpit
Stem
Oval M200 alloy reverse bolt technology, 31.8mm
Handlebar
Oval M200 low riser, 31.8mm
Headset
Oval 1 1/8" - 1 1/2" semi-integrated semi-cartridge, 30mm spacers
Seat
Saddle
Oval M200 w/ CrMo rails
Seatpost
Oval M200, 31.6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD |
|---|---|---|---|---|
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Top Tube Length | 518 mm | 532 mm | 553 mm | 573 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1026 mm | 1040 mm | 1061 mm | 1081 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 740 mm | 741 mm | 753 mm | 755 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

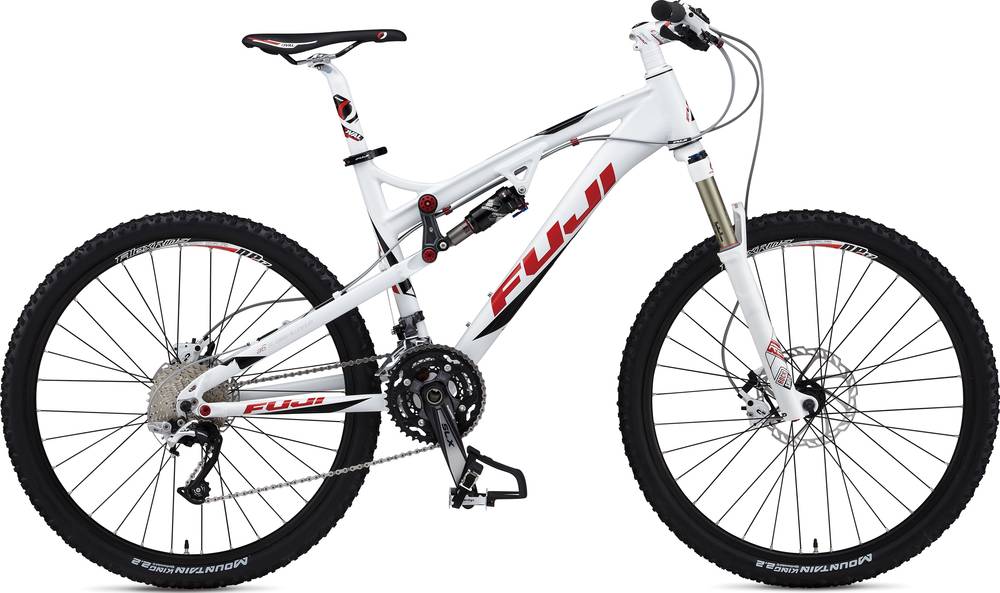

Belle 1.0 completes the Fuji Belle model. There are 7 bikes that carry this model name. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Belle 1.0 components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Belle 1.0 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Belle 1.0 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
