Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork Manitou
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL Quarternary-phase custom-butted alloy, hydroformed top and down tube, tapered 1 1/8" - 1.5" head tube
Suspension Fork
Manitou Marvel Comp TS air w/ tapered alloy steerer, lockout, 80mm travel (13"-15") 100mm travel (17"-19")
Rear Shock
Manitou Radium Expert w/ lockout
Drivetrain
Rear Derailleur
Shimano SLX, M675 SGS Shadow top normal, 10-speed
Front Derailleur
Shimano Deore, M591, 34.9mm
Shift Levers
Shimano Deore, M591 Rapid Fire, 10-speed
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano Deore, M590 w/ integrated spindle, 42/32/24T
Bottom Bracket
Shimano cartridge bearings
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Shimano M435 32H Center Lock disc hubs, Vera Terra DPD22 rims
Tires
Schwalbe Racing Ralph, 26" x 2.1" folding, 67 tpi
Brakes
Brakes
Shimano Deore M445, hydraulic disc, 160mm rotor
Brake Levers
Shimano Deore M446 hydraulic
Cockpit
Stem
Oval M213, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy riser bar, 9° sweep, 31.8mm diameter, 640mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Womens W400 w/ Cro-Moly rails
Seatpost
Oval M200, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.39 mm | 1.32 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Stack | 548.3 mm | 548.3 mm | 548.4 mm | 548.4 mm |
| Reach | 360.2 mm | 374.2 mm | 394.3 mm | 415.1 mm |
| Top Tube Length | 518 mm | 532 mm | 553 mm | 573 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1027 mm | 1041 mm | 1062 mm | 1082 mm |
| Standover Height | 738 mm | 738 mm | 749 mm | 749 mm |
| Wheels | 26" | 26" | 26" | 26" |
About this model

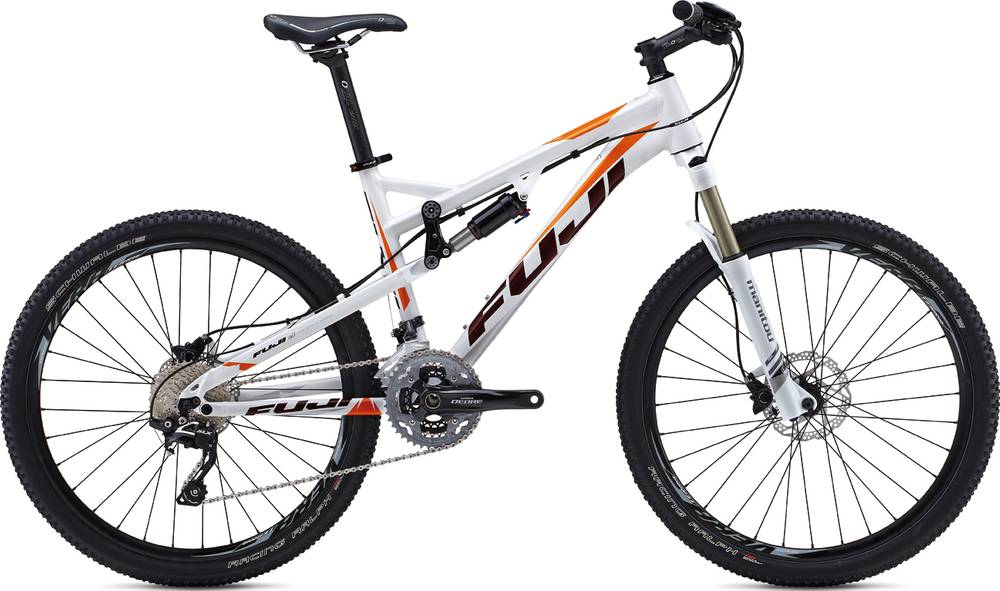

Belle 1.3 D is a Fuji Belle model. Fuji released 7 bikes variations of this model so far. You can easily view all of the Fuji Belle bikes models from 2013, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Fuji Belle 1.3 D 2013 bike is equipped with the Manitou fork, and has 80mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The Belle 1.3 D 2013 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Belle 1.3 D has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
