Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Rock Shox Reba RL 27.5+ w/ remote lockout, tapered aluminum steerer, 15x110mm Thru axle, 120mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow plus, 10-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX Ispec, Rapid Fire, 10-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Praxis Cadet M30, 30T
Bottom Bracket
Praxis, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Sun Ringle Mulefut 50SL rims, Formula CL disc, 32h, 15x110mm front, 148x12mm rear hubs, stainless spokes
Tires
Schwalbe Nobby Nic Performance, 27.5" x 3.0" 67tpi, folding
Brakes
Brakes
Shimano M447, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M506, hydraulic disc
Cockpit
Stem
Oval Concepts 600AM, 3D-forged 6061 alloy, 31.8mm, 0° rise
Handlebar
Oval Concepts 250, 6061 alloy, riser, 31.8mm, 9° sweep, +/- 5mm rise
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
KS eTEN Integra dropper, 30.9mm, 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 0.6 mm | 0.61 mm | 0.62 mm | 0.66 mm | 0.68 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 666 mm | 676 mm | 689 mm | 716 mm | 737 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 243 mm | 236 mm | 236 mm | 220 mm | 215 mm |
| Stack | 382 mm | 392.3 mm | 402.1 mm | 429.4 mm | 446.5 mm |
| Reach | 640 mm | 640 mm | 649.5 mm | 649.5 mm | 658.8 mm |
| Top Tube Length | 578 mm | 588 mm | 600.8 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1101 mm | 1111 mm | 1125 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 783 mm | 805 mm | 834 mm | 856 mm | 884 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

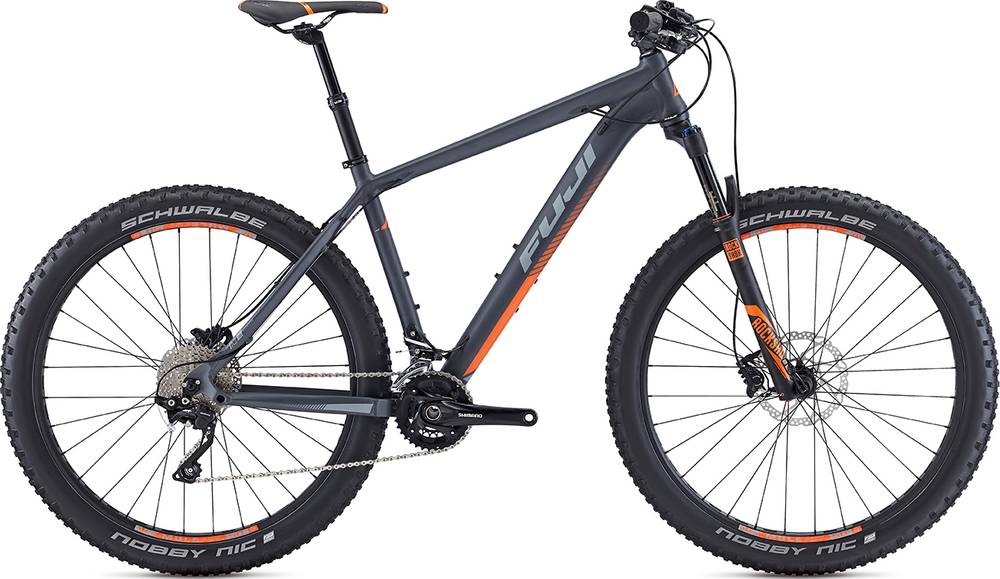

Bighorn 27.5 + 1.3 is a Fuji Bighorn model. Fuji released 21 bikes variations of this model so far. You can easily view all of the Fuji Bighorn bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Bighorn 27.5 + 1.3 components
Fork
This bike has the RockShox Reba fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The Bighorn 27.5 + 1.3 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Bighorn 27.5 + 1.3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Bighorn 27.5 + 1.3. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
