Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Rock Shox Reba RL 27.5+ w/ remote lockout, tapered aluminum steerer, 15x110mm Thru axle, 120mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow plus, 10-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX Ispec, Rapid Fire, 10-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Praxis Cadet M30, 30T
Bottom Bracket
Praxis, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Sun Ringle Mulefut 50SL rims, Formula CL disc, 32h, 15x110mm front, 148x12mm rear hubs, stainless spokes
Tires
Schwalbe Nobby Nic Performance, 27.5" x 3.0" 67tpi, folding
Brakes
Brakes
Shimano M447, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M506, hydraulic disc
Cockpit
Stem
Oval Concepts 600AM, 3D-forged 6061 alloy, 31.8mm, 0° rise
Handlebar
Oval Concepts 250, 6061 alloy, riser, 31.8mm, 9° sweep, +/- 5mm rise
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
KS eTEN Integra dropper, 30.9mm, 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 0.6 mm | 0.61 mm | 0.62 mm | 0.66 mm | 0.68 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 666 mm | 676 mm | 689 mm | 716 mm | 737 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 243 mm | 236 mm | 236 mm | 220 mm | 215 mm |
| Stack | 382 mm | 392.3 mm | 402.1 mm | 429.4 mm | 446.5 mm |
| Reach | 640 mm | 640 mm | 649.5 mm | 649.5 mm | 658.8 mm |
| Top Tube Length | 578 mm | 588 mm | 600.8 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1101 mm | 1111 mm | 1125 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 783 mm | 805 mm | 834 mm | 856 mm | 884 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

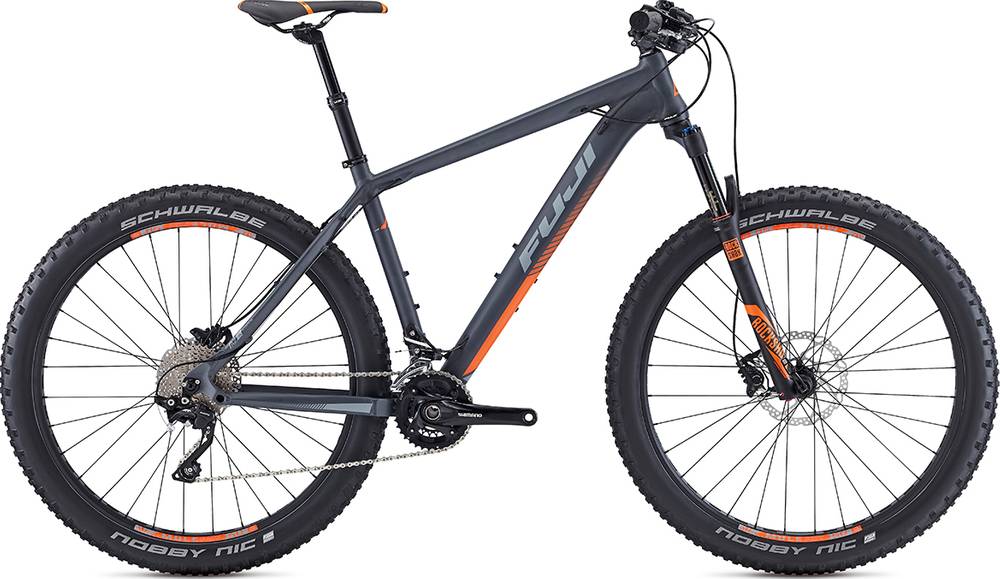

Bighorn 27.5+ 1.3 is a Fuji Bighorn model. Fuji released 21 bikes variations of this model so far. Take a sneak peek at all Fuji Bighorn bikes models from 2017, by clicking here.
Model range prices
Fuji Bighorn 27.5+ 1.3 2017 is the most economical model, with a starting price of 1900$. Fuji Bighorn 27.5+ 1.1 2017 on the other hand costs 2749$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 1900$. Doing a quick comparison, we notice that Bighorn 27.5+ 1.3 price is 45.37% lower than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox Reba fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Bighorn 27.5+ 1.3 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Bighorn 27.5+ 1.3 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Bighorn 27.5+ 1.3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Fuji Bighorn 27.5+ 1.3 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
