Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL custom-butted alloy w/ shaped top tube & integrated tapered head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, BB86 shell, double water bottle mounts
Suspension Fork
FC-770 carbon blade, alloy crown w/ tapered alloy steerer & alloy dropouts
Drivetrain
Rear Derailleur
Shimano 105, 11-speed
Front Derailleur
Shimano 105, braze-on mount
Shift Levers
Shimano 105, STI, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Oval Concepts 520, forged 6066 arms, 46/36T
Bottom Bracket
Oval Concepts, BB86
Chain
KMC X11 w/ Missing Link, 11-speed
Pedals
N/A
Wheels
Rims
Vera Corsa DPD22, 24 / 28h Formula disc hubs
Tires
Challenge Grifo 700 x 32, 60tpi, folding
Brakes
Brakes
TRP Spyre-C twin piston mechanical disc for road, 160mm rotors
Brake Levers
Shimano 105, STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R500 w/ chromoly hollow rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.42 mm | 1.48 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 277 mm | 277 mm | 279 mm | 279 mm |
| Front Center | 583 mm | 599 mm | 600 mm | 590 mm | 605 mm | 621 mm | 636 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 65.6 mm | 65.6 mm | 62.4 mm | 59.2 mm | 59.2 mm | 59.2 mm | 59.2 mm |
| Stack | 514 mm | 519 mm | 539 mm | 549 mm | 568 mm | 585 mm | 604 mm |
| Reach | 366 mm | 380 mm | 379 mm | 371 mm | 381 mm | 390 mm | 399 mm |
| Top Tube Length | 505 mm | 520 mm | 530 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 110 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 998 mm | 1014 mm | 1015 mm | 1006 mm | 1021 mm | 1038 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 67 mm | 67 mm | 65 mm | 65 mm |
| Standover Height | 744 mm | 756 mm | 774 mm | 787 mm | 808 mm | 825 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

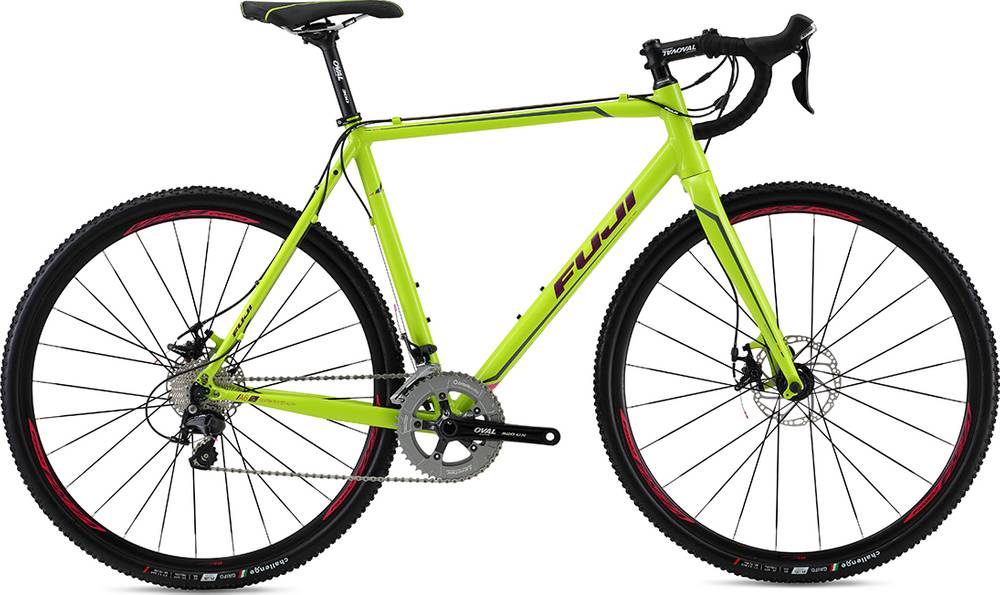

About this model
Cross 1.5 is part of the Fuji Cross model. Fuji launched 46 bikes of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Cyclocross bikes
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Cyclocross bikes average weight
On a deeper look, we notice that the average weight of a Cyclocross bike is 8.79 kg (19.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 10.13 kg (22.33 lbs), Fuji bike is much heavier than average. In short, the average Cyclocross bike weight is 15.24% lower than this one.
Cross 1.5 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Cross 1.5 2016 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Cross 1.5 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
