Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Rival, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 custom double butted and shaped with PowerDiamond down tube, integrated head tube, Double water bottle mounts
Suspension Fork
FC-770 Fuji Bonded Carbon Cross w/ 1 1/8" Al Steerer
Drivetrain
Rear Derailleur
SRAM Rival, 10sp
Front Derailleur
SRAM Rival, 31.8mm
Shift Levers
SRAM Rival Carbon Double Tap shifter/brake, 20-speed
Cassette
SRAM PG-1070, 11-26T 10speed
Crank
FSA Gossamer Cross MegaExo w/ Integrated spindle, 7075 CNC 36/46T Chainring
Bottom Bracket
FSA MegaExo Exterior Sealed Cartidge Bearing System
Chain
KMC DX10
Pedals
none
Wheels
Rims
Alex ALX-320, 700c clincher
Tires
Ritchey SpeedMax Cross, 700 x 32c
Brakes
Brakes
Avid Shorty 4 Cantilevers
Brake Levers
Tektro RL-721 Cross Top Mount
Cockpit
Stem
Fuji PGC 3D Forged 7075 AL, +/-5 degree
Handlebar
Fuji PGC Double Butted 7075 Aluminum
Headset
Tange IS-24 1 1/8" Integrated Road
Seat
Saddle
Fuji UltraLite Racing
Seatpost
Fuji PGC Forged Butted 7075 AL, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.33 mm | 1.36 mm | 1.34 mm | 1.37 mm | 1.43 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 590 mm | 592 mm | 592 mm | 599 mm | 609 mm | 619 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69.5 mm | 66 mm | 63.1 mm | 62.8 mm | 63.1 mm | 63.3 mm |
| Stack | 523.5 mm | 525 mm | 536.6 mm | 536 mm | 555 mm | 584 mm |
| Reach | 388 mm | 394 mm | 395 mm | 401 mm | 406 mm | 407 mm |
| Top Tube Length | 530 mm | 540.3 mm | 558.1 mm | 565 mm | 575 mm | 595 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 115 mm | 135 mm | 165 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1015 mm | 1017 mm | 1017 mm | 1024 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 757 mm | 776 mm | 790 mm | 799 mm | 818 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |

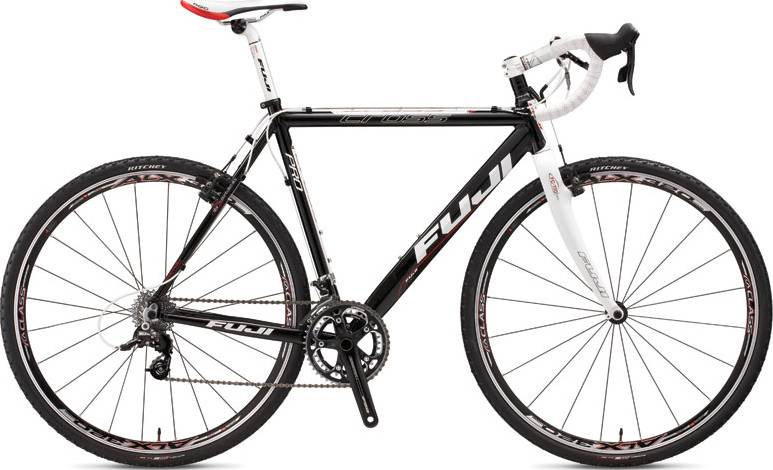

Model Overview
CROSS PRO completes the Fuji Cross model. Fuji launched 46 bikes of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Cyclocross bikes average weight
On a deeper look, we notice that the average weight of a Cyclocross bike is 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CROSS PRO weighs 9.4 kg (20.72 lbs) and is a bit heavier than the average. To sum up, it’s 6.94% heavier than the average weight of Cyclocross bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on CROSS PRO are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji CROSS PRO has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
