Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Monocoque High Modulus C7+ carbon with custom weave carbon strands and aero shaped tubes, Internal cable routing, EST (extended seat tube), Integrated aluminum cupped head tube, Double water bottle mounts.
Suspension Fork
FC-440 Fuji Carbon Aero Monocoque Integrated 1 1/8" Carbon steerer w/Internal routing
Drivetrain
Rear Derailleur
NEW SRAM Rival
Front Derailleur
NEW SRAM Rival, Braze-on
Shift Levers
NEW SRAM SL-T500, 20-speed
Cassette
SRAM OG-1070, 11-23T 10-speed
Crank
FSA Energy MegaExo w/ Integrated Spindle, 7075 CNC 39/53T Chainring
Bottom Bracket
FSA MegaExo exterior bearing system
Chain
SRAM PG-1050 10-speed
Pedals
none
Wheels
Rims
Novatec Extreme J233 Carbon/Alloy 33mm, 700c clincher
Tires
Continental Ultra Race, 700 x 23c Foldable
Brakes
Brakes
Tektro R-725 Tri w/Cartridge pads
Brake Levers
NEW Tektro TL-720 Tri
Cockpit
Stem
Profile Hammer OS
Handlebar
Profile Design T2 Wing base
Headset
Cane Creek 1 1/8" Integrated Road, with convex hollow alloy 25mm spacer
Seat
Saddle
San Marco Ponza Trilon
Seatpost
Fuji Carbon OP Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm | 1.23 mm | 1.18 mm | 1.17 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 543 mm | 560 mm | 577 mm | 592 mm | 612 mm | 642 mm | 658 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 59 mm | 55 mm | 53 mm | 51 mm | 58 mm | 48 mm | 51 mm |
| Stack | 487 mm | 496 mm | 506 mm | 515 mm | 531 mm | 531 mm | 544 mm |
| Reach | 360 mm | 378 mm | 396 mm | 408 mm | 430 mm | 451 mm | 466 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 525 mm | 561.5 mm | 580 mm | 600 mm | 666.2 mm | 676 mm | 686 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 90 mm | 100 mm | 110 mm | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 938 mm | 956 mm | 972 mm | 988 mm | 1008 mm | 1038 mm | 1054 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 667 mm | 710 mm | 729 mm | 756 mm | 772 mm | 772 mm | 778 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

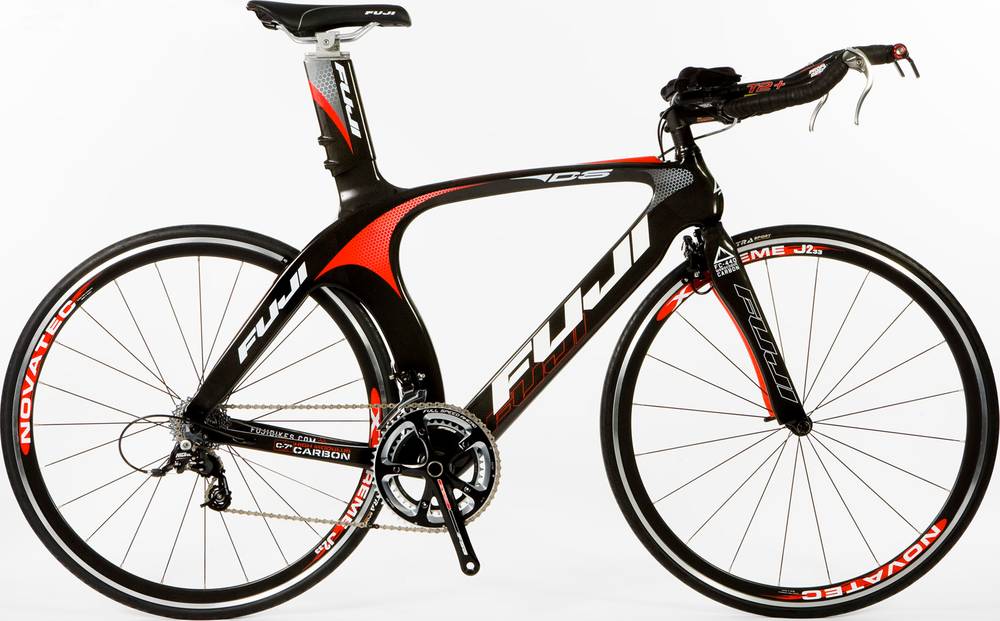

D-6 is a Fuji D 6 model. 17 bikes variations carry this model name so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road bikes
Our math shows that the average cost of a dependable General Road bike is 1915$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
General Road bikes average weight
On a deeper look, we notice that the average weight of a General Road bike is 9 kg (19.84 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji D-6 it’s weighing 7.95 kg (17.53 lbs). At this weight, is considerably lighter than average. In short, the average General Road bike weight is 13.21% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the D-6 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The D-6 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
