Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XTR, FSA -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D-6 High Modulus Carbon monocoque, integrated oversized 1.5 lower head tube, IST (Integrated Seat Tube), water bottle mount
Suspension Fork
ROCKSHOX SID RLT Ti w/Tapered Head Tube, 100mm Travel, w/ PopLoc Remote LockOut
Rear Shock
ROCKSHOX Monarch RT3
Drivetrain
Rear Derailleur
Shimano XTR 980 GS Shadow Top normal 10sp
Front Derailleur
Shimano XTR 986, 34.9mm
Shift Levers
Shimano XTR 980 Rapid Fire, 20-speed
Cassette
Shimano XT, 11-36T 10sp
Crank
FSA K-Force Light Compact 386 MegaExo w/Integrated spindle, 27/42T
Bottom Bracket
FSA Integrated MegaExo
Chain
Shimano HG-94
Pedals
none
Wheels
Rims
Shimano XTR 985-XCRace Centerlock Clincher Wheelset, 24H Tubeless
Tires
Continental Race King 26x2.2" Foldable
Brakes
Brakes
Shimano XTR 985 Hydraulic Disc, 180/160mm Centerlock rotor
Brake Levers
Shimano XTR 985 Hydraulic Brake Lever
Cockpit
Stem
Oval M-800 RBT Carbon Matrix, 31.8mm
Handlebar
Oval M-800 15mm Sweep Carbon Riser Bar, 31.8mm
Headset
FSA Sealed Bearing Integrated
Seat
Saddle
Oval M-800 w/ Carbon rails
Seatpost
Ritchey Stubby
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Top Tube Length | 556 mm | 586 mm | 611 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 605 mm | 660 mm | 725 mm | 800 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1039 mm | 1069 mm | 1095 mm | 1126 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 751 mm | 771 mm | 789 mm | 812 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

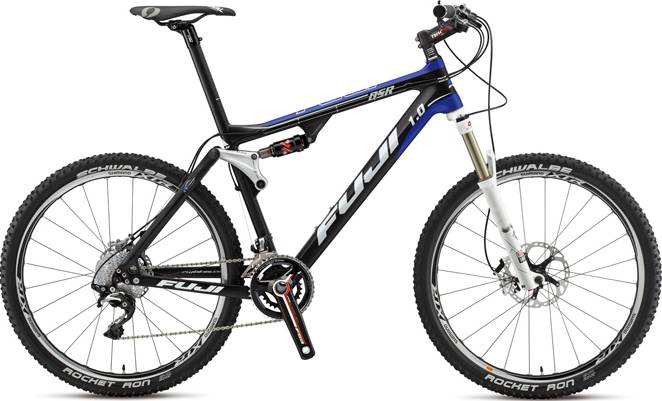

Model Overview
DSR 1.0 completes the Fuji Dsr model. Fuji launched 5 bikes of this model so far. Check out the entire range from 2011 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
DSR 1.0 weighs 10.2 kg (22.49 lbs) and is much lighter than the average. To sum up, it’s 21.57% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
Fuji DSR 1.0 2011 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
DSR 1.0 has a titanium fork, so it’s a bit thicker than a carbon or steel fork would be.
Wheels size
The wheels on DSR 1.0 are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji DSR 1.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
