Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C-7 High Modulus Carbon monocoque, integrated oversized 1.5 lower head tube, IST (Integrated Seat Tube), EHBT(Engineered Hollow Box Technology), water bottle mount
Suspension Fork
Rock Shox Reba SL w/ Motion Control, PopLoc remote & 100mm Travel
Rear Shock
Rock Shox Monarch 3.3 w/Motion Control and 3 position Switch Floodgate
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Top normal
Front Derailleur
Shimano SLX, 34.9mm
Shift Levers
Shimano SLX Rapid Fire, 27-speed
Cassette
Shimano HG-61, 11-34T 9-speed
Crank
Shimano SLX Hollow Tech II w/Integrated spindle, 22/32/44T
Bottom Bracket
Shimano Exterior Bearing System
Chain
Shimano HG-73
Pedals
none
Wheels
Front Hub
Shimano SLX Sealed Bearing CenterLock, 32H
Rear Hub
Shimano SLX Sealed Bearing CenterLock, 32H
Rims
Mavic XM-317 Disc Double Wall
Spokes
DT 14G DB Stainless Steel
Tires
Schwalbe Racing Ralph, 26 X 2.25" Foldable
Brakes
Brakes
Shimano BR-M575 Hydraulic Disc, 180/160mm Centerlock rotor
Brake Levers
Shimano BL-M575 Forged Al
Cockpit
Stem
Ritchey WCS Alloy 4Axis, 1 1/8"X 31.8mm
Handlebar
Ritchey WCS Alloy Low Riser
Headset
FSA No. 42 1 1/8"- 1 1/2" Drop In Integrated
Seat
Saddle
Ritchey Streem Pro w/Cro-Mo rails
Seatpost
none
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 613 mm | 643 mm | 669 mm | 700 |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 556 mm | 586 mm | 611 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 605 mm | 660 mm | 725 mm | 800 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 150 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1039 mm | 1069 mm | 1095 mm | 1126 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 751 mm | 771 mm | 789 mm | 812 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

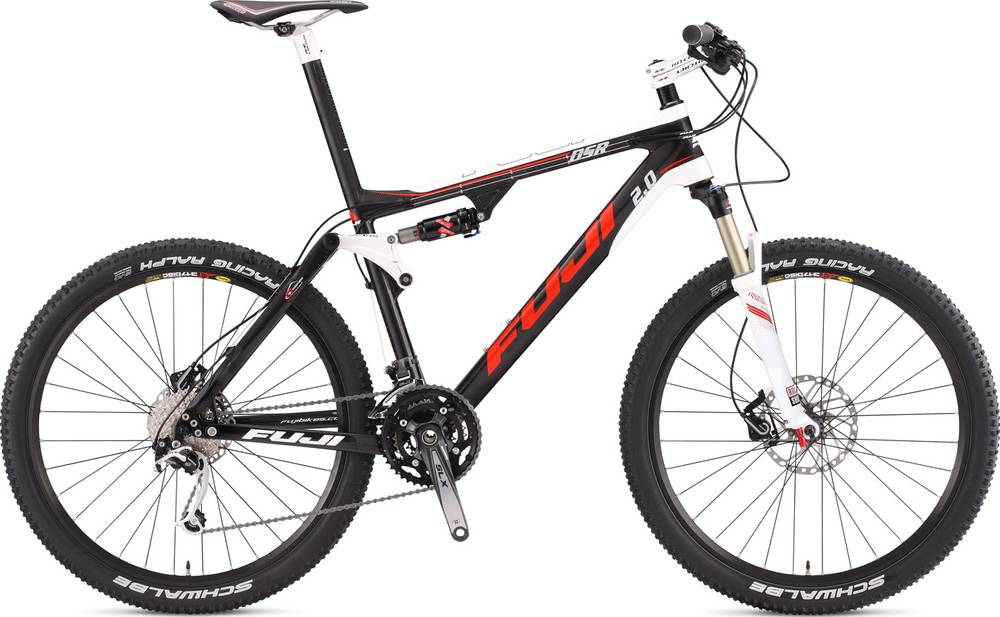

DSR 2.0 completes the Fuji Dsr model. 5 bikes variations carry this model name so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
DSR 2.0 components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The DSR 2.0 2010 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji DSR 2.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
DSR 2.0 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
