Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XTR -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D-6 High Modulus Carbon monocoque, integrated oversized 1.5 lower head tube, 31.6mm round seat post, water bottle mount
Suspension Fork
ROCKSHOX Reba RLT w/ Tapered Head Tube, 100mm Travel, w/ PopLoc Remote LockOut
Rear Shock
ROCKSHOX Monarch RT
Drivetrain
Rear Derailleur
Shimano XTR 980 SGS Shadow Top normal 10sp
Front Derailleur
Shimano XT, 34.9mm
Shift Levers
Shimano XT Rapid Fire, 30-speed
Cassette
Shimano SLX, 11-36T 10sp
Crank
Shimano XT Hollow Tech II w/Integrated spindle, 24/32/42T
Bottom Bracket
Shimano Exterior Bearing System
Chain
Shimano HG-74
Pedals
none
Wheels
Rims
Shimano XT Centerlock, 32H Hubs with Mavic XM-317 Disc Double Wall Rims
Tires
Continental Race King 26x2.2" Foldable
Brakes
Brakes
Shimano M575 Hydraulic Disc, 180/160mm Centerlock rotor
Brake Levers
Shimano BL-M575 Hydraulic Forged Al Brake Lever
Cockpit
Stem
Oval M-600 RBT 2014 Al Stem 31.8mm
Handlebar
Oval M-600 15mm Sweep Double Butted 7050 Riser Bar 31.8mm
Headset
FSA Sealed Bearing Integrated
Seat
Saddle
Oval M-600 w/ Ti rails
Seatpost
Oval M-600 31.6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Top Tube Length | 556 mm | 586 mm | 611 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 605 mm | 660 mm | 725 mm | 800 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1039 mm | 1069 mm | 1095 mm | 1126 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 751 mm | 771 mm | 789 mm | 812 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

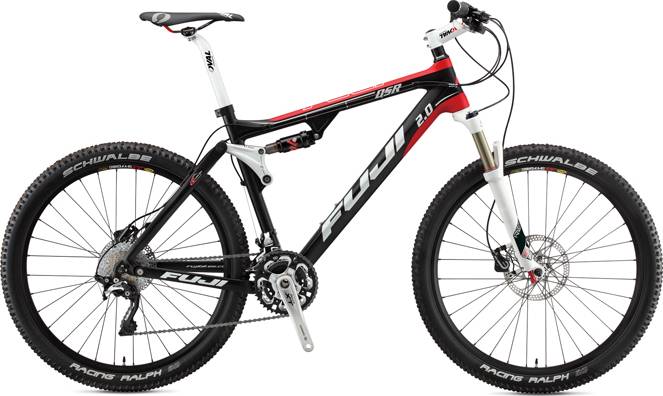

Model Overview
DSR 2.0 belongs to the Fuji Dsr model. Fuji released 5 bikes variations of this model so far. You can get a glimpse at all models from 2011, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji DSR 2.0 it’s weighing 11.7 kg (25.79 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.98% lighter than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the DSR 2.0 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
