Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D-6 High Modulus Carbon monocoque, integrated oversized 1.5 lower head tube, 31.6mm round seat post, water bottle mount
Suspension Fork
ROCKSHOX Recon Gold RL Solo Air w/ Tapered Head Tube, 100mm Travel
Rear Shock
ROCKSHOX Monarch R
Drivetrain
Rear Derailleur
Shimano XT SGS Shadow Top normal 10sp
Front Derailleur
Shimano SLX, 34.9mm
Shift Levers
Shimano SLX Rapid Fire, 30-speed
Cassette
Shimano SLX, 11-36T 10sp
Crank
Shimano SLX Hollow Tech II w/Integrated spindle, 24/32/42T
Bottom Bracket
Shimano Exterior Bearing System
Chain
Shimano HG-74
Pedals
none
Wheels
Rims
Shimano SLX CenterLock, 32H Hubs with Mavic XM-317 Disc Double Wall Rims
Tires
Continental Race King 26x2.2" Foldable
Brakes
Brakes
Shimano M575 Hydraulic Disc, 180/160mm Centerlock rotor
Brake Levers
Shimano BL-M575 Hydraulic Forged Al Brake Lever
Cockpit
Stem
Oval M-600 RBT 2014 Al Stem 31.8mm
Handlebar
Oval M-600 15mm Sweep Double Butted 7050 Riser Bar 31.8mm
Headset
FSA Sealed Bearing Integrated
Seat
Saddle
Oval M-200 w/ CrMo rails
Seatpost
Oval M-600 MTB 31.6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Top Tube Length | 556 mm | 586 mm | 611 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 605 mm | 660 mm | 725 mm | 800 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1039 mm | 1069 mm | 1095 mm | 1126 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 751 mm | 771 mm | 789 mm | 812 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

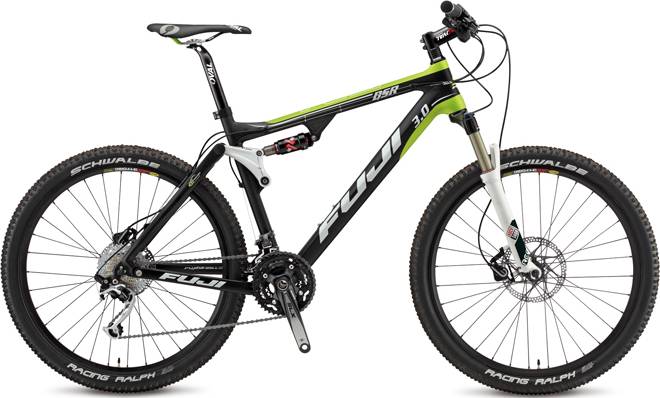

DSR 3.0 is a Fuji Dsr model. There are 5 bikes that carry this model name. You can easily view all of the Fuji Dsr bikes models from 2011, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
DSR 3.0 weighs 11.8 kg (26.01 lbs) and is a bit lighter than the average. In short, the average Crosscountry bike weight is 5.08% higher than this one.
DSR 3.0 components
Fork
This bike has the RockShox Recon Gold RL fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the DSR 3.0 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji DSR 3.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
