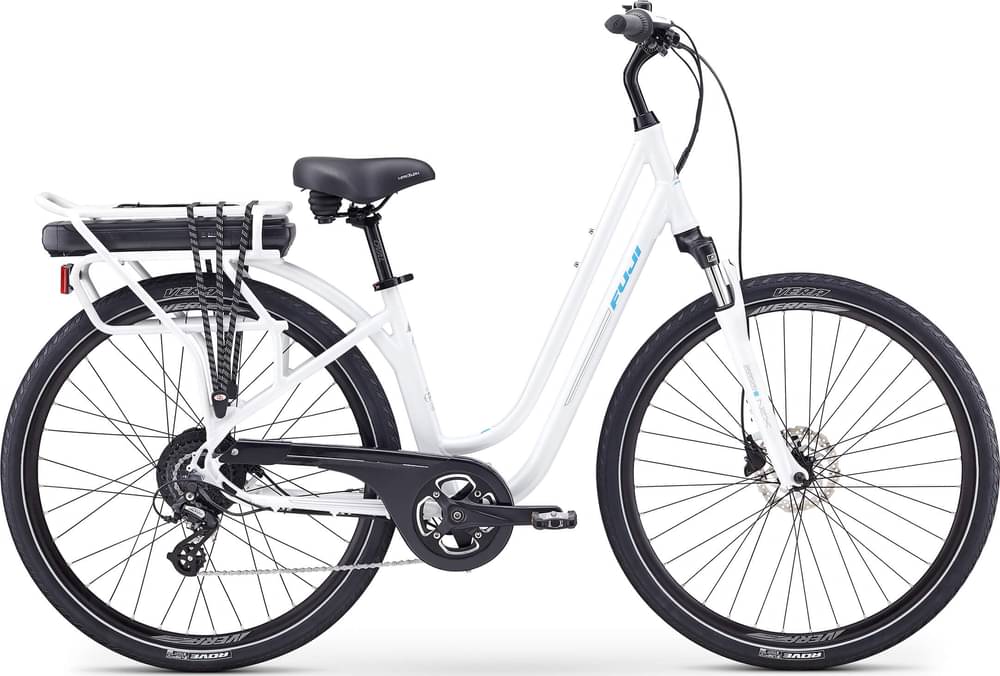

Fuji E-Crosstown LS 2019
2019 E-bike
Estimate price |
2,099$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 468Wh w/ 2A charger -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts
Suspension Fork
Suntour NEX disc, 700C coil, travel 63mm, steel steerer
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano Tourney RS45 Revoshifter
Cassette
Shimano Acera HG31, 11-32T, 8-speed
Crank
Fuji 44T chainring, w/ chainring guard
Bottom Bracket
Bafang sealed cartridge BB with cadence sensor
Chain
KMC X8 w/ Missing Link, EPT anti-rust, 8-speed
Pedals
Polished aluminum body, Kraton grip, chromoly axle
Wheels
Rims
Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims with stainless eyelets
Tires
Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic 3 finger lever
Cockpit
Stem
Classic alloy quill stem
Handlebar
Alloy 25mm rise, 9° sweep, 25.4mm clamp
Grips
Oval Concepts Comfort, single density Kraton
Headset
1 1/8" threaded steel
Seat
Saddle
Selle Royal Metropolitan with Comfort Gel
Seatpost
Alloy micro-adjust, 27.2mm diameter
Motor & Battery
Motor
Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
Battery
Fuji Power Pack 468Wh w/ 2A charger
Remote
Bafang 5 mode LED display w/ walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.88 mm | 1.87 mm | 1.83 mm |
| Front Center | 627 mm | 635 mm | 647 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 78 mm | 76 mm | 76 mm |
| Stack | 672 mm | 676 mm | 681 mm |
| Reach | 357 mm | 362 mm | 372 mm |
| Top Tube Length | 561 mm | 570 mm | 581 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 385 mm | 432 mm | 483 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 195 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1089 mm | 1097 mm | 1109 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 470 mm | 484 mm | 520 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
E-Crosstown LS completes the Fuji E E Crosstown model. Fuji launched 6 e-bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Fuji E-Crosstown 2019 is the most economical model, with a starting price of 2099$. Fuji E-Crosstown LS 2019 on the other hand costs 2099$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Comfort e-bikes average price
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 2099$. If we compare this with the average Comfort e-bike cost we notice that the price is 7.26% higher.
Average weight for Comfort e-bikes
Comfort e-bikes have an average weight of 24.38 kg (53.75 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 25.3 kg (55.78 lbs), Fuji e-bike is slightly heavier than average. In other words, this model is 3.77% heavier than the average Comfort e-bike.
E-Crosstown LS components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The wheels on E-Crosstown LS are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Crosstown LS has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
