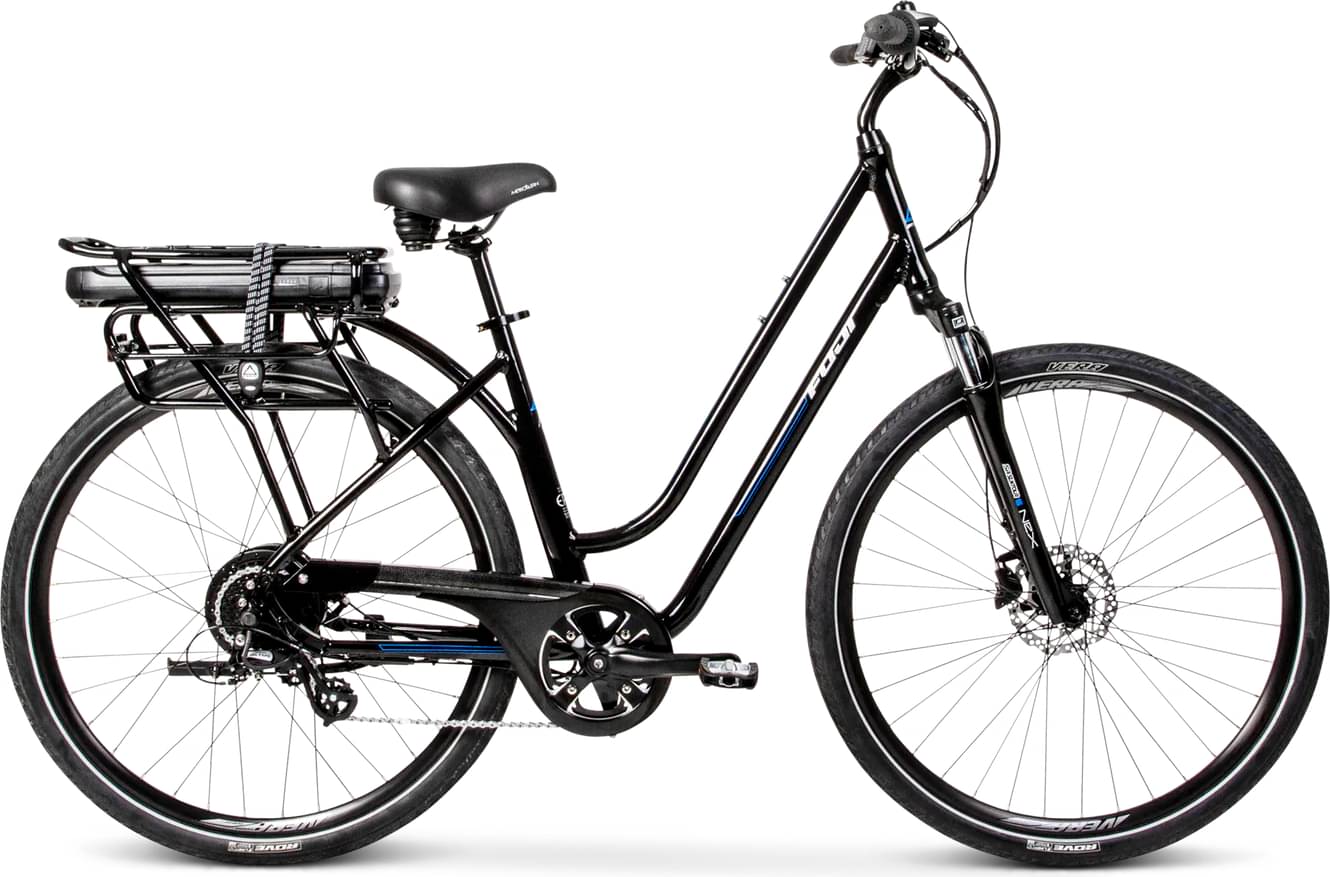

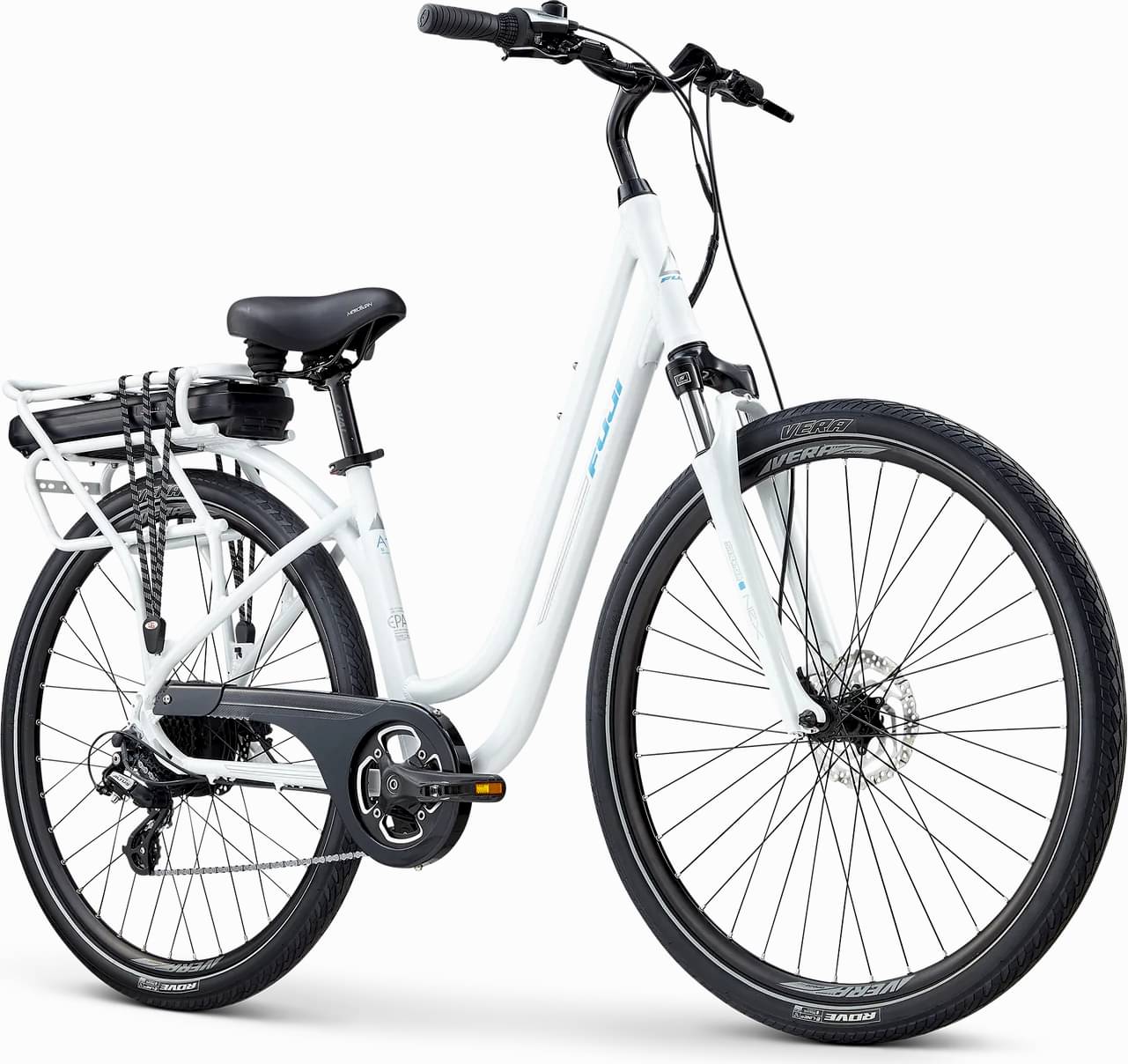

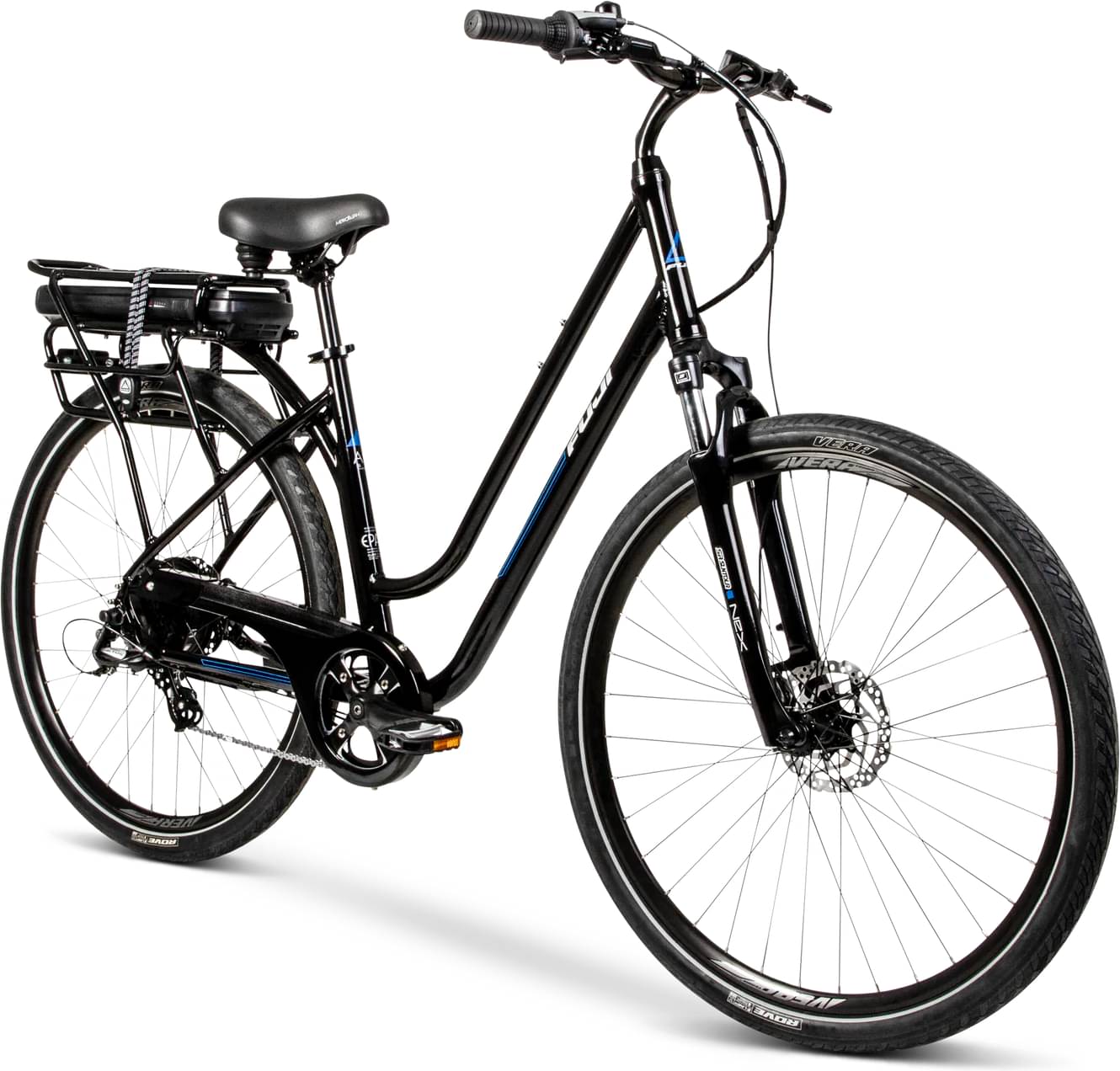

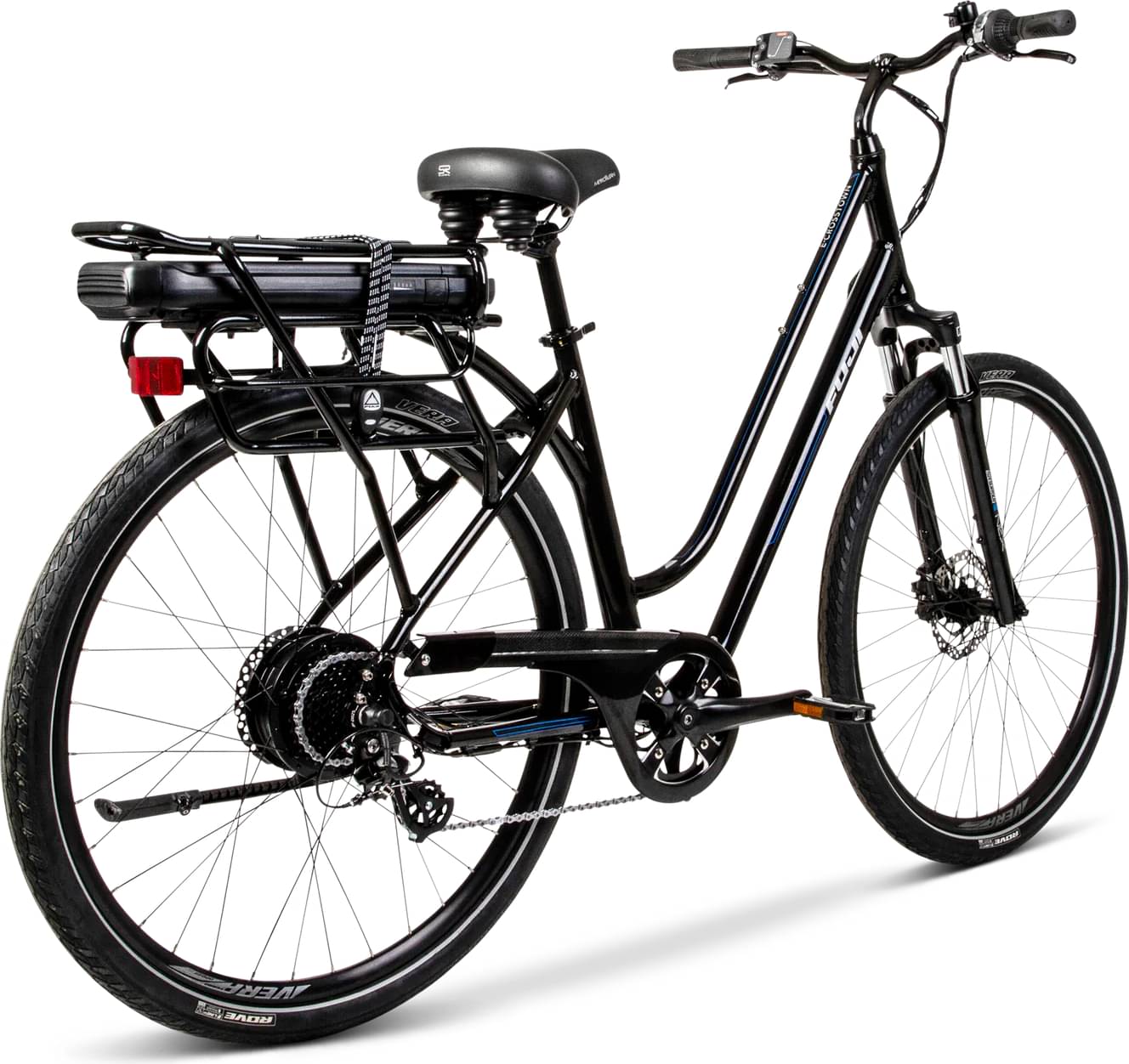

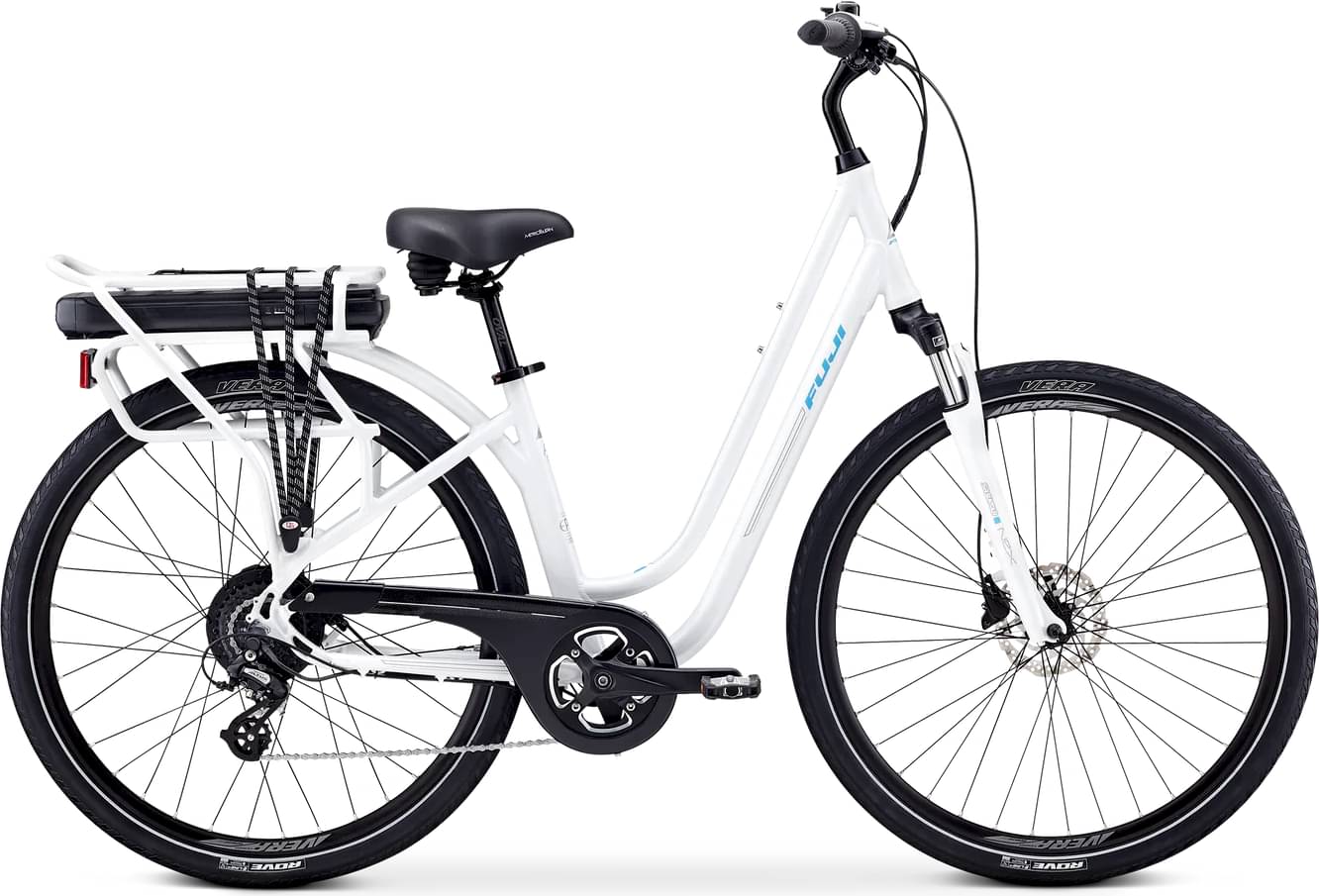

Fuji E-Crosstown LS 2023
2023 E-bike
Estimate price |
1,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 468Wh w/ 2A charger -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts
Suspension Fork
Suntour NEX disc, 700C coil, travel 63mm, steel steerer
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano Tourney Revoshifter
Cassette
Shimano Acera HG31, 11-32T, 8-speed
Crank
Fuji 44T chainring, w/ chainring guard
Bottom Bracket
Bafang sealed cartridge BB with cadence sensor
Chain
KMC X8 w/ Missing Link, EPT anti-rust, 8-speed
Pedals
Polished aluminum body, Kraton grip, chromoly axle
Wheels
Rims
Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims with stainless eyelets
Tires
Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic 3 finger lever
Cockpit
Stem
Classic alloy quill stem
Handlebar
Alloy 25mm rise, 9° sweep, 25.4mm clamp
Grips
Oval Concepts Comfort, single density Kraton
Headset
1 1/8" threaded steel, caged bearings
Seat
Saddle
Selle Royal Metropolitan with Comfort Gel
Seatpost
Alloy micro-adjust, 27.2mm diameter
Motor & Battery
Motor
Bafang H400B rear hub motor, 250W rated power, 20mph or 25kph maximum assist
Battery
Fuji Power Pack 468Wh w/ 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.88 mm | 1.87 mm | 1.83 mm |
| Front Center | 627 mm | 635 mm | 647 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 78 mm | 76 mm | 76 mm |
| Stack | 672 mm | 676 mm | 681 mm |
| Reach | 357 mm | 362 mm | 372 mm |
| Top Tube Length | 561 mm | 570 mm | 581 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 385 mm | 432 mm | 483 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 195 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1089 mm | 1097 mm | 1109 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 470 mm | 484 mm | 520 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
E-Crosstown LS belongs to the Fuji E E Crosstown model. There are 8 e-bikes that carry this model name. Take a sneak peek at all Fuji E E Crosstown e-bikes models from 2023, by clicking here.
Model range prices
Fuji E-Crosstown LS 2023 is the most economical model, with a starting price of 1499$. Fuji E-Crosstown 2023 on the other hand costs 1499$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Comfort e-bikes average price
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, you could also get a good Comfort e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 1499$. Comparing this to the average Comfort e-bike price, we see that the price is 30.55% smaller.
E-Crosstown LS components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Fuji E-Crosstown LS 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji E-Crosstown LS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Fuji E-Crosstown LS e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
