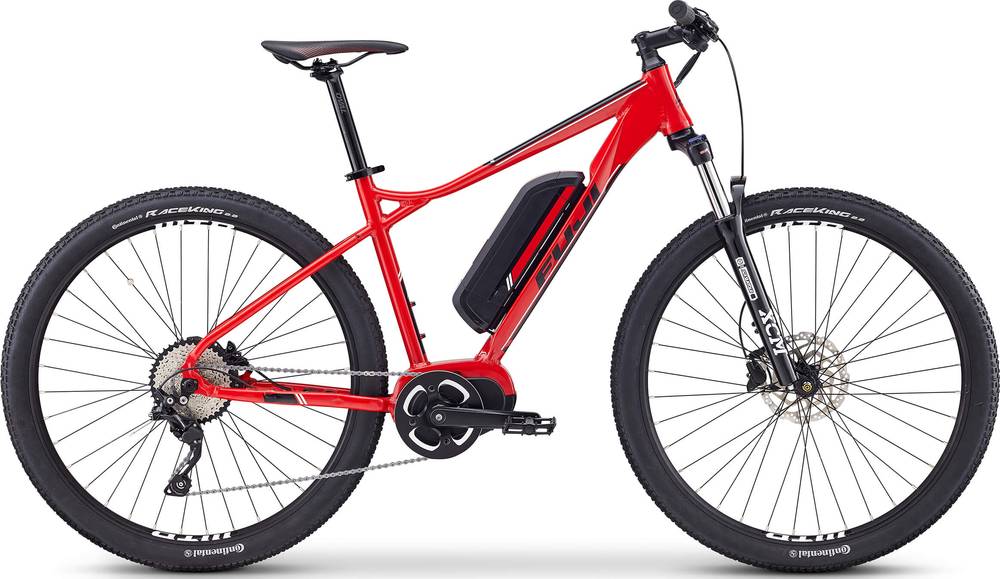

Fuji E-Nevada 29 1.1 USA 2019
2019 E-bike
Estimate price |
2,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 417Wh w/ 2A charger -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
158cm - 162cm
LG
161cm - 166cm
XL
165cm - 171cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL Alloy front and rear triangle w/ semi-Integration of down tube battery. Bafang center motor mount, 1 1/8" head tube, post disc mount, Boost 148 x 12mm cold-forged dropout and replaceable hanger
Suspension Fork
SR Suntour SF18-XCM34-BST-LOR 29 w/ hydraulic lockout, tapered steerer, 15mm thru axle, BOOST spacing, travel 100mm, 34mm stanchions
Drivetrain
Rear Derailleur
Shimano Deore M6000 Shadow
Shift Levers
Shimano Deore M6000, Rapid Fire
Cassette
Shimano Deore HG500, 11-42T, 10-speed
Crank
Fuji alloy 38T w/ chainring guard
Chain
KMC e10S w/ Missing Link, EPT anti-rust, 10-speed
Pedals
Alloy platform, chromoly axle
Wheels
Rims
Shimano MT400-Boost CL 15mm thru axle disc, 36H, front / Shimano MT400-Boost CL 12mm thru axle disc, 36H, rear, 14g stainless steel spokes, WTB STp i23 TCS double wall rims
Tires
Continental Race King, 29" x 2.2", 60tpi
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 180mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic disc 3 finger levers
Cockpit
Stem
6061 aluminum, +/- 6 degree rise, 31.8mm clamp
Handlebar
Oval Concepts riser bar, 6061 alloy, 15mm rise, 5 degree sweep, 31.8mm clamp
Grips
Oval Concepts 634 Trail, single LO, dual density Kraton
Headset
1 1/8"-1.5", Zero Stack, semi-cartridge bearings
Seat
Saddle
Oval Concepts 238 Trail, steel rail
Seatpost
Oval Concepts, 6061 alloy micro adjust, 30.9mm diameter
Motor & Battery
Motor
Bafang M400 MAX Drive, mid-motor, 250W rated power, 20mph maximum assist
Battery
Fuji Power Pack 417Wh w/ 2A charger
Remote
Bafang 5 mode LED display w/ walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.52 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 664 mm | 687 mm | 707 mm | 723 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 87 mm | 89 mm | 85 mm | 89 mm |
| Stack | 629 mm | 640 mm | 638 mm | 648 mm |
| Reach | 399 mm | 422 mm | 438 mm | 455 mm |
| Top Tube Length | 596 mm | 621 mm | 636 mm | 656 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 483 mm | 532 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 125 mm | 125 mm | 135 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1120 mm | 1144 mm | 1164 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 693 mm | 733 mm | 764 mm | 805 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 161 cm | 165 cm | cm |
| Rider Max Height | 162 cm | 166 cm | 171 cm | cm |
Model Overview
E-Nevada 29 1.1 USA completes the Fuji E E Nevada model. There are 5 e-bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Fuji E-Nevada 27.5 2.1 2019 is the most affordable e-bike of this model and has a price of 1499$. On the other hand, Fuji E-Nevada 29 1.1 USA 2019, is the most expensive and costs 2699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2019 and its price was 2699$. Doing a quick comparison, we notice that E-Nevada 29 1.1 USA price is 10.03% more expensive than the average cost of a Crosscountry e-bike.
E-Nevada 29 1.1 USA components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the E-Nevada 29 1.1 USA e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
